RADWIN2000+SeriesUserManual Release4.2.40 4‐37

LightningProtectionUnit(LPU)forCAT‐5eCables

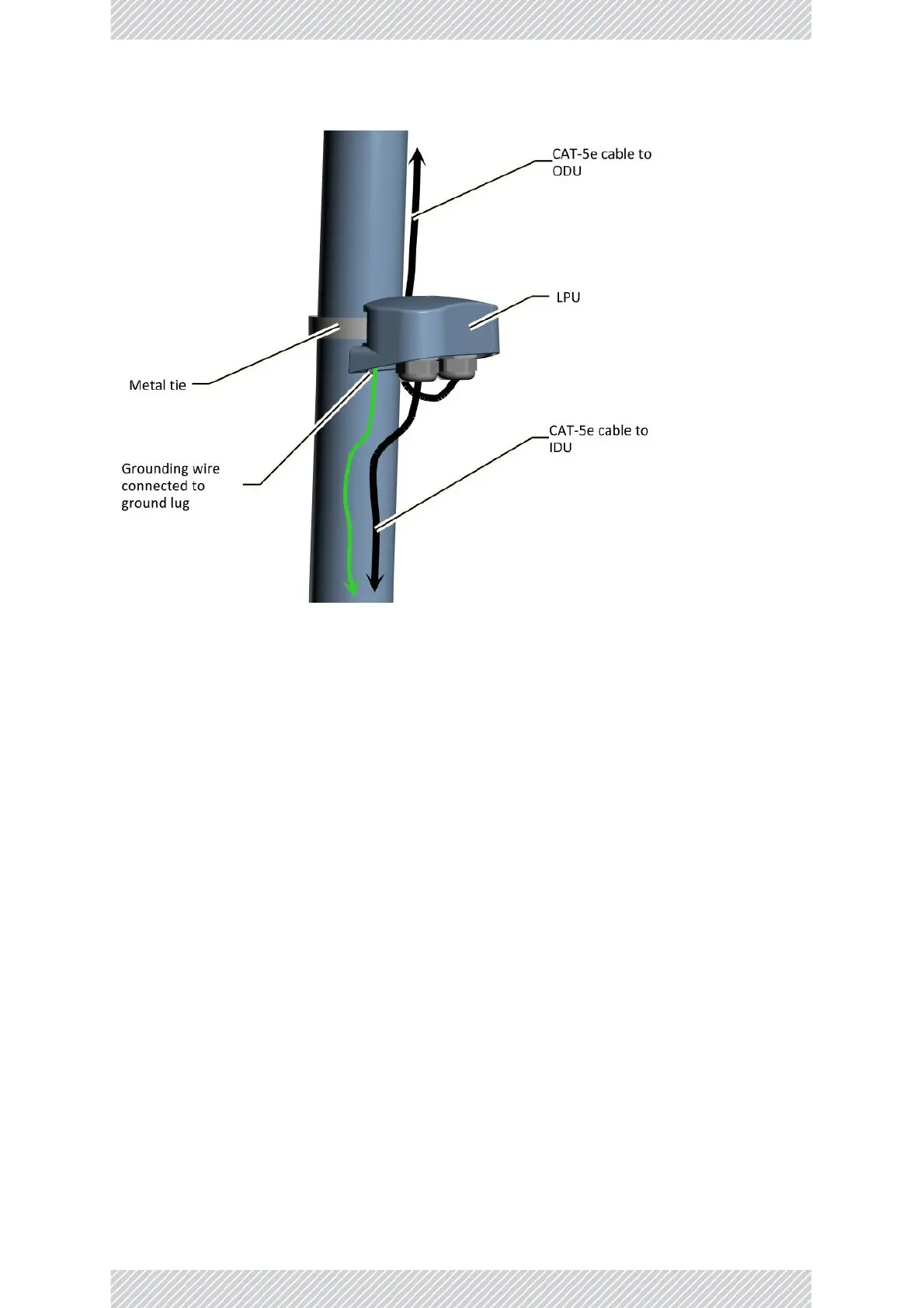

Figure4‐53:InstallinganLPUonapole(sideview)

 ToinstallanLPUonawall:

1. Removethegroundinglug.

2. A ttachtheLPUtothewallusingwoodormasonryscrews(notincluded),viathe

holesasshowninFigure 4‐54.

3. Connecttheleftscrew(wherethegroundinglugwaslocated)toagroundsource.

4. Removethecableglands.

5. ThreadtheCAT‐5ecablesthroughthecableglands,andconnectthecablestothe

LPUasshowninFigure 4‐51.

6. TightenthecableglandsaroundtheCAT‐5ecablesasshowninFigure 4‐52.

7. RouteoneCAT‐5euptotheODU(viatheupperLPU),andtheothertotheIDUor

PoE.

8. RADWINrecommendsthatyouaddextrawaterproofingtotheconnections

(seeAdditionalConsiderationsforWaterproofingonpage 4‐38).
