12.4GHSSfortheRADWIN2000i
12.4.1Overview
TheRADWIN2000ihasaninternalGPSunit.GHSSwithaninternalGPSunitcanbeillustrated
asfollows:


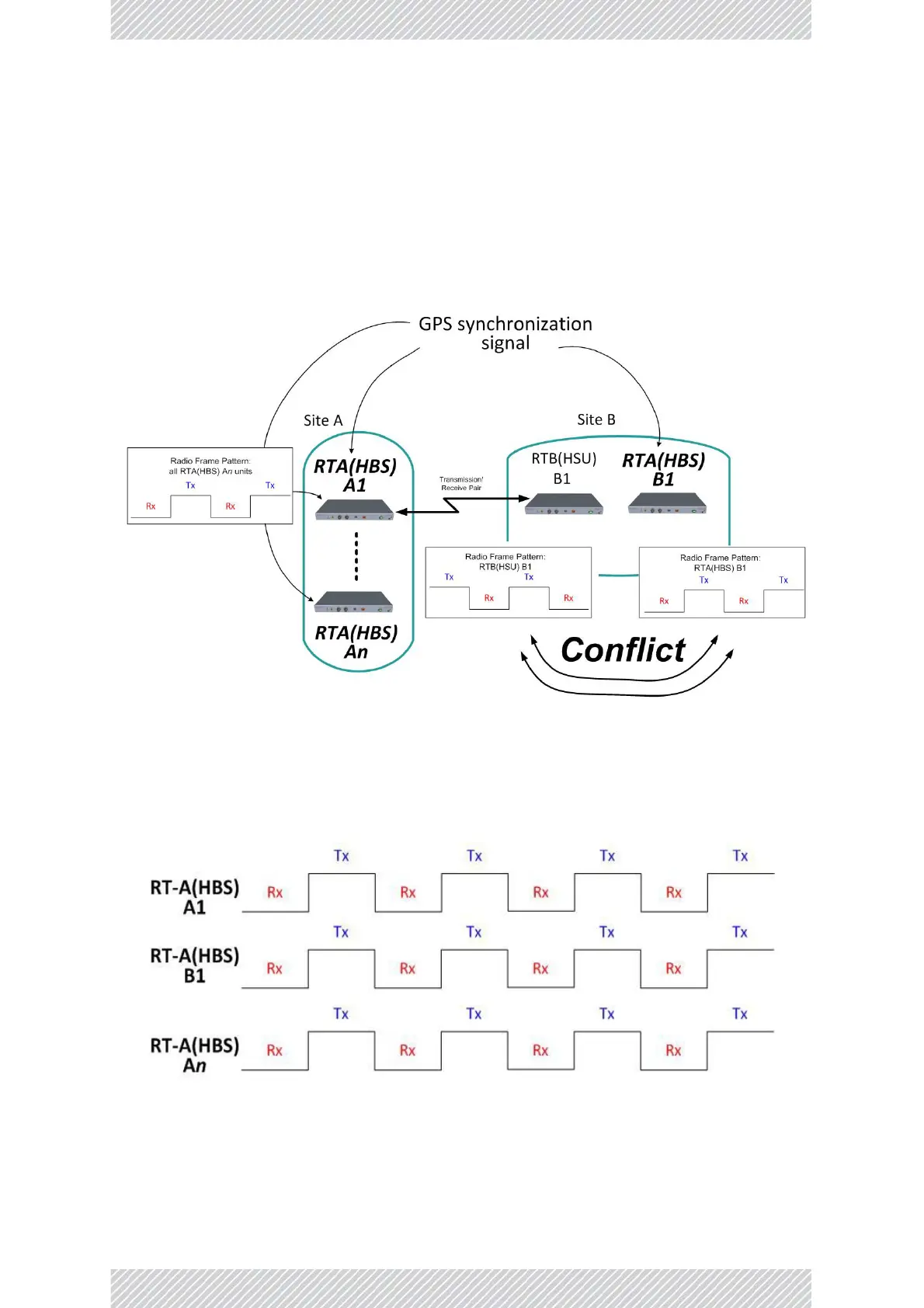

Figure12‐5:GHSSwithmultiplesites
AGPSsynchronizationsignalarrivesfromtheGPSsatellitesystemtoallRT‐A(HBS)units.The
signalinstructsallunitstoreceiveandtransmitatthesametime.TheRadioFramePattern
appearsasfollows:
