RADWIN2000+SeriesUserManual Release4.2.40 19‐11
RunningtheLinkBudgetCalculator

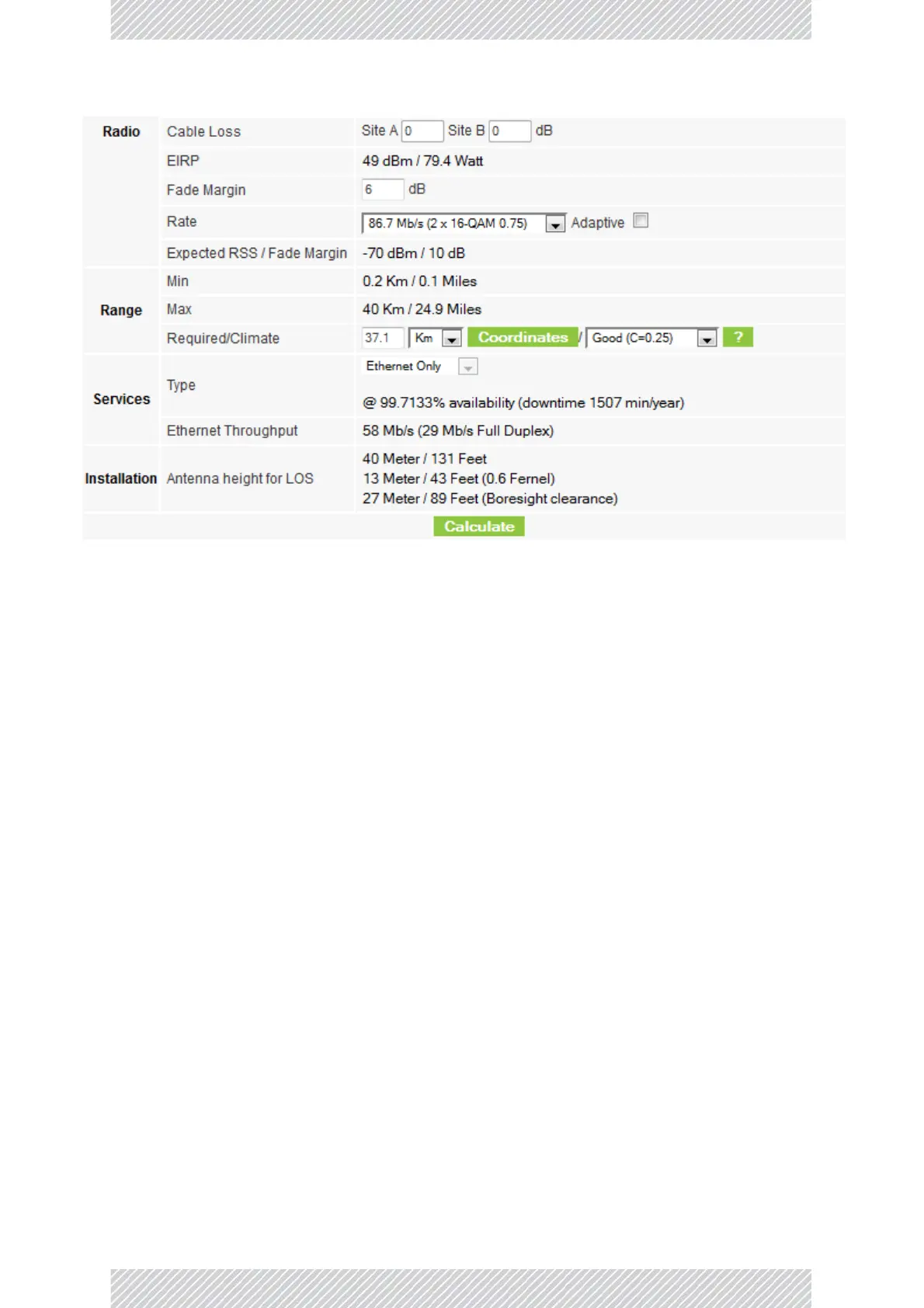

Figure19‐9:LBC‐Resultssection
TheExpectedPerformanceparametersarecalculatedanddisplayed:
•ExpectedRSS‐theexpectedRSSthattheRADWINManagershowswhentheRADWIN
2000+Seriesradiounitsareoptimallyaligned
•ServicesType‐Ethernetonly
•EthernetRate‐maximumthroughputavailableforthechosenparametercombination
• AntennaheightforLOS–theminimumantennaheightrequiredforline‐of‐sightopera‐
tion.Itisthesumoftheheightrequiredforboresightclearanceduetotheearth’scur‐
vatureplustheheightrequiredtocleartheFresnelzone
Iftheexpectedperformanceisnotsuitableforyourapplication,trydifferentparametersand
repeatthecalculation.
