Radwin 2000+ SERIES User Manual

RADWIN2000+SeriesUserManual Release4.2.40 6‐10
ActivatingtheRT‐A(HBS)
ThechoiceofTxPower,antennagainandcableloss(betweentheradioandthe
antenna)determinestheEIRPandisaffectedbysuchconsiderationsasradiolimita‐
tionsandregulatoryrestrictions.
Beforecompletingantennainstallation,youmightliketoconsiderthebackground
informationaboutsettingantennaparameters,inSettingAntennaParameters.

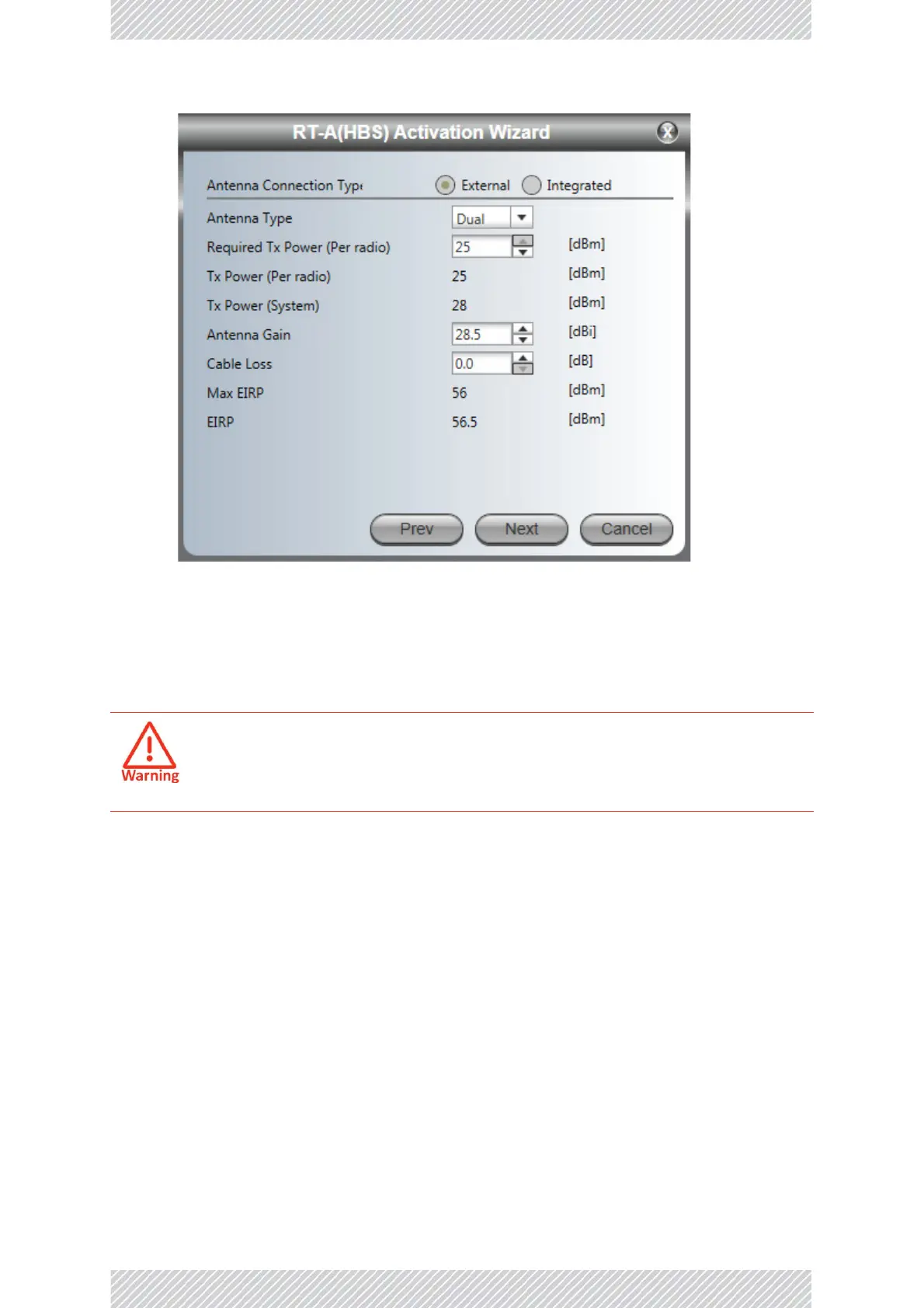

ChooseyourAntennaType,RequiredTxPower,AntennaGainandCableLoss.We
willsetRequiredTxPowerto5dBmforourexample.ClickNext.
11. TheSummarywindowoftheWizardisdisplayed.
WhensettingRequiredTxPower,itisyourresponsibilitytochoseavalue
incompliancewithyourlocalregulations.

Radwin 2000+ SERIES Specifications

General

Frequency Bands	5.4 GHz, 5.8 GHz
Channel Bandwidth	5 MHz, 10 MHz, 20 MHz
Encryption	AES-128
Interface	Ethernet
Operating Temperature	-30°C to +60°C
IP Rating	IP67
