Ricoh LDD280 - Reassembling the Master Pick-Up Roller Drive Gears

MASTER EJECT SECTION
SM 3-27 C262/C265
Replacement
Adjustment
3.6.6 REASSEMBLING THE MASTER PICK-UP ROLLER DRIVE
GEARS
Purpose: When the master pick-up roller drive sector gear [A] or master eject
clamper drive arm [B] have been removed, they must be re-installed in the correct
position.
1. The master eject clamper drive arm [B] must be flush with the cutout in the
frame, as shown.
2. While you hold the arm in the above position, install the sector gear [A]. The
small positioning hole in the sector gear must exactly overlap the positioning
hole in the frame, as shown.

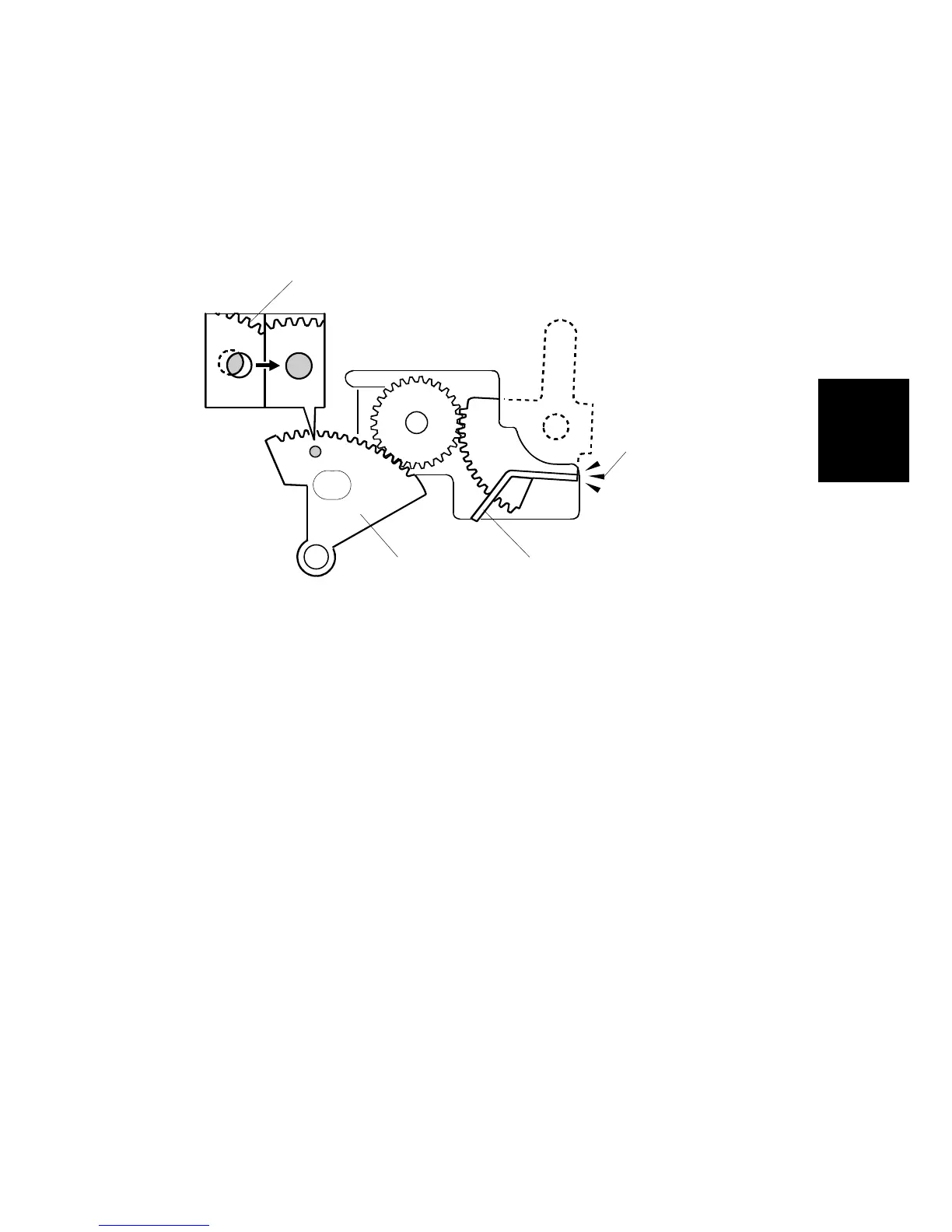

C262R027.WMF
[A] [B]
1. The position hole in the gear must
overlap the positioning hole in the frame.
2. This edge must
be flush with the
cutout.
