Ricoh LDD280 - Lower Registration Roller

PAPER FEED SECTION
SM 3-93 C262/C265
Replacement
Adjustment

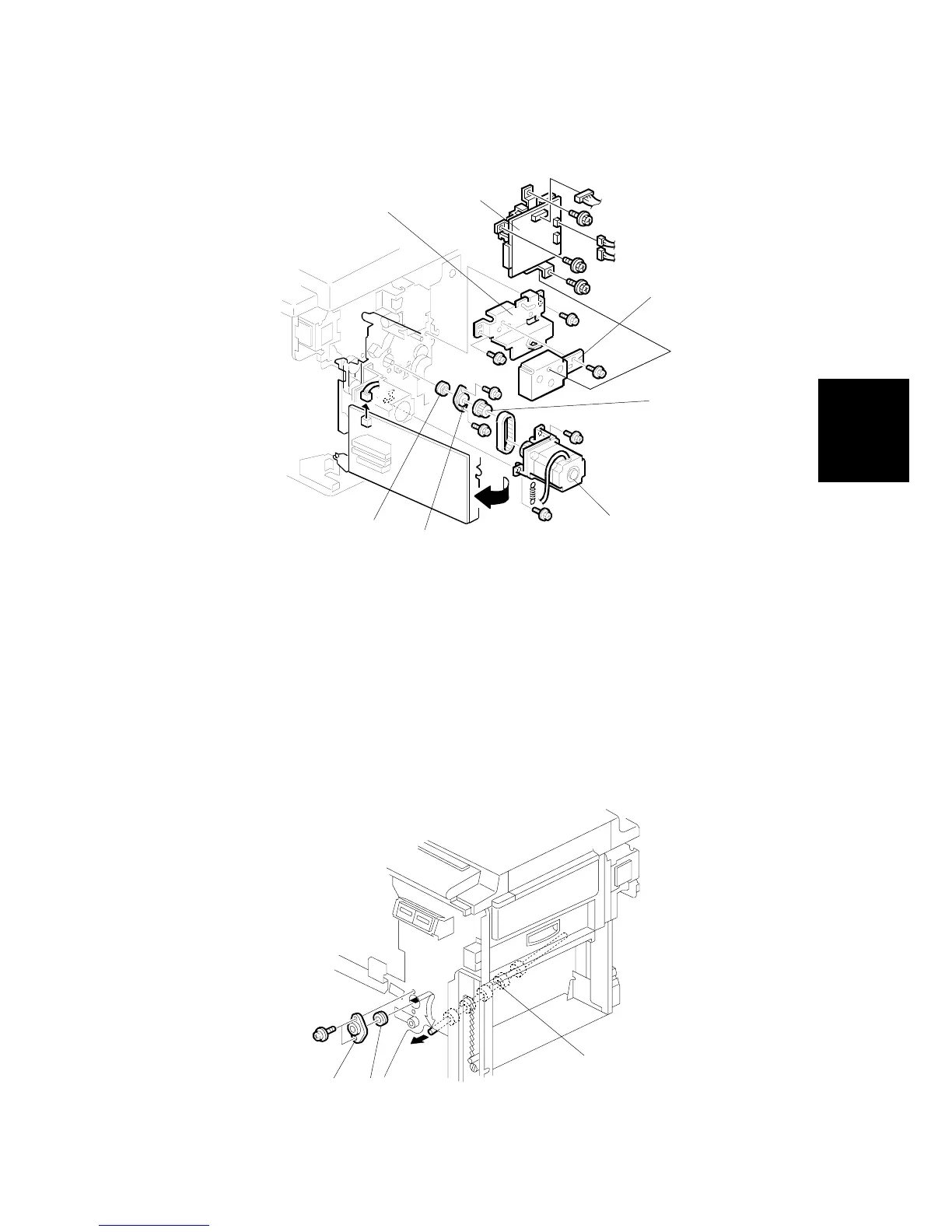

3.9.12 LOWER REGISTRATION ROLLER
• Front cover, Knob cover, Inner cover ( 3.2.1)
• Rear cover, Right rear cover, Right front cover ( 3.2.2)
• Open out the ACU - ECU assembly ( 3.5.1)
• Pressure cylinder ( 3.10.1)
[A]: Double feed detector board ( x 3,  x 3)
[B]: Pulley cover ( x 1)
[C]: Lifting cam bracket ( x 2)
[D]: Registration motor ( x 2,  x 1)
[E]: Pulley (Allen screw x 2)
[F]: Bearing holder ( x 2)
[G]: Bearing
C262R090.WMF
C262R091.WMF
[B]
[C]
[D]
[E]
[F]
[H] [I]
[G]
[J]
[A]
