DRUM SECTION
C262/C265 3-64 SM
3.8.4 MOTORS AND SENSORS IN THE DRUM
• Drum cloth screen ( 3.8.2)
• Drum clamper ( 3.8.3)
• Metal screen ( 3.8.3)

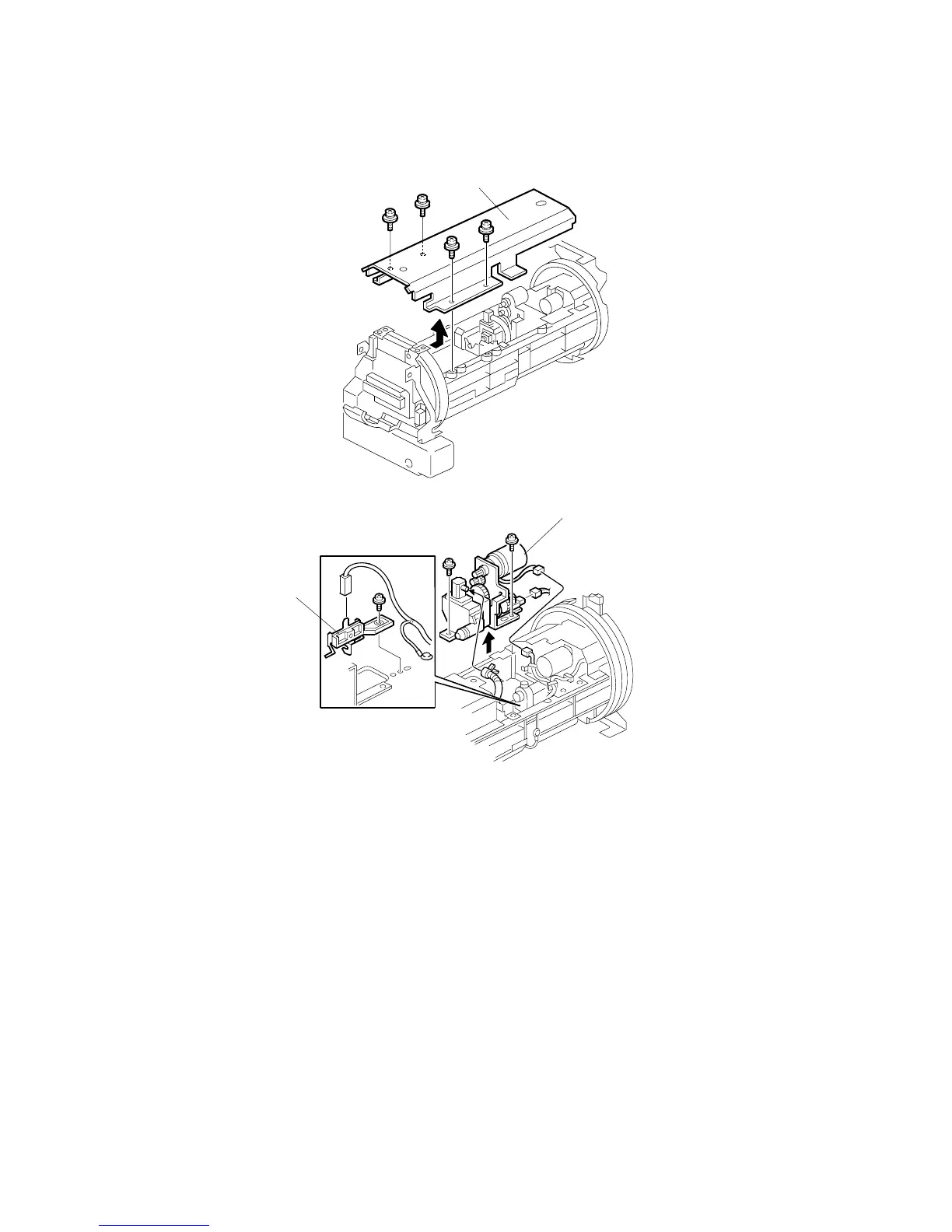

1. First, pull out the ink cartridge holder.
[A]: Ink cartridge cover ( x 4)
[B]: Ink pump unit ( x 3,  x 1)
[C]: Ink detection pin ( x 1,  x 1)
C262R164.WMF
C262R063.WMF
[B]
[C]
[A]
