PAPER FEED SECTION
SM 3-81 C262/C265
Replacement
Adjustment
3.9.3 PAPER WIDTH DETECTION BOARD

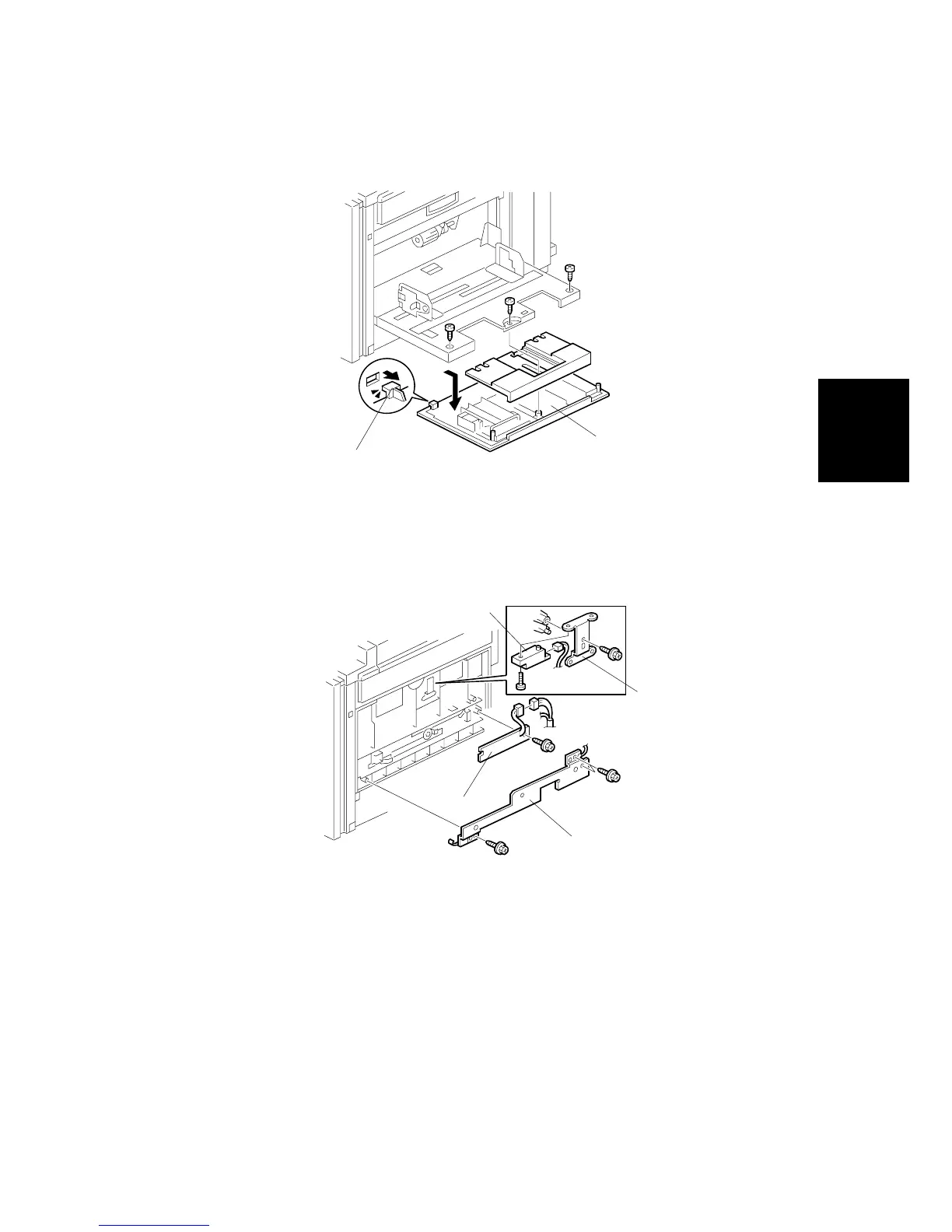

[A]: Paper table rear cover ( x 3)
NOTE: Carefully push out the two hooks [B] with a screwdriver.
[C]: Paper width detection board bracket ( x 3)
[D]: Paper width detection board ( x 1,  x 1)
[E]: Paper length sensor bracket ( x 1)
[F]: Paper length sensor ( x 1,  x 1)
