Ricoh LDD280 - Main Drive

MECHANISM OVERVIEW
C262/C265 6-12 SM
Main Drive

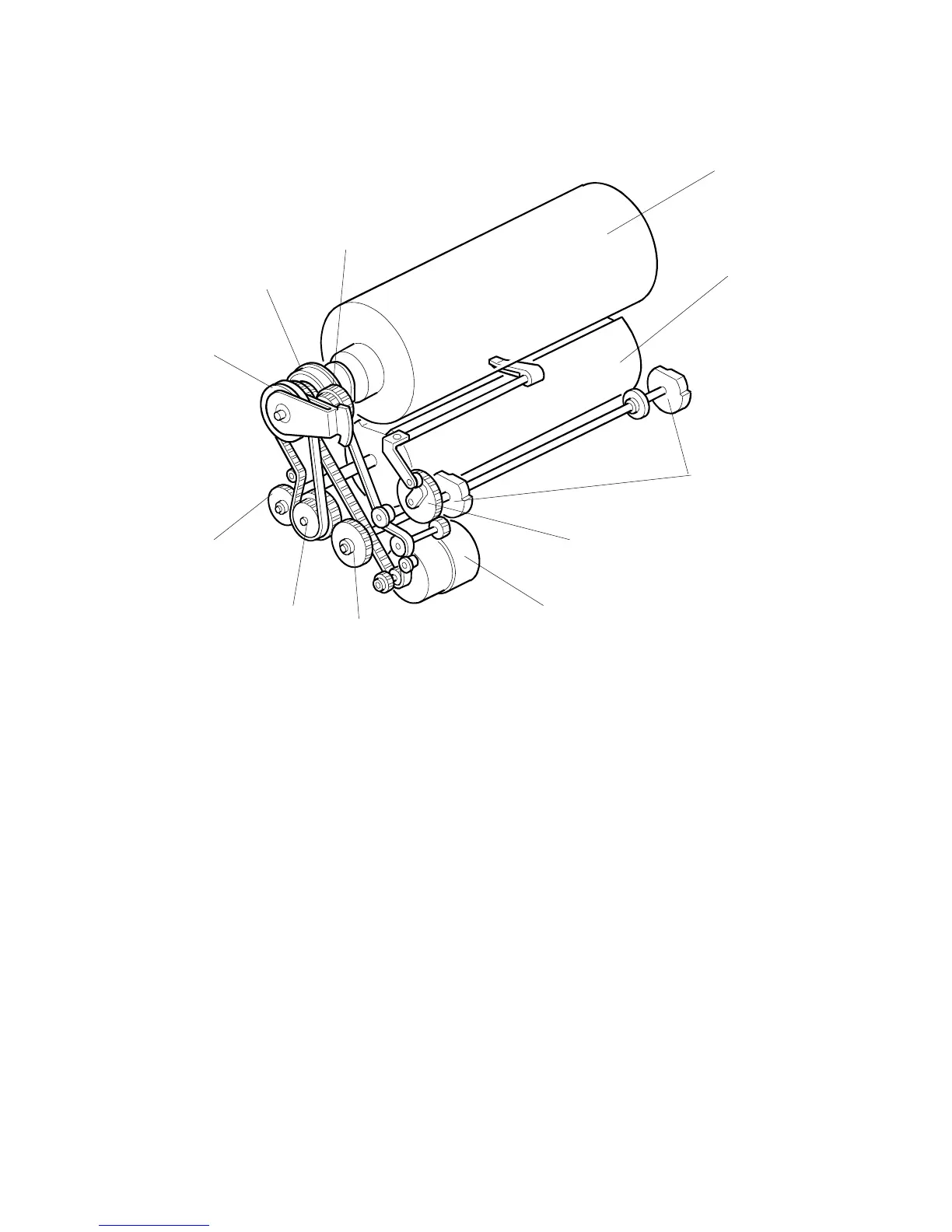

18. Drum 24. Idler Gear/Pulley
19. Pressure Cylinder 25. Pressure Cylinder Drive Gear
(Including the Scissors Gear)
20. Printing Pressure Cam 26. Primary Gear/Pulley
21. Exit Pawl Drive Cam Gear 27. Drum Drive Gear/Pulley
22. Main Motor 28. Image Shift Gear
23. Printing Pressure Cam Drive Gear
