Ricoh LDD280 - Feed Pressure Motor, Feed Pressure Detection Board

PAPER FEED SECTION
SM 3-83 C262/C265
Replacement
Adjustment
3.9.5 FEED PRESSURE MOTOR, FEED PRESSURE DETECTION
BOARD
• Master making unit ( 3.7.1)
• Feed cover ( 3.9.4)
• Open out the ACU - ECU assembly ( 3.5.1)
• Double feed detector board ( 3.5.4)
[A]: Rear rail bracket ( x 3)
[B]: Feed pressure detection board ( x 2,  x 1)
[C]: Feed pressure motor bracket ( x 2,  x 1)
[D]: Feed pressure motor ( x 2)

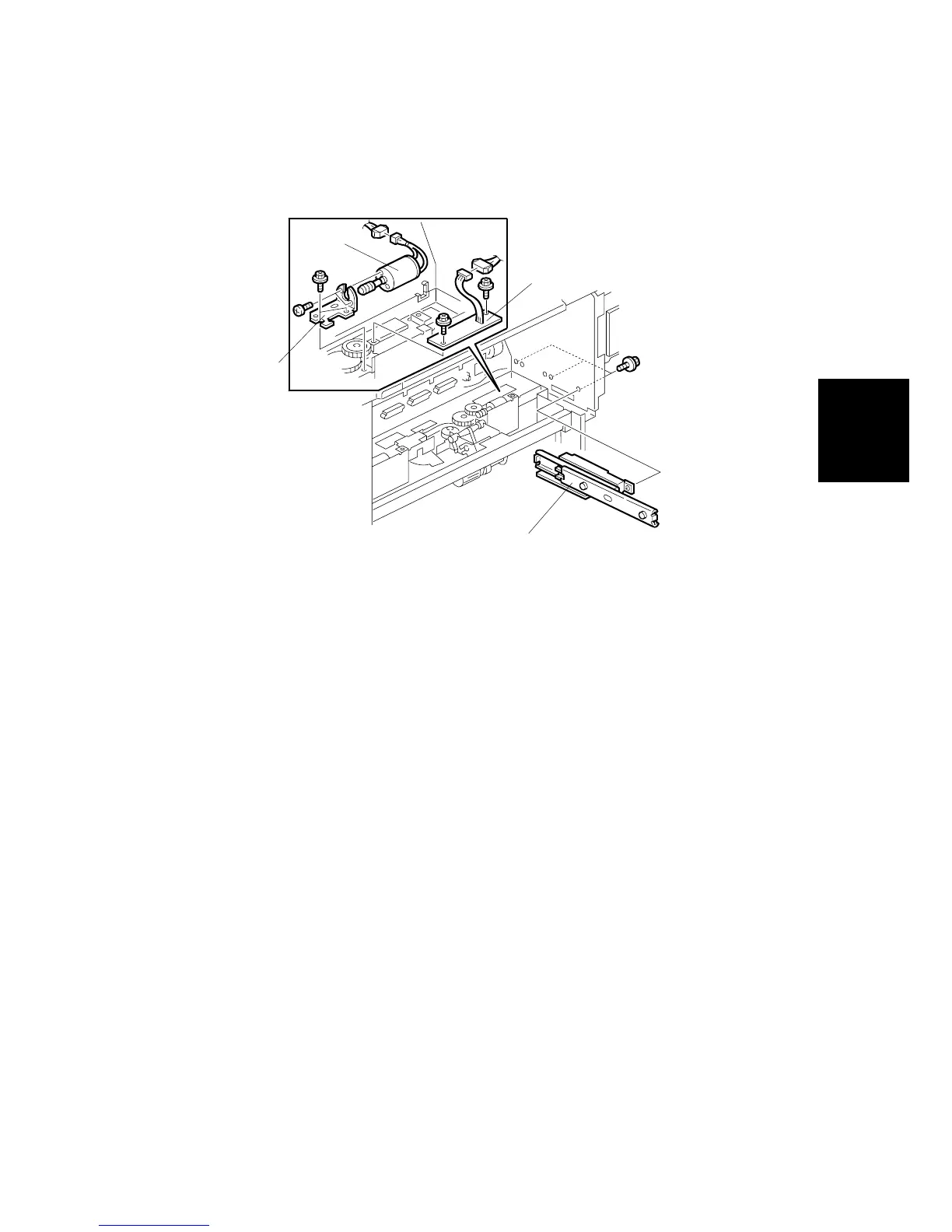

C262R079.WMF
[A]
[B]
[C]
[D]
