DRUM SECTION
C262/C265 3-68 SM

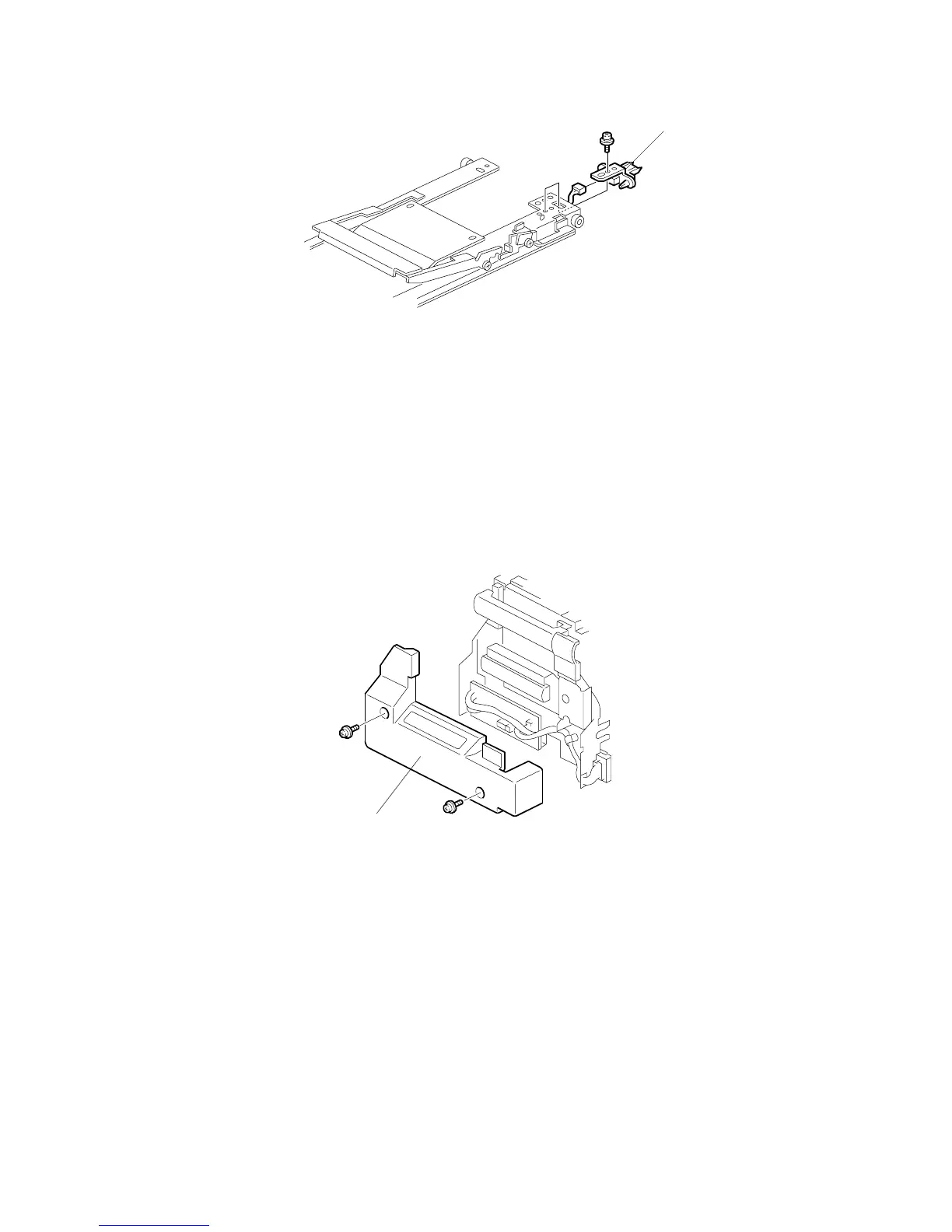

[D]: Ink ID detection/Ink flow sensor connector ( x 1, x 1)
3.8.6 INK ROLLER GAP ADJUSTMENT
Purpose: To ensure that ink on the ink roller spreads evenly on the drum screen.
1. Take out the drum unit from the machine.
2. Remove the drum front cover [A] ( x 2).
3. Remove the drum cloth and metal screens from the drum unit. ( 3.8.2)
4. Wipe off the ink around the ink roller and the doctor roller.
C262R166.WMF
C262R154.WMF
[A]
[D]
To Next Page
