PAPER FEED
C262/C265 6-88 SM
6.8.7 REGISTRATION ROLLER PRESSURE RELEASE
MECHANISM

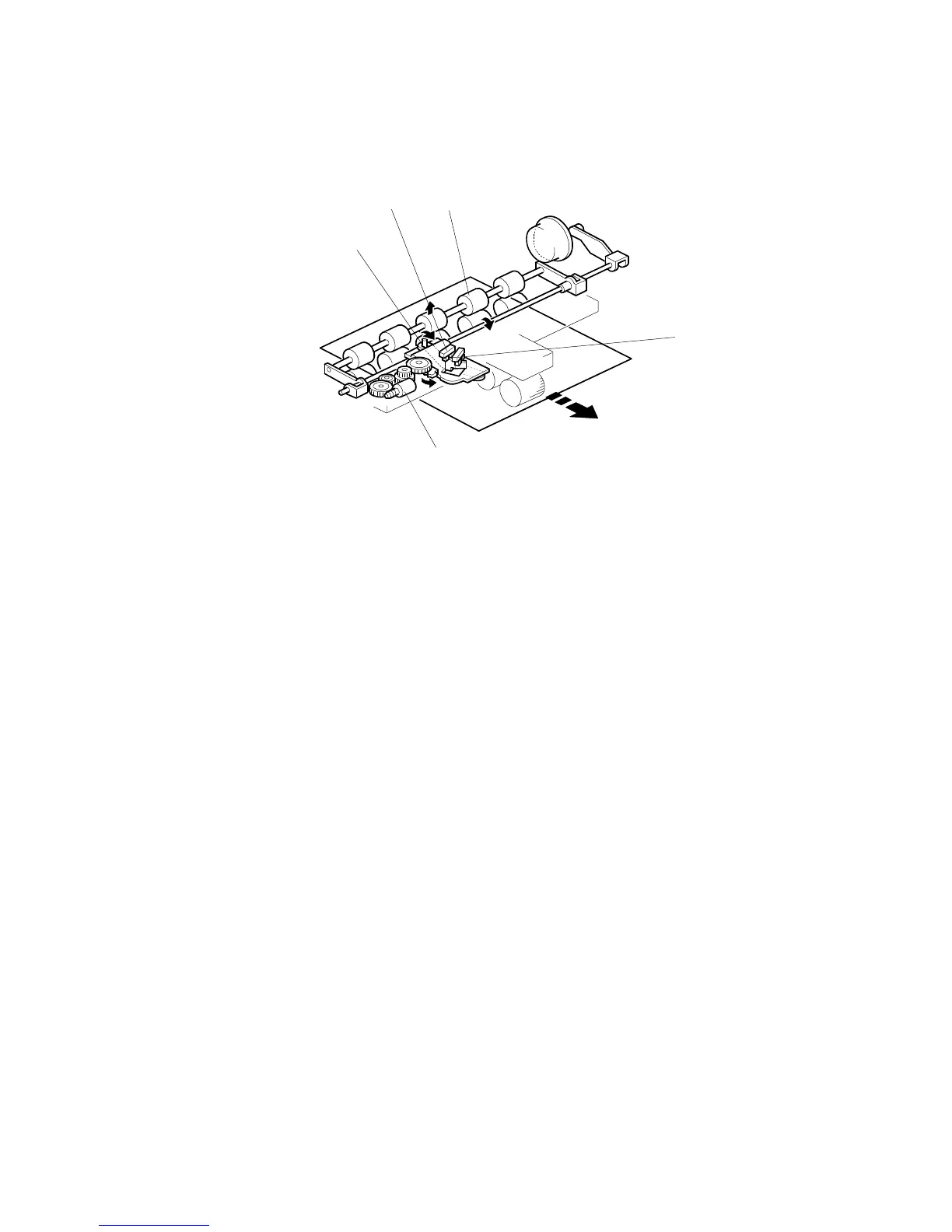

When a jam occurs at the paper registration roller [A], the pressure of the
registration roller will be released so that the jammed paper can be removed easily.
The registration press motor [B] turns and pushes down the pin [C]. This releases
the pressure of the registration roller.
The registration roller press sensor [D] detects when the registration roller is in the
correct position for paper feed.
The registration roller release sensor [E] detects when the registration roller is in
the correct position for jam removal.
C262D079.WMF
[A]
[B]
[C]
[D]
[E]
