6.8.3 PAPER FEED/SEPARATION PRESSURE ADJUSTMENT
MECHANISM
Paper feed pressure

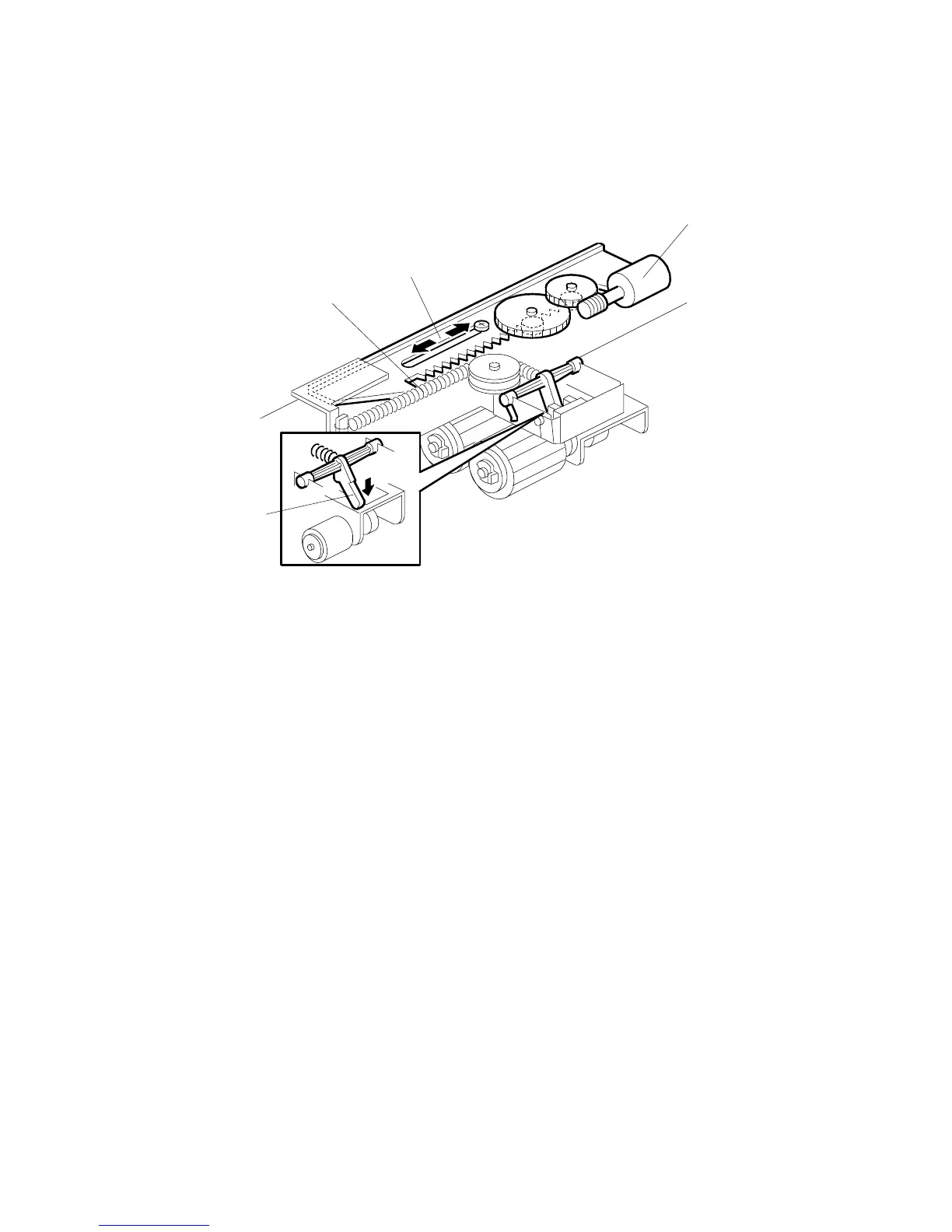

The feed pressure motor [A] rotates, pulling or releasing the spring [B] through the
rack [C]. The lever [D] moves up or down depending on the tension of the spring. If
the spring is pulled, the lever moves upwards, reducing the paper feed pressure.
The position of the rack [C] is detected by the feed pressure detection board (not
shown).
C262D071.WMF
[A]
[B]
[C]
[D]
