ERROR DETECTION
C262/C265 6-130 SM

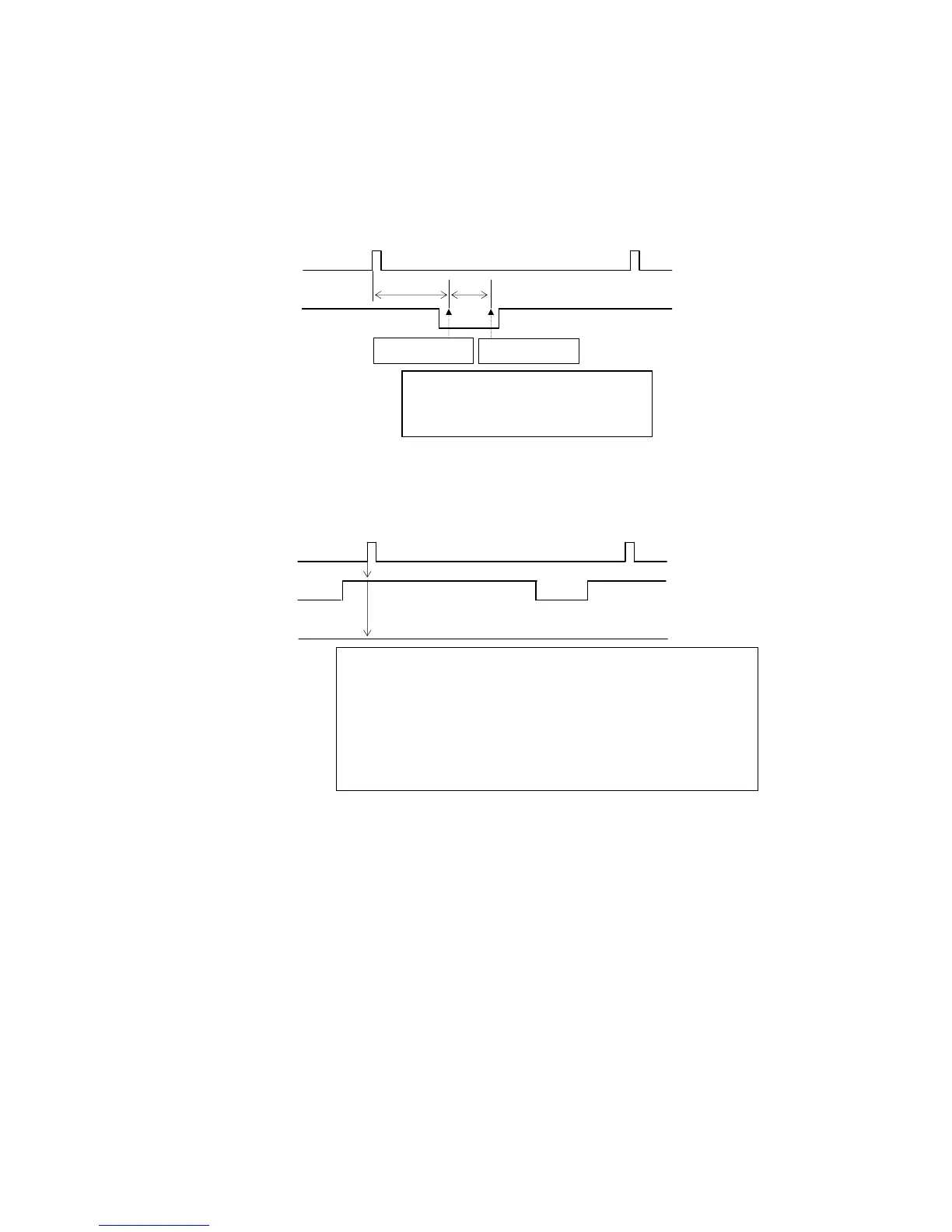

6.14.3 PAPER DELIVERY ERROR DETECTION
Paper Delivery Error
1st Drum Position
Sensor
Paper Exit Sensor
Paper Upper/Lower Wrapping Detection
Paper Feed Start
Sensor
Paper Exit Sensor
Lower Wrapping
Jam Sensor
The sensor status check when the feed start sensor turns on.
• The paper exit sensor is off, and the lower wrapping jam
sensor remains off
⇒ Paper jam wrapped around the drum
• Lower wrapping jam sensor is on:
⇒ Paper jam wrapped around the pressure cylinder
132°
7°
1st Check
2nd Check
Paper Exit Jam
At both 1st and 2nd checks, the
exit sensor is not on.
