Ricoh LDD280 - Thermal Head

MASTER FEED SECTION
C262/C265 3-32 SM

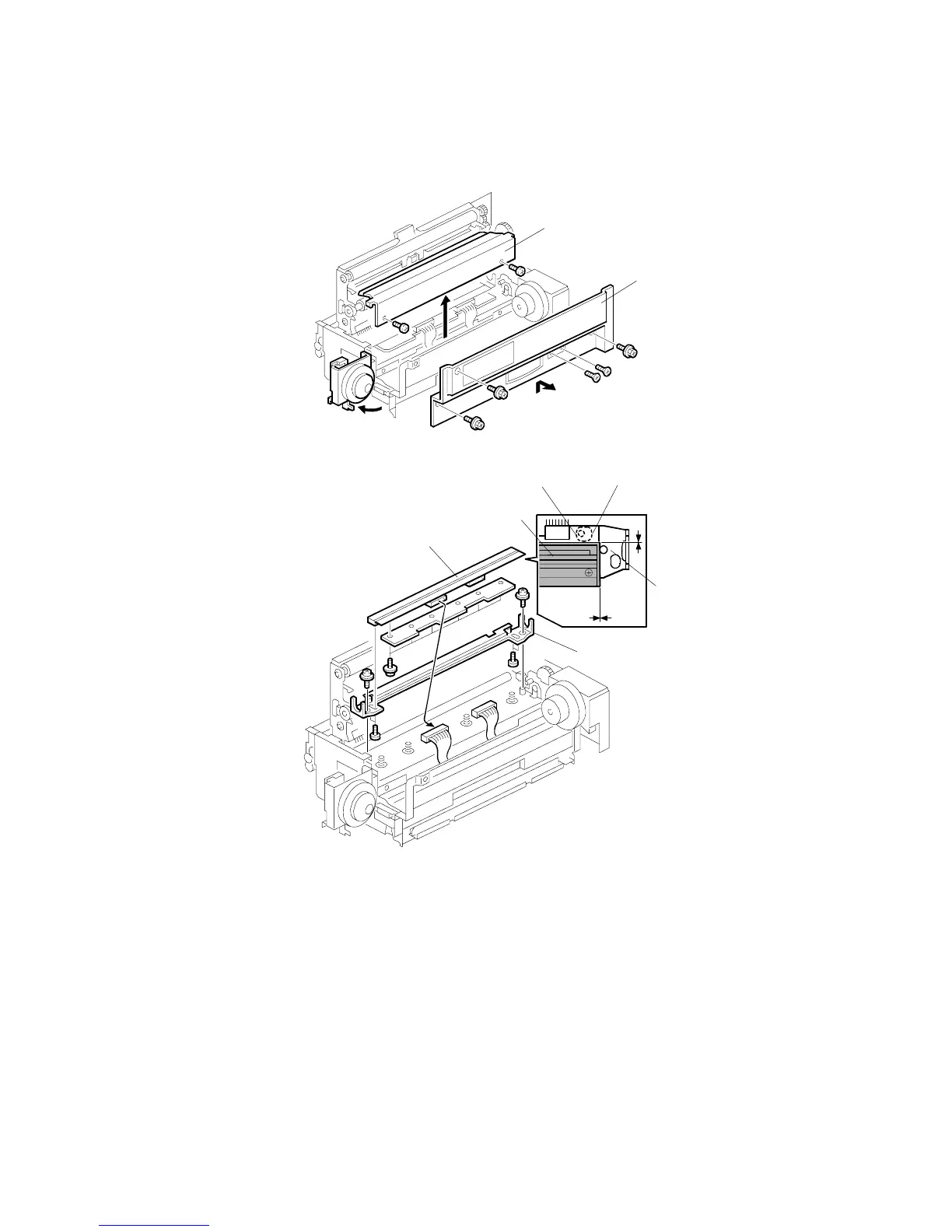

3.7.3 THERMAL HEAD
• Master making unit ( 3.7.1)
[A]: Master making unit right cover ( x 5)
[B]: Thermal head cover ( x 2)
[C]: Thermal head base ( x 2,  x 2)
[D]: Thermal head ( x 10)
C262R036.WMF
C262R035.WMF
[C]
[D]
[A]
[B]
0 to 0.1mm
0 to 0.1mm
[E]
[F]
[G]
[H]
