MASTER FEED
C262/C265 6-56 SM

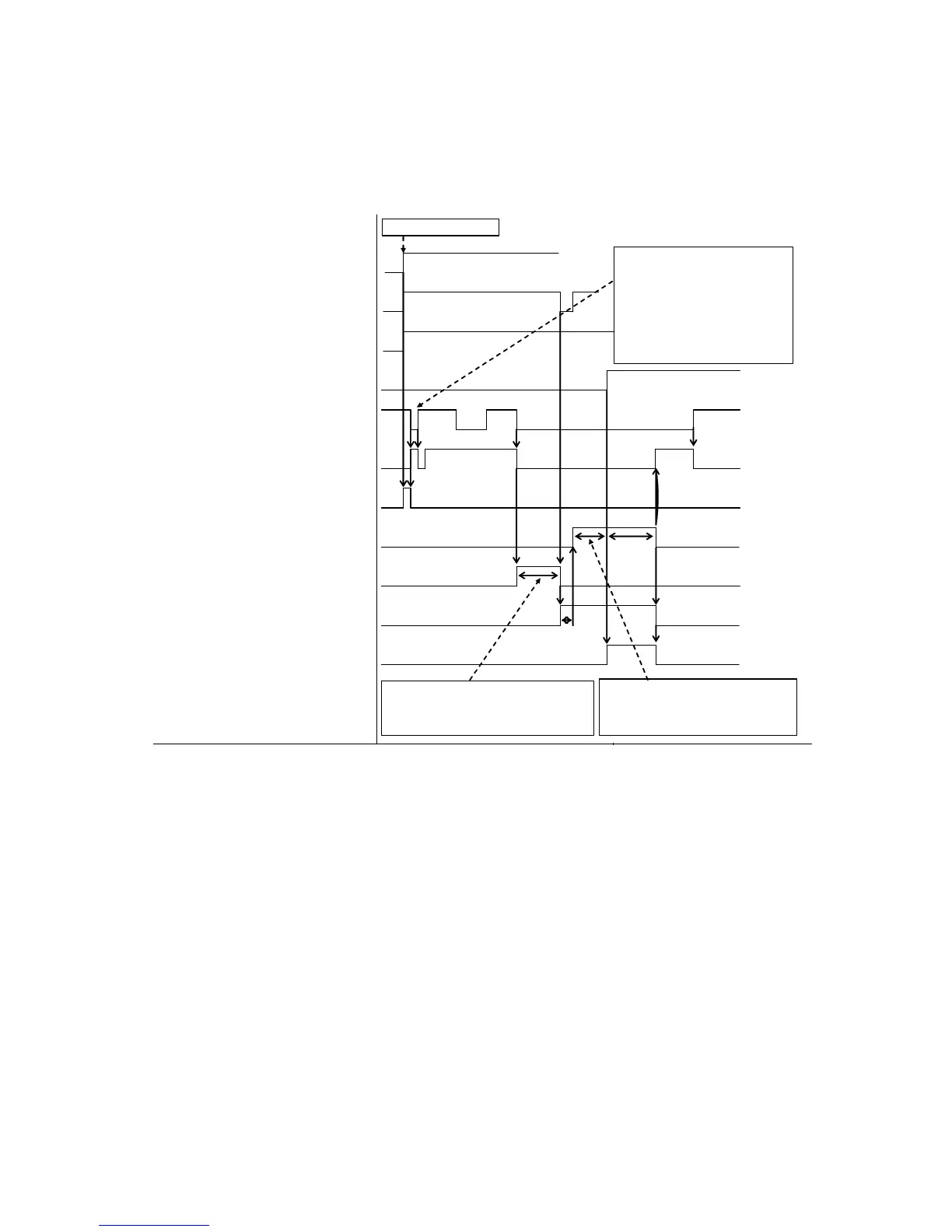

6.6.6 MASTER JAM, CUTTER ERROR, AND CLAMP ERROR
DETECTION
Master set error and misfeed
Master Making Unit Set Switch
Master Set Sensor
Master End Sensor
Master Edge Sensor
Platen Release Sensor
Platen Release Motor - forward
Platen Release Motor - backward
Master Feed Control Motor-forward
Master Feed Control Motor-backward
Duct Entrance Solenoid
Master Feed Motor
- First master misfeed check
The master set sensor does not turn off
after 5 seconds.
- Master set error
The master end sensor is on and
master set sensor is off, after platen
pressure is released.
*Master will feed for 10mm when
master set sensor is off
- Second master misfeed check
The master set sensor does not turn on
after 5 seconds.
21mm
Set Master making unit
1s
Press Release
Press
The machine detects a master with the master end and set sensors when a master
making unit is put in the machine. If there is a master roll in the master making unit,
the master is fed to the master making ready position. During this movement, the
master edge sensor checks for a jam. The same jam detection when preparing for
the next master making.
