PAPER DELIVERY
SM 6-123 C262/C265
Detailed
Descriptions
6.10.9 PAPER EXIT JAM DETECTION

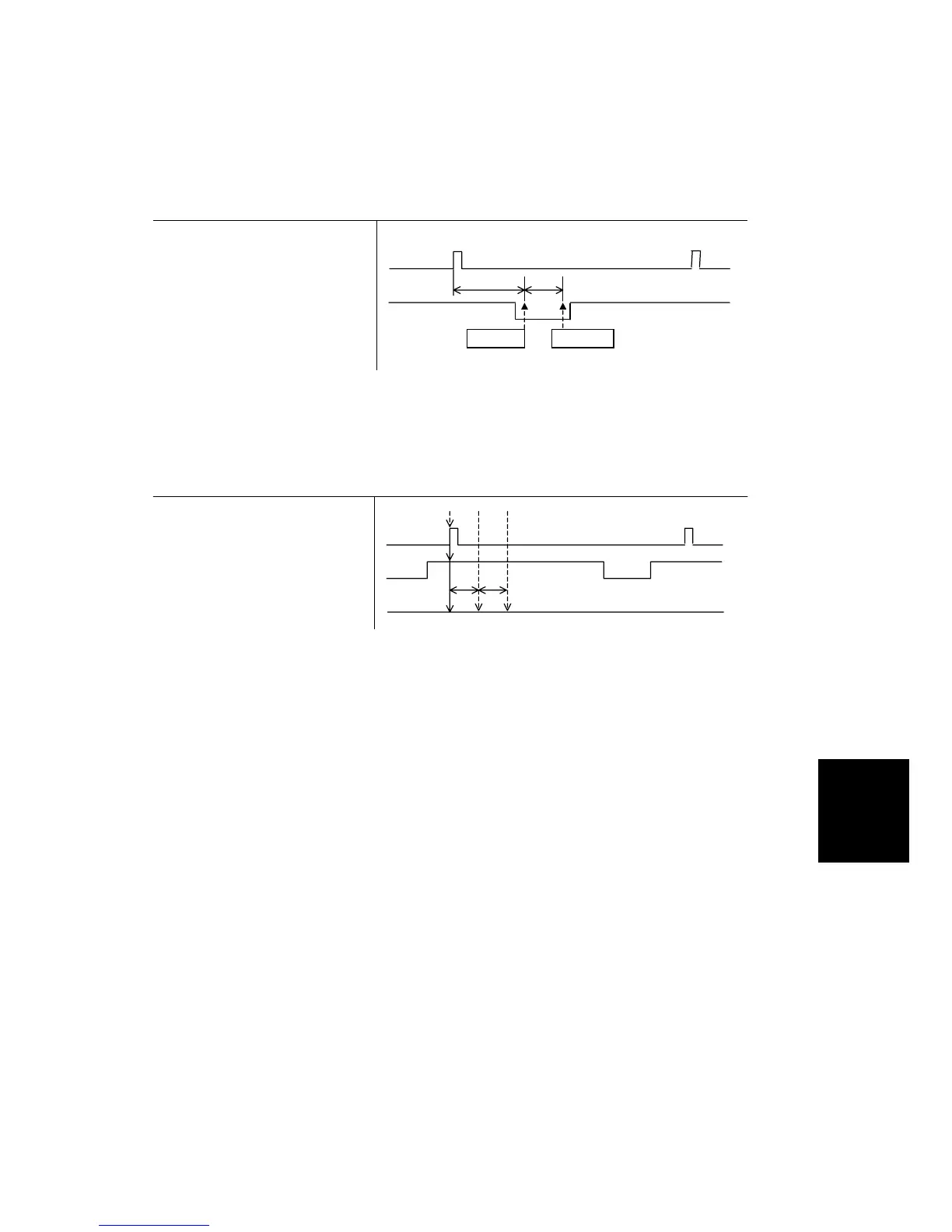

Paper exit jam (C jam)
1st drum position sensor
Paper exit sensor
132
7
1st check 2nd check
A paper exit jam occurs when the paper exit sensor detects the paper twice.
Upper and lower wrapping jam (B jam)
Feed start sensor
Paper exit sensor
Lower wrapping jam sensor
35 37
[A] [B] [C]
The machine checks for jams at three times.
• [A] Lower wrapping jam sensor is on: Lower wrapping jam
• [B] Paper exit sensor and lower wrapping jam sensor are off: Upper wrapping
jam
• Lower wrapping jam sensor is on at [A], [B] or [C]: Upper wrapping jam
