3.9.11 SEPARATION PRESSURE MOTOR, FRICTION PAD
POSITION SENSORS 1, 2
• Paper feed assembly ( 3.9.1)

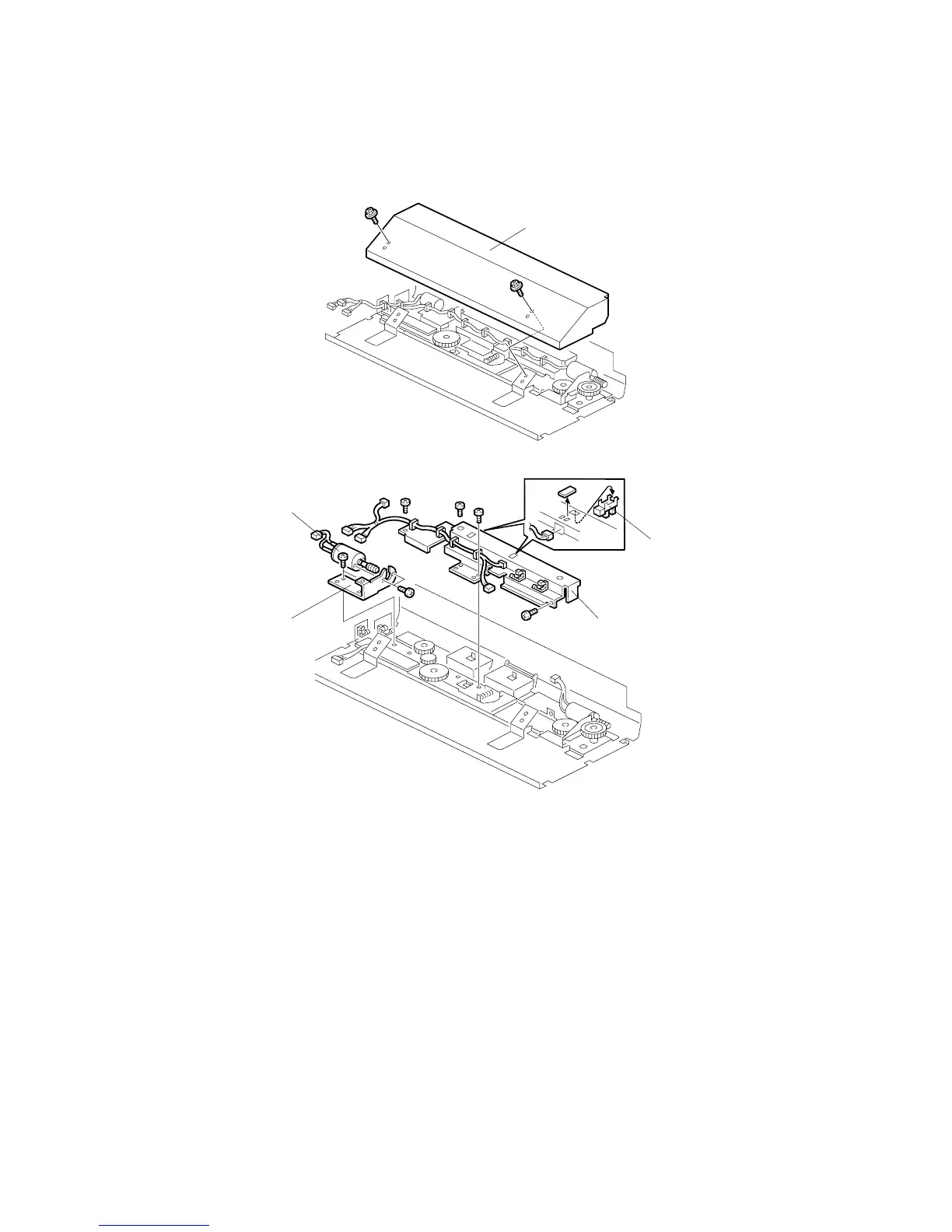

[A]: Friction pad unit cover ( x 2)
[B]: Friction pad position sensor bracket ( x 4,  x 3)
[C]: Friction pad position sensors 1, 2
[D]: Separation pressure motor bracket ( x 2,  x 1)
[E]: Separation pressure motor ( x 2)
C262R171.WMF
C262R088.WMF
[A]
[B]
[C]
[D]
[E]
