MECHANISM OVERVIEW
SM 6-1 C262/C265
Detailed
Descriptions
6. DETAILED SECTION DESCRIPTIONS
6.1 MECHANISM OVERVIEW
6.1.1 MAJOR PARTS

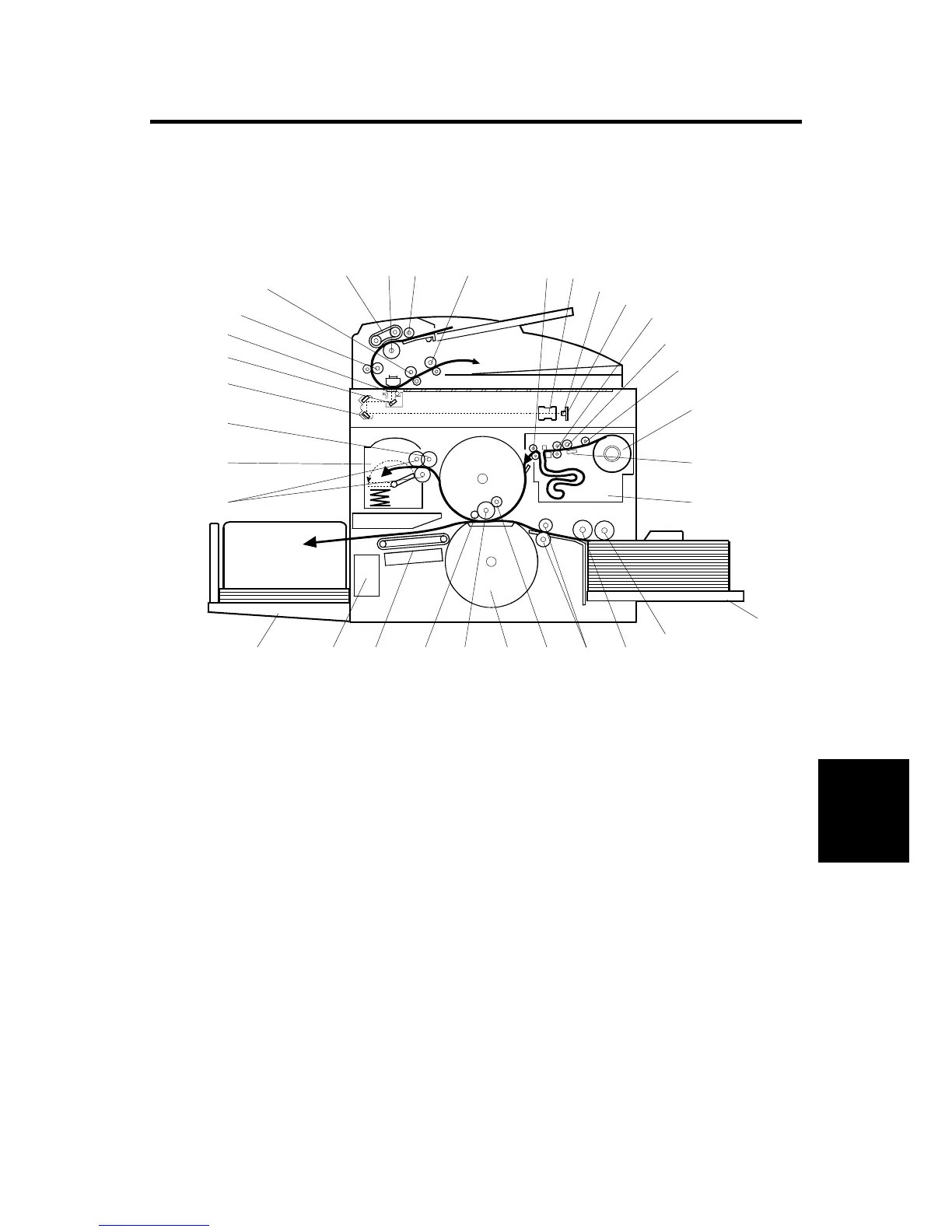

1. Master Feed Control Roller
2. Lens
3. CCD
4. SBU
5. Tension Roller
6. Platen Roller
7. Master Set Roller
8. Master Roll
9. Thermal Head
10. Master Buffer Duct
11. Paper Table
12. Paper Pick-up Roller
13. Paper Feed Roller
14. Registration Rollers
15. Doctor Roller
16. Pressure Cylinder
17. Ink Roller
18. Idling Roller
19. Transport Belts
20. Job Separator Unit
21. Paper Delivery Table
22. Master Eject Rollers
23. Master Eject Box
24. Master Pick-up Roller
25. 2nd Scanner
26. 1st Scanner
27. DF Exposure Glass
28. 1st Transport Roller
29. 2nd Transport Roller
30. Original Feed Belt
31. Separation Roller
32. Pick-up Roller
33. Original Exit Roller
C262D901.WMF
1 2
3
4
5
6
7
8
9
10
11
12
13141516171819 20 21
22
23
24
25
26
27
28
29
30 31 32 33
