6.14.8 ERROR DETECTION DURING MASTER MAKING

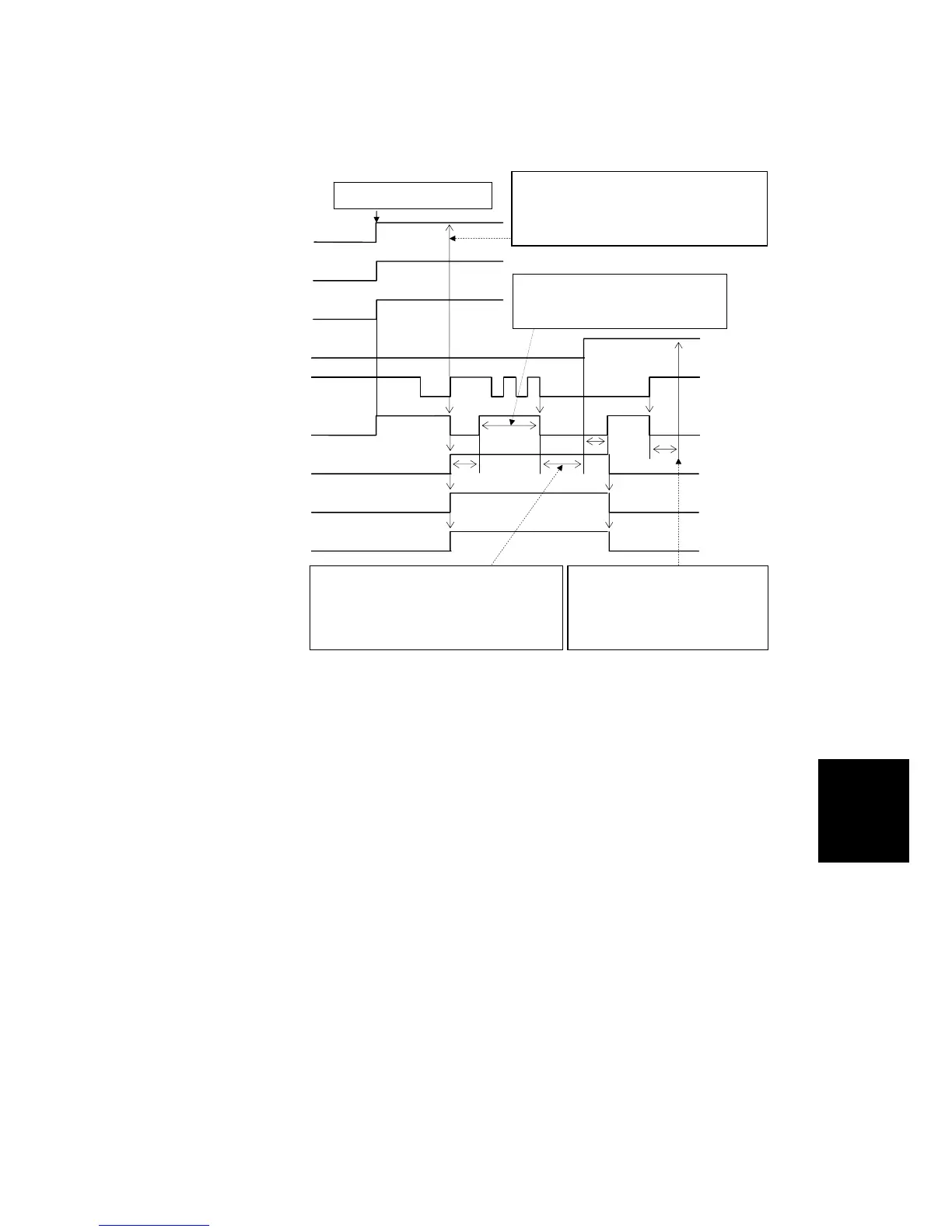

Master Set and Feed Error
Master Making Unit Set
Switch
Master Set Sensor
Master End Sensor
Master Edge Sensor
Platen Release Sensor
Platen Release Motor
Master Feed Motor
Duct Entrance Solenoid
Master feed Clutch
1st Check
The master edge sensor stays off
when 5 seconds has passed:
⇒ Master Feed Jam
Master Set Error Detection
• The master end sensor is on
• The master set sensor stays off
1.6 s
2nd Check
The master edge sensor
stays off:
⇒ Master Feed Jam
20 mm
500 ms
The unit has been set.
The motor turns off when 3
seconds has passed and the
