PAPER DELIVERY
C262/C265 6-116 SM
6.10.3 PAPER DELIVERY WING MECHANISM

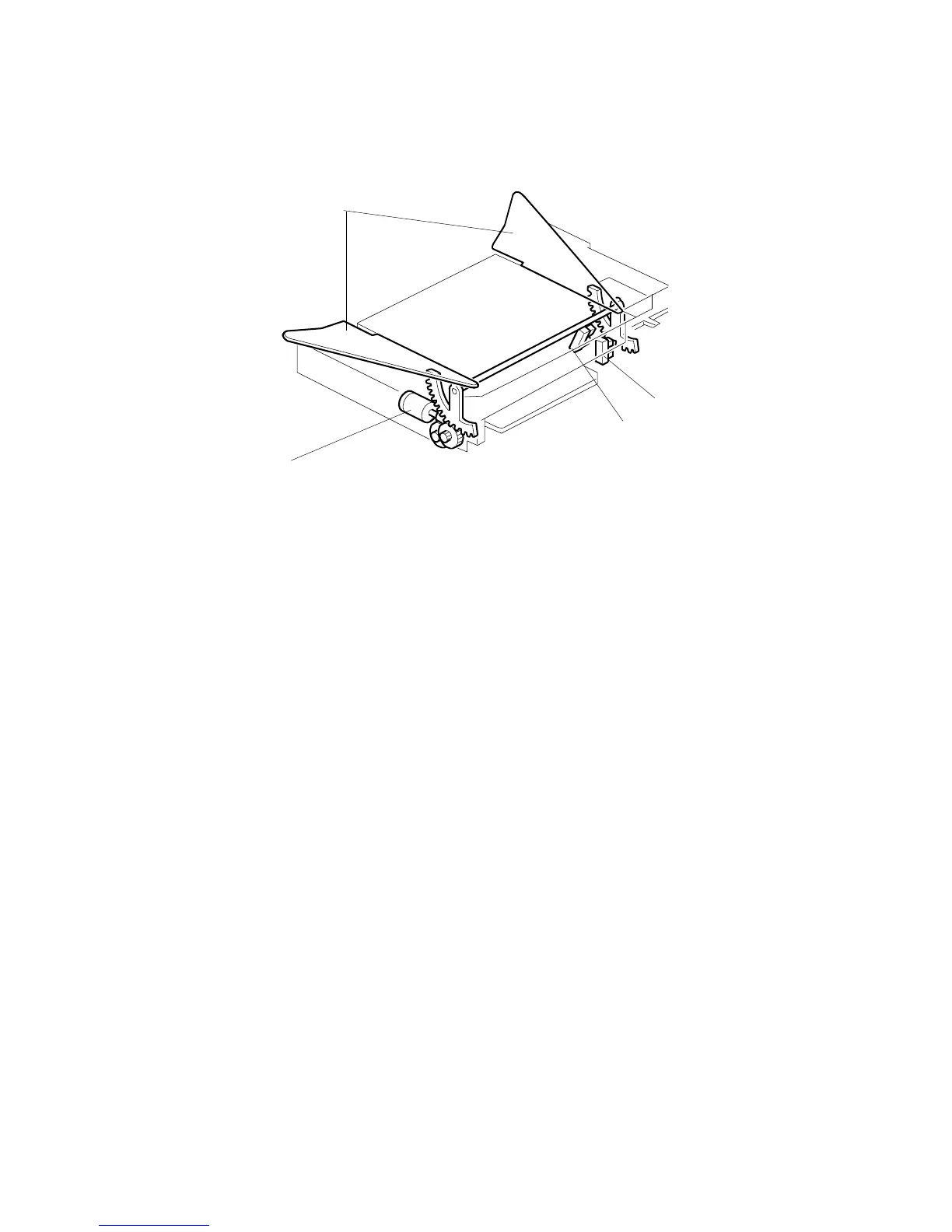

The paper guide wings [A] lift the side of the paper as it leaves the delivery unit.
This stiffens the paper so that the leading edge of the paper will not sag and brush
against the sheets on the delivery table. This prevents the ink on freshly printed
sheets from being smeared.
The angle of the paper wing guides can be changed automatically by the wing
guide motor [D], depending on the paper type selected by the operator at the
operation panel. When the paper type is changed, the motor automatically changes
the angle of the wing guides.
The paper types that can be selected are standard, thin, thick, and special. Two
additional settings for paper types can be customized as user 1 and user 2. The
angle of the paper guide wings for each paper type can be adjusted with SP mode
(SP6-13). In addition, the angle can be fixed for all paper types at the upper or
lower position with a user tool (System Settings – Mode Settings – Deflector Angle),
to override the SP6-13 setting.
The wing guide motor [D] moves the paper wing guides up or down through some
gears. The wing lower position sensor [C] and wing upper position sensor [B]
detect the high and low angle positions of the paper wing guides.
C262D114.WMF
[A]
[B]
[C]
[D]
