PAPER DELIVERY
SM 6-115 C262/C265
Detailed
Descriptions
Paper pick-off plate mechanism

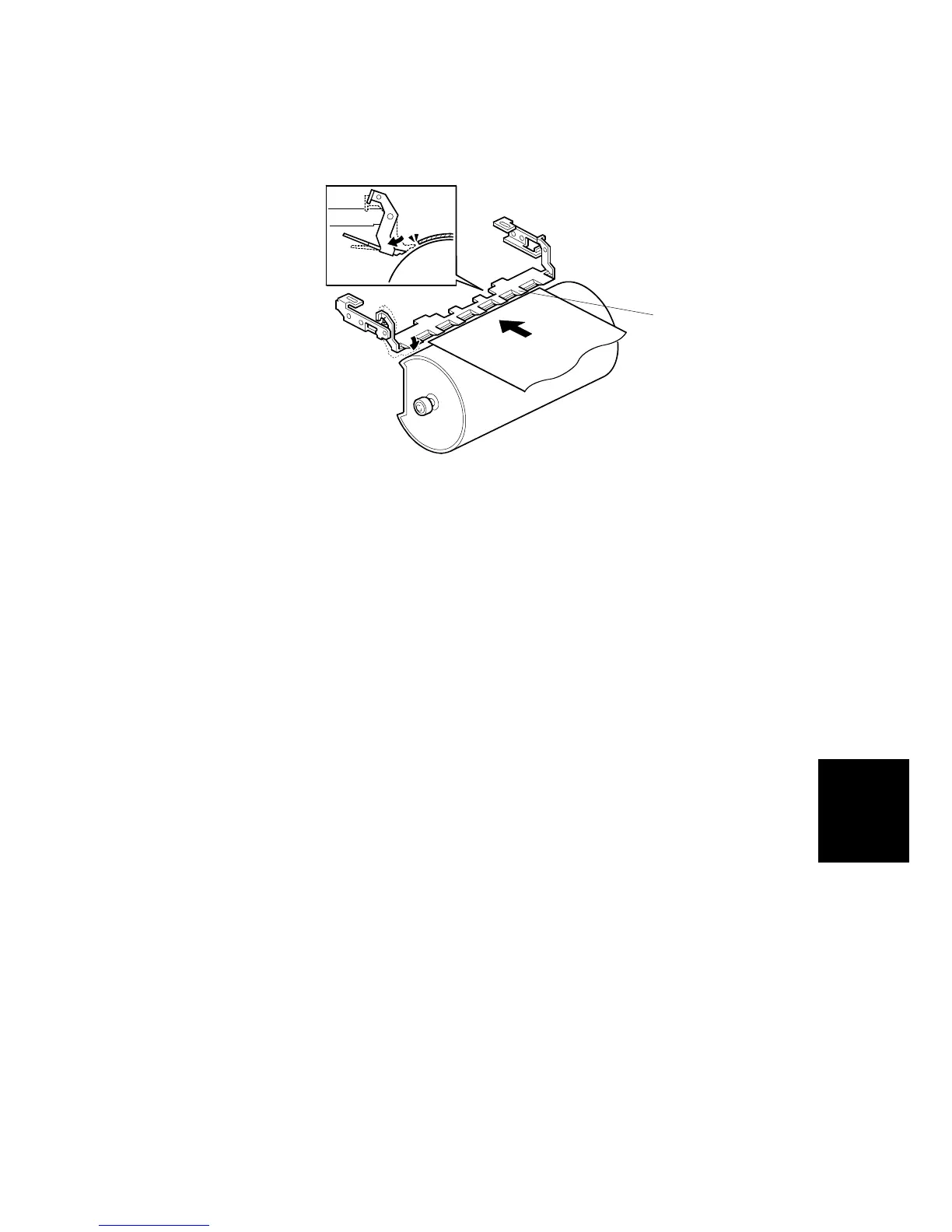

The paper pick-off plate [A] can move. When the paper is firmly wrapped around
the cylinder, the pick-off plate cannot remove it. In this case, the paper moves back
the pick-off plate and lifts it away from the pressure cylinder. This prevents jams
that are caused by the paper being stuck at the paper pick-off plate.
NOTE: Refer to section 3 (Replacement and Adjustment) for how to adjust the gap
between the pick-off plate and the pressure cylinder.
C262D112.WMF
[A]
