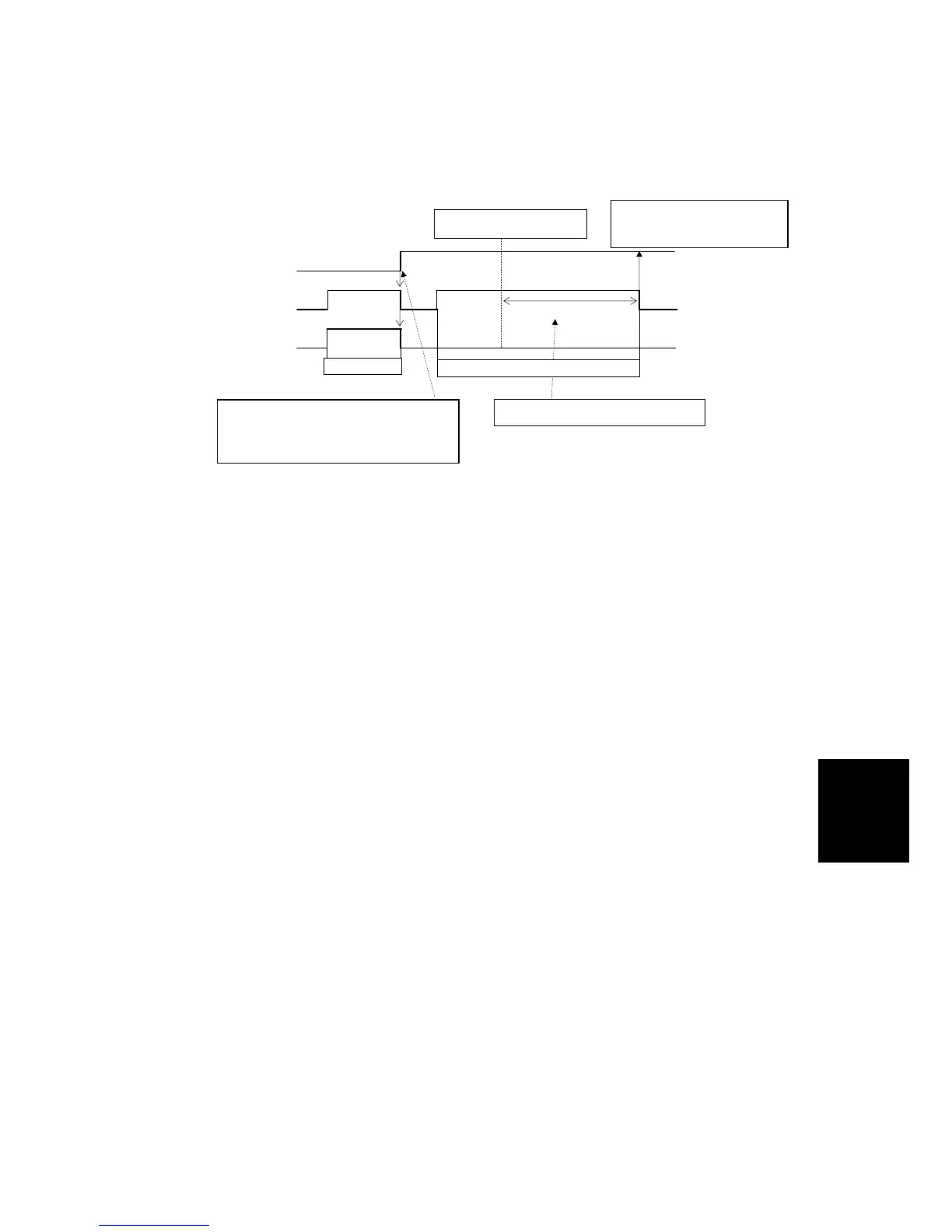

6.14.9 ORIGINAL FEED ERROR DETECTION IN THE ADF
Registration Sensor
DF Feed Motor
DF Feed Clutch
Image Scanning Start
L+150 mm
Feed-in
Original Feed-in Jam
The sensor is still off 5 seconds
after the motor turns on.
Original Feed-out Jam
The sensor sta
y
s on.
Feed-out
"L" means the original's length.
