9a - OPERATIONS AND ADJUSTMENTS OF SPINDLE
THIS MANUAL IS PROPERTY OF SCM INDUSTRIA S.P.A - ANY TOTAL OR PARTIAL REPRODUCTION IS STRICTLY FORBIDDEN Cap. 9a Pag. 43/45
PRESSER
- loosen the knob (E fig. 9.55-2D) or the screws (A fig. 9.55-2D) and adjust the presser (G fig. 9.55-2D) in
such a way that it exercises slight pressure on the piece to be machined;
- relock when adjustment has been completed.

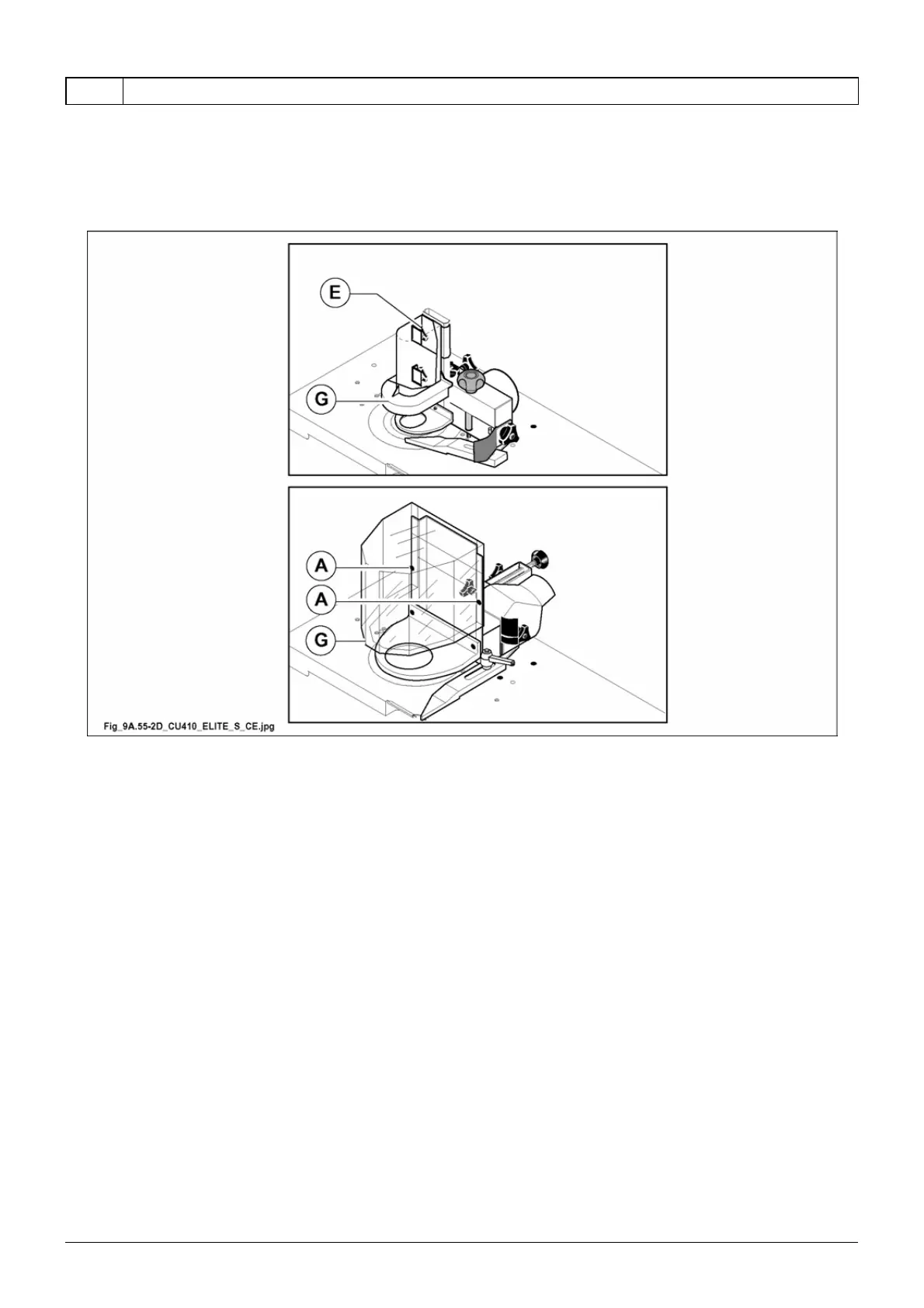

Fig. 9.55-2D
