Version with "DADO SET" ( - U.S.A. and CANADA)
- Remove protection (P fig. 4.3-41A) by loosening handle (Q fig. 4.3-41A).
- Proceed with assembling and disassembling the saw blade as described in paragraph; to extract the blade
remove the hole cover (X fig. 4.3-41A) and remount it before tightening.
- Remount protection (P fig. 4.3-41A).
DANGER-WARNING:
USE the flange to mount the saw blade.
DANGER-WARNING:
the guard (P fig. 4.3-41A) must always be mounted and must be positioned in such a way as to
completely cover the tool.

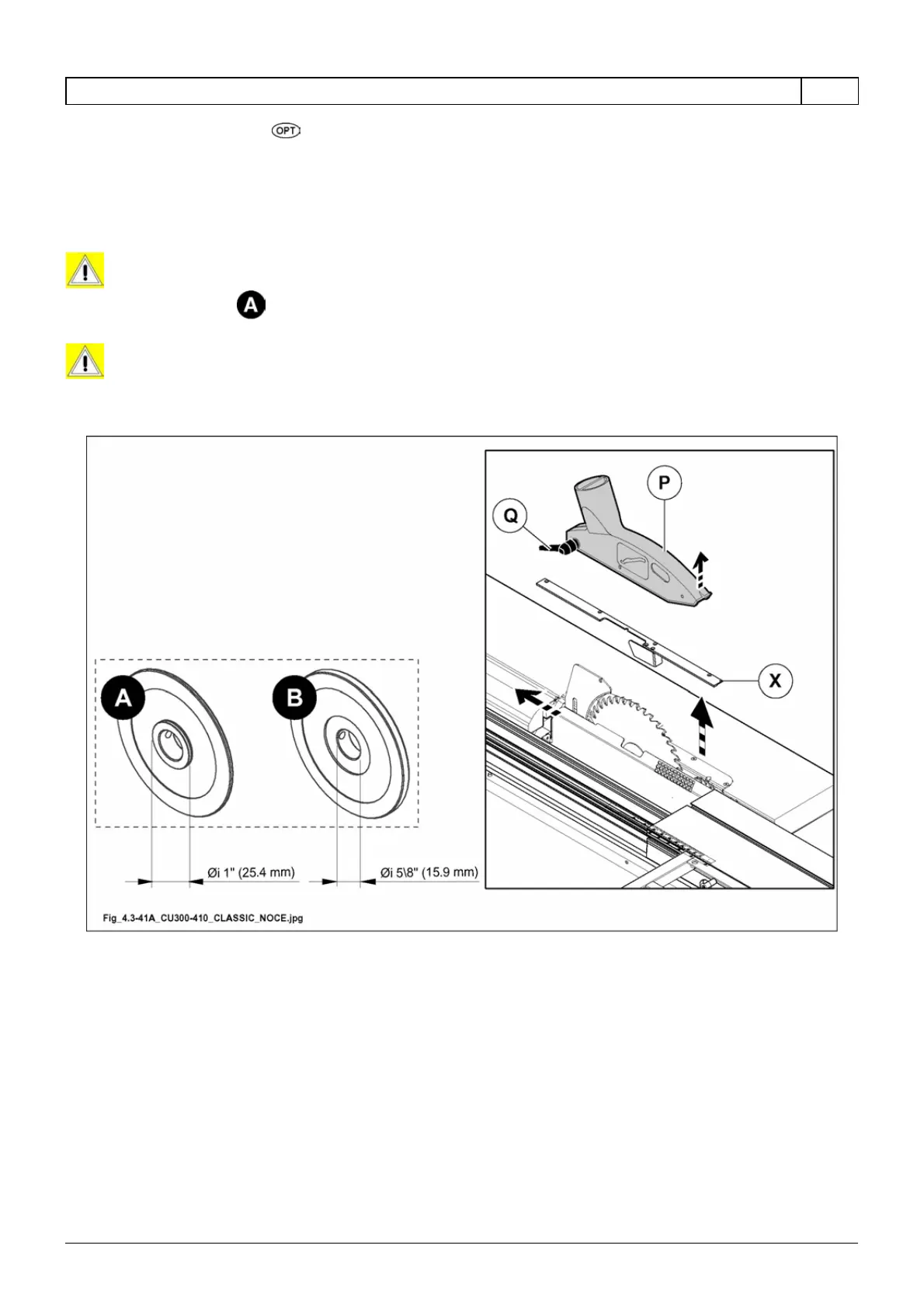

Fig. 4.3-41A
