Nur für den internen Gebrauch Boards for HiPath 3000

Peripheral boards

Front panel

An additional shielding panel is not required on the front side of this board, because the EMC

shield is already provided by the front panel.

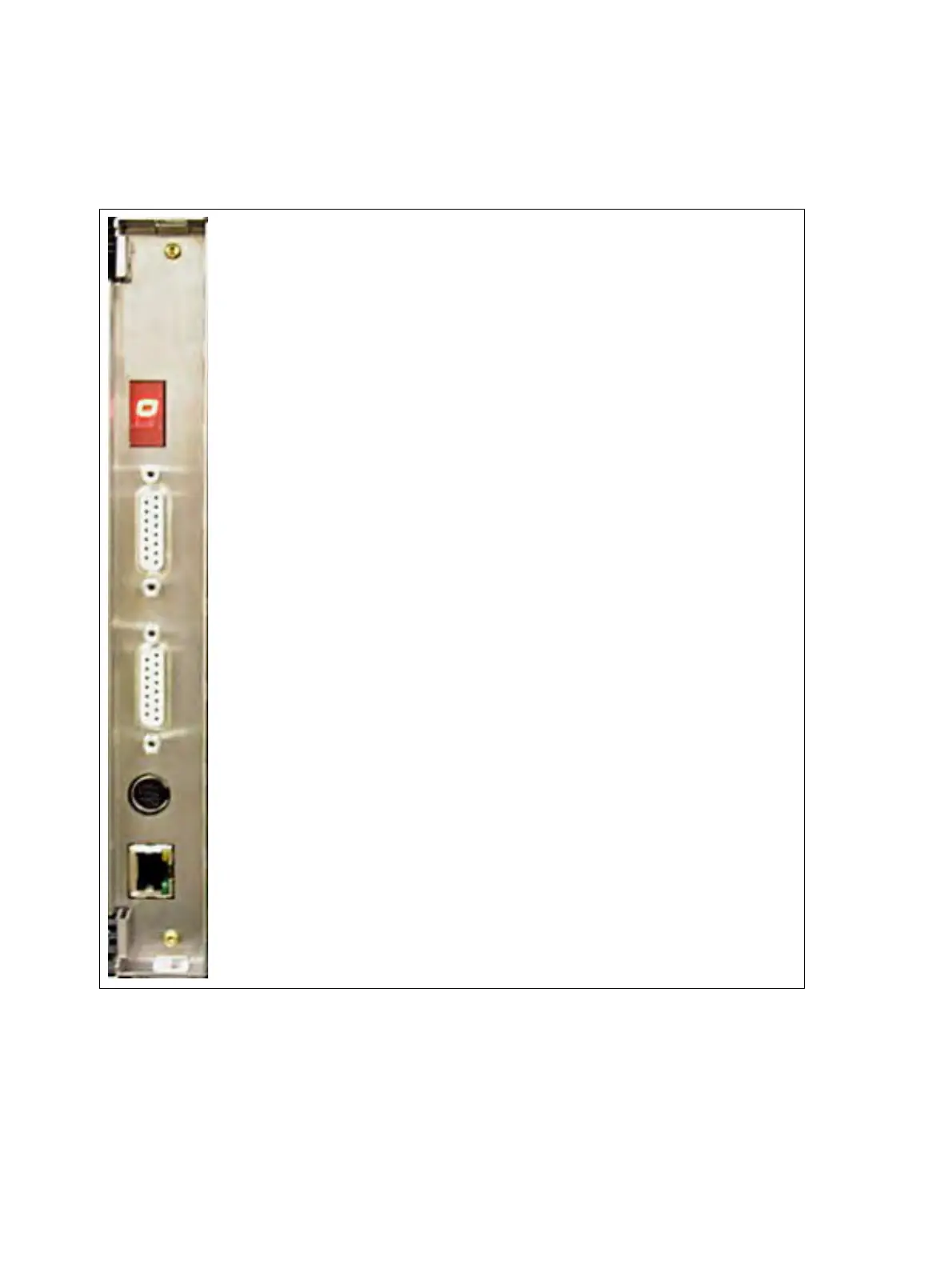

Figure 3-103 TMCAS-2 (for selected countries only) – Front Panel

X803 (9-pin MINI DIN jack): V.24 interface

Seven-segment display

X909 (15-pin Sub-D jack): CAS interface 1

X910 (15-pin Sub-D jack): CAS interface 2

X804 (RJ45 jack): Ethernet (10/100BaseT) interface

Two LEDs indicate the current interface status:

● Yellow LED = transmitting data

● Green LED = receiving data
