Installing HiPath 3550, HiPath 3350, HiPath 3500, and HiPath 3300
HiPath 3550 - MDFU connections for peripheral board
Not for U.S.: HiPath 3550: Connecting the Cabling
Figure 4-54 HiPath 3550 - Backplane connection for peripheral board
If Then
SLA8N
SLA16N
SLA24N
SLC16N
SLMO24
Route the 16 TW to the MDFU via the SU X8 and 8 TW via SU X9 (see
Figure 4-54) using a standard cable (with 16 TW). Connect both cables (= 1
CABLU with SU connectors labeled 8 and 9) to the same jumper strip (25
TW).
Slot with any
other periph-
eral board
● Without an external main distribution frame (MDFU):
You can attach cables for the peripheral boards directly to the boards (see
Figure 4-55 for the slip-on connectors) and route them to the MDFU
through the cable duct inside the housing.
● With an external main distribution frame (MDFU):
Use CABLU S30269-Z41-A30 (Figure 4-53) to connect the peripheral
boards to the customer’s line network. As shown in Figure 4-55, you can
connect the eight-pin slip-on connectors to the boards directly. The line
network connects directly to the jumper strip.

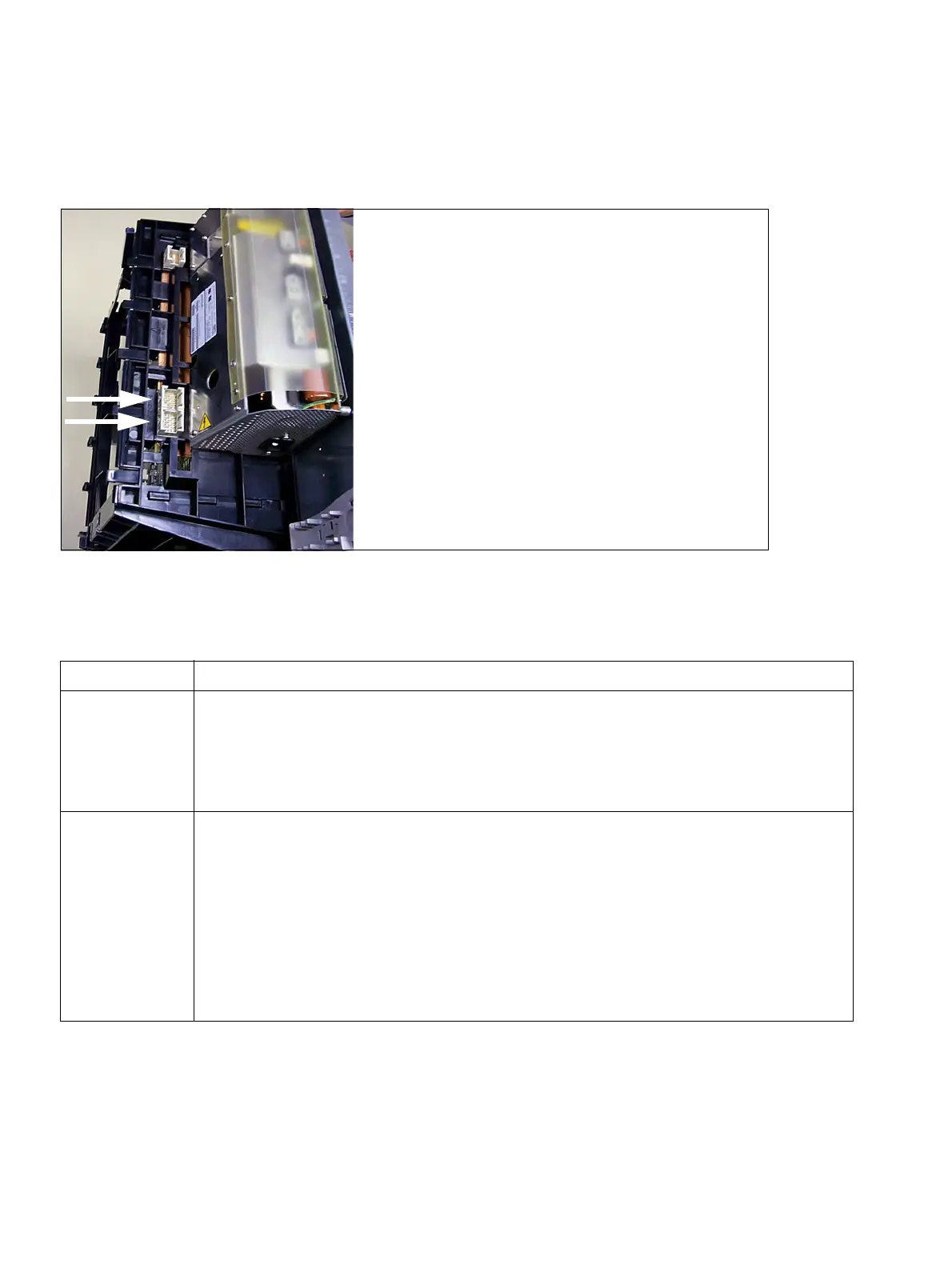

The two arrows on the left mark the con-
nections for the cables coming from the
main distribution frame (MDFU).
