Not for U.S.: HiPath 3350: Connecting the Cabling
The integrated distribution frame in HiPath 3350 allows you to connect the cable network to
the trunk and the stations using screw connections on slip-on connectors. The slip-on connec-
tors (C39334-Z7089-C13) can be easily removed for easy system connection and disconnec-
tion.
The peripheral boards and optional boards contain a distribution frame component in the form
of edge connectors on the boards.
The slip-on connectors for these edge connectors are supplied with the boards.
If you have an external main distribution frame (MDFU), use CABLU S30269-Z41-A30
(Figure 4-53) to connect the peripheral boards to the customer’s line network. As shown in
Figure 4-55, you can connect the 8-pin slip-on connectors directly to the boards. The line net-
work connects directly to the jumper strip.
For U.S. only: HiPath 3550 and HiPath 3350: Connecting the Cabling
If the boards are not already connected to the appropriate cables leaving the system, you need
to connect them.
● The TST1 Module (HiPath 3550) connects to a customer-supplied channel service unit
(CSU) using the supplied cable. The CSU offers the required additional primary protection.
● Each port on the STLS4 Module connects to an S
0
bus using the supplied, silver-satin con-
nector cord and a surface-mounted RJ21X jack. The surface-mounted RJ21X jack is not
supplied.
The signals must be reversed in the RJ45X jack. See Figure 3-68.
● The board in Slot 10 of HiPath 3550 connects using a special cable from the backplane to
the main distribution frame (MDF).
● The remaining peripheral boards and options are connected by means of a main distribu-
tion frame provided on the customer side or a comparable unit. This is where the MDF ca-
bles supplied are used (Octopus cable with Amphenol terminators). You select the output
pattern on the Amphenol connector by which slip-on connector you use on each board
edge connector.

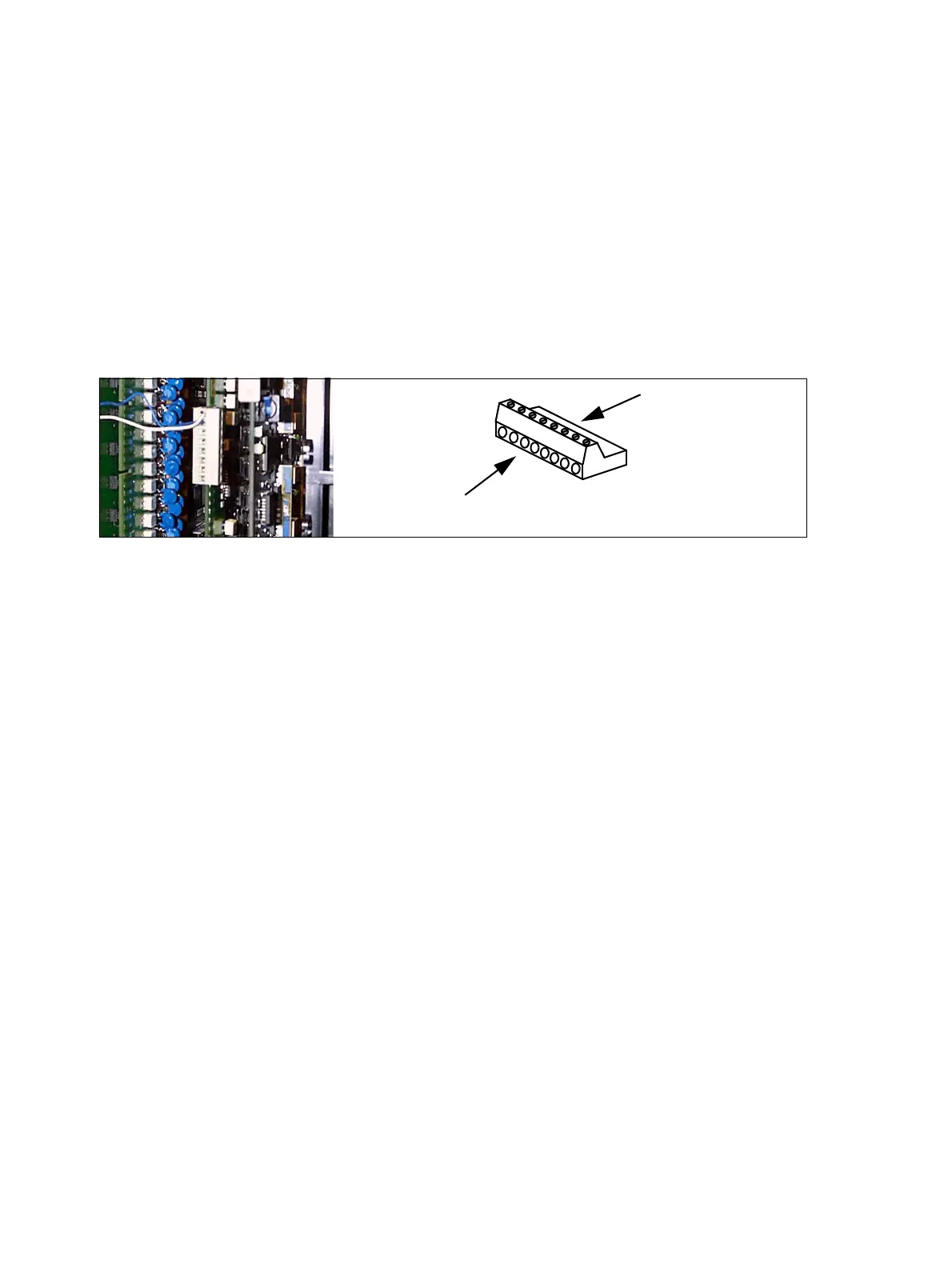

Figure 4-55 Integrated Distribution Frame - Slip-On Connector Screw Connections
Plug connection
to the
HiPath 3550 and
HiPath 3350
Screw con-
nections to
the network
To Next Page
