Re-readability of the outputs
The digital outputs can be read back into the user data area: If, e. g. A11.3 is
parameterized as an output, it can be read back via E11.3. see Figure3-41
Inputs
The following applies: Channel 8: n+1.0
Channel 9: n+1.1
Channel 10: n+1.2
Channel 11: n+1.3
Channel 12: n+1.4
Channel 13: n+1.5
Channel 14: n+1.6
Channel 15: n+1.7
Outputs
.0.0.7 .7
.0.0.7 .7
Byte n Byte n+1
Byte n+1
0
Re–readability

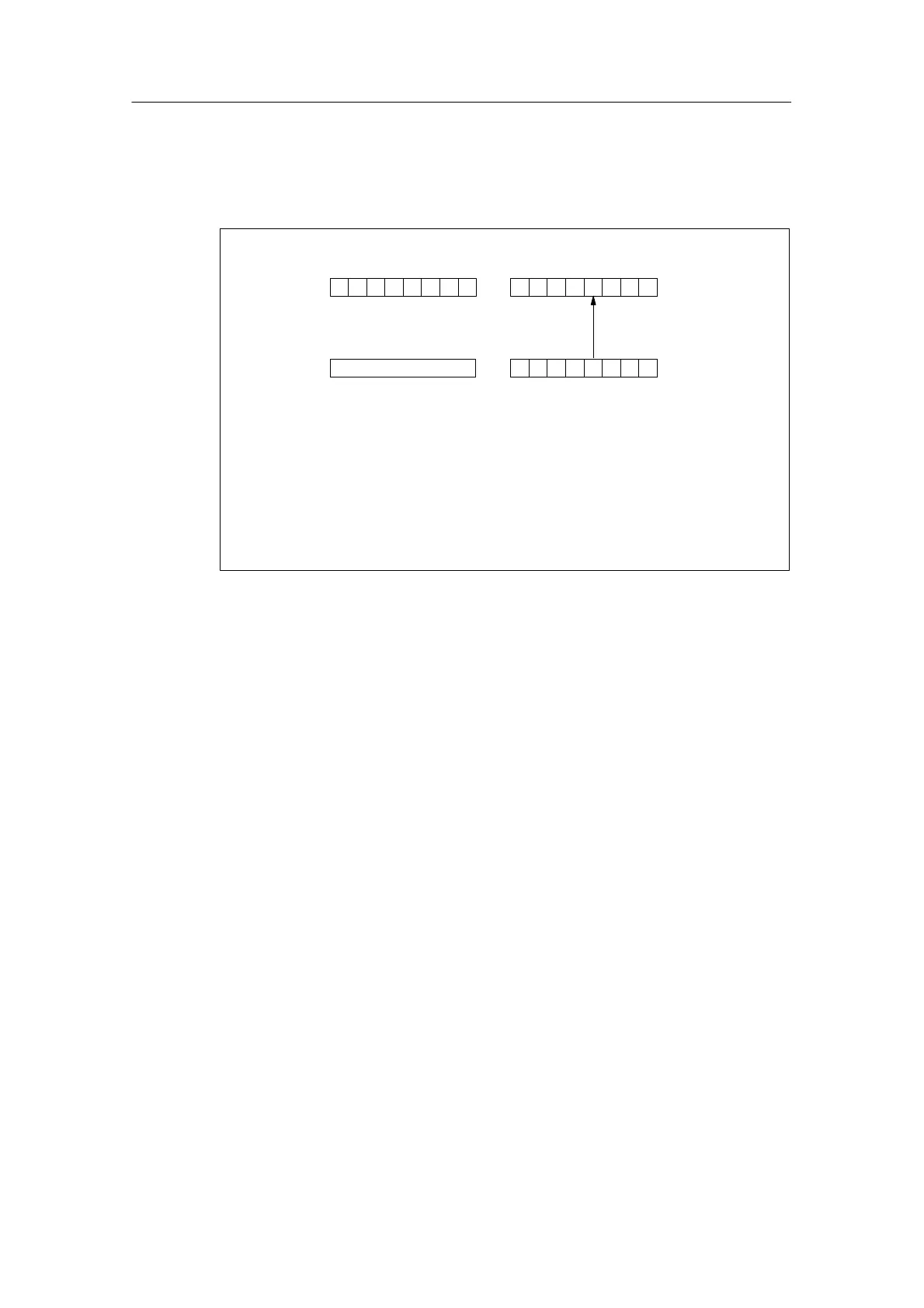

Figure 3-41 Re-readability of the outputs of the SM 327; DI 8/DX 8 x DC 24 V/0.5 A
