Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
160 mm rail

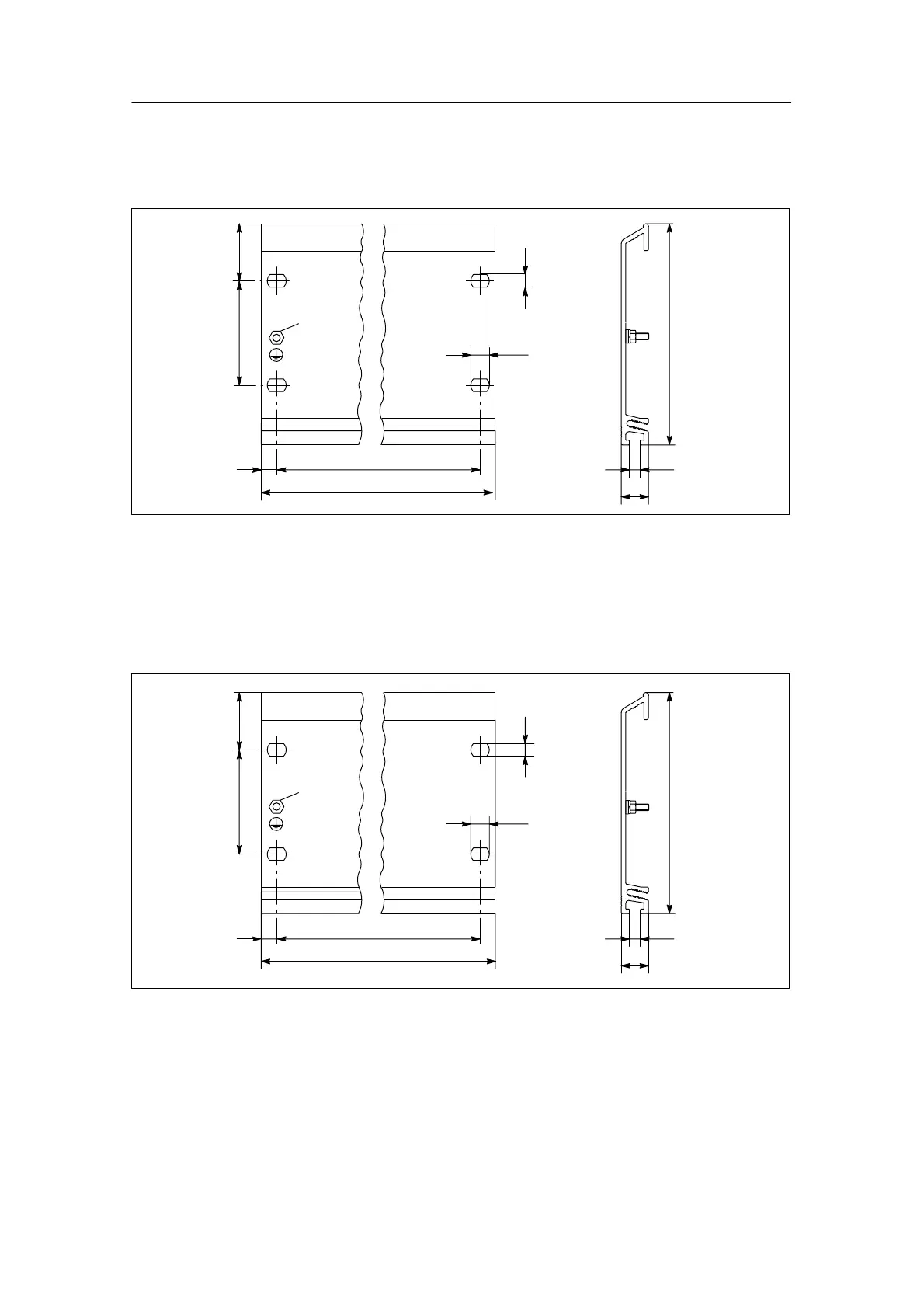

Figure C-5 shows the dimension drawing of the 160 mm rail.
14010
57.2 32.5
160
15
6
122
7
10
M6
Figure C-5 Dimension Drawing of the Rail with 160 mm Standard Width
482.6 mm rail
Figure C-6 shows the dimension drawing of the 482.6 mm rail.
8.3
15
6
466
57.2 32.5
482.6
122
7
10
M6
Figure C-6 Dimension Drawing of the Rail with 482.6 mm Standard Width

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
