SIMATIC TOP Connect and SIMATIC TOP Connect TPA

8-11

Programmable Logic Controllers S7-300 Module Data

A5E00105505-03

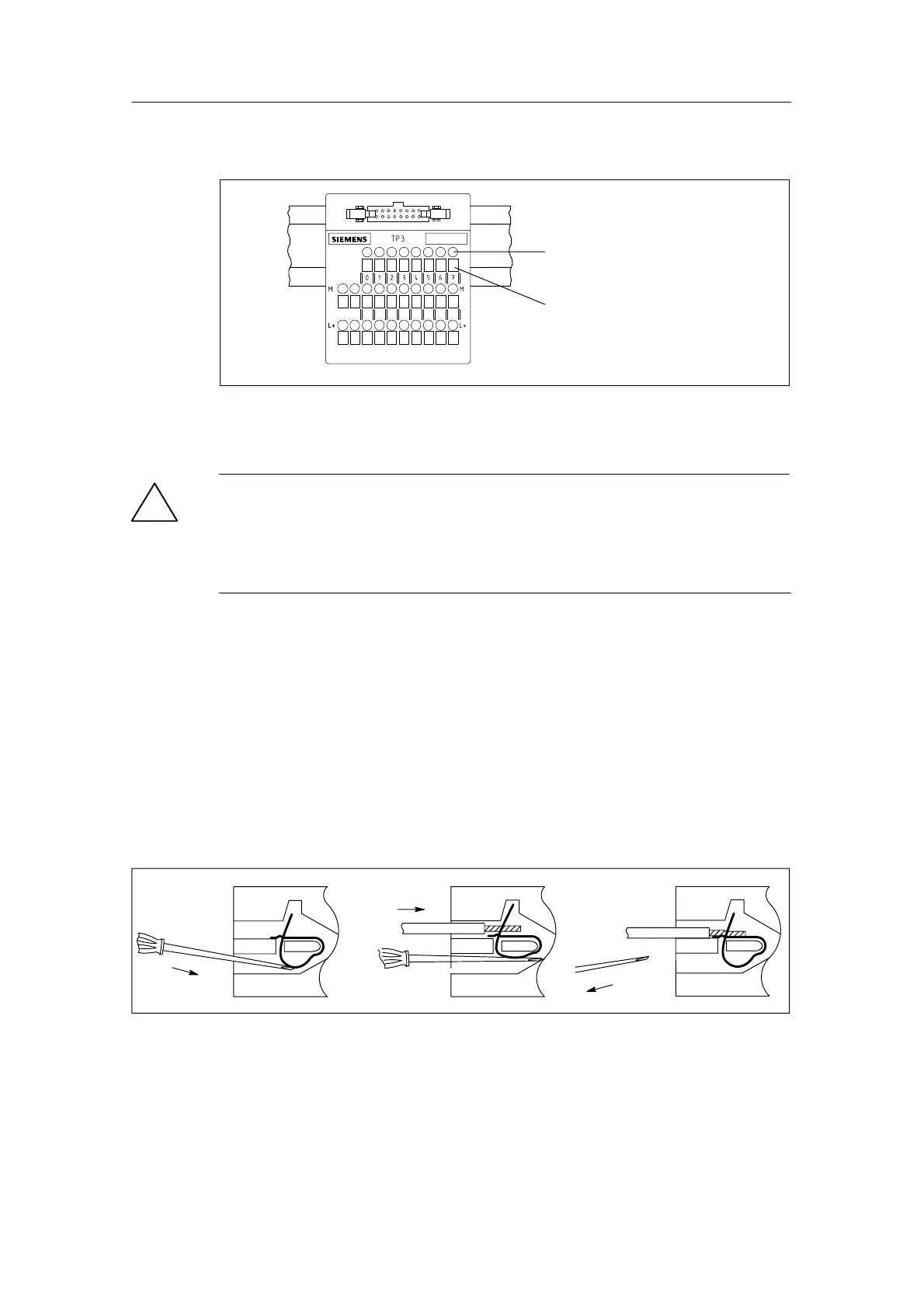

Spring-loaded terminal block

Opening for the

screwdriver for pressing

the spring-loaded contact

Opening for the cable to

be connected

Figure 8-6 Spring-loaded terminal block

Caution

The spring-loaded contact will be damaged, if you insert the screwdriver into the

opening for the cable.

Make sure that you insert the screwdriver only into the rectangular opening of the

terminal block.

Attaching the cable to the spring-loaded contact

Attach the cables to the spring-loaded contacts as follows:

1. Use a screwdriver  to press down the spring-loaded terminal in the

rectangular opening and to hold it down.

2. Insert the cable  into the round opening of the corresponding spring-loaded

terminal as far as it will go.

3. Remove the screwdriver  from the spring-loaded terminal. The cable is held

by the spring-loaded contact.







Figure 8-7 Principle of Spring-Loaded Connections
