C.5 Dimension Drawings for Accessories
Shield connecting element

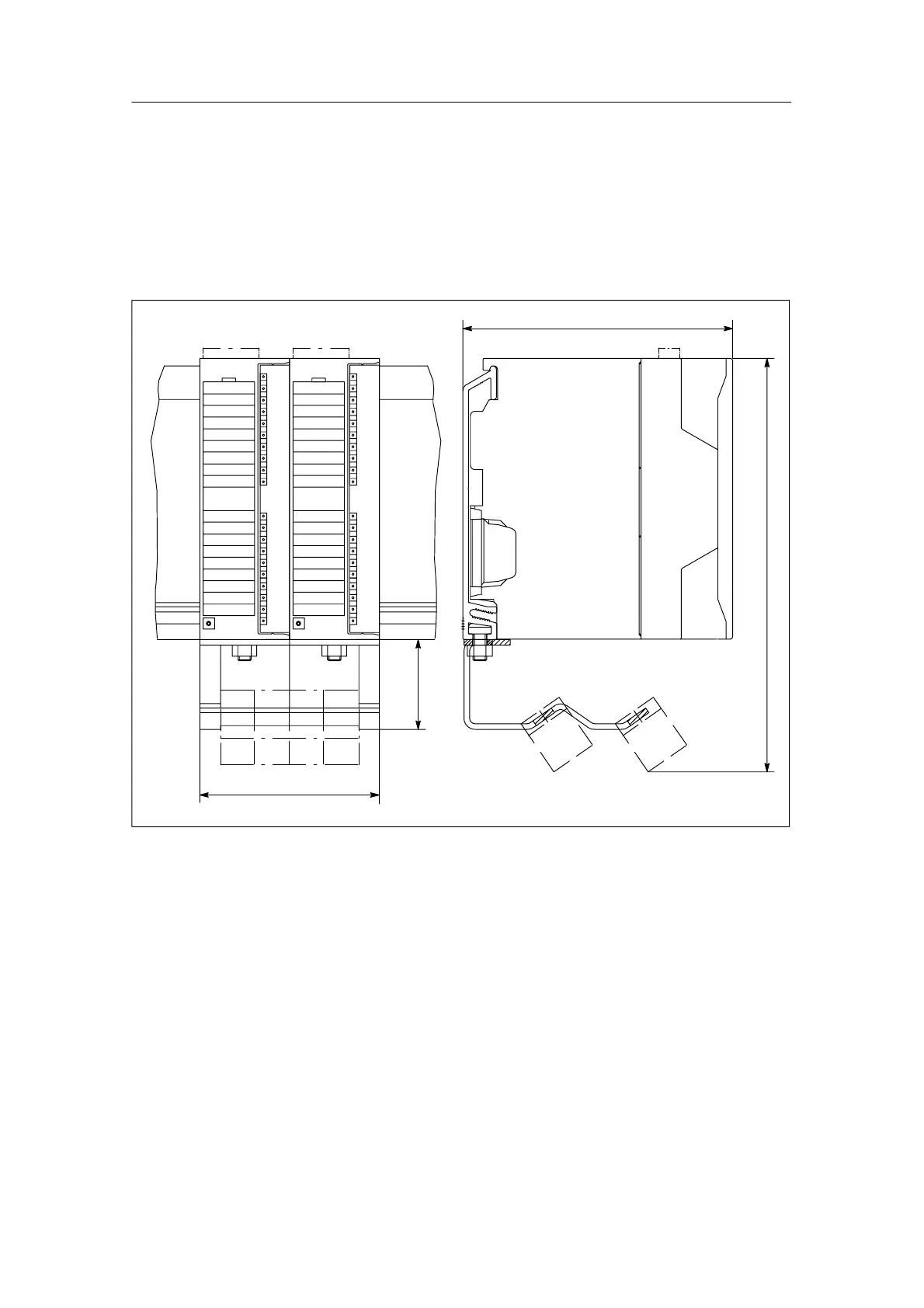

Figure C-21 shows the dimension drawing of the shield connecting element in
connection with two signal modules.
190
80
40
120
Figure C-21 2 Signal Modules with Shield Connecting Element
