Siemens SIMATIC S7-300 Module data Reference Manual

Digital Modules
3-102
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
Operation with safe electrical extra-low voltage
When using relay output module 6ES7322-5HF00-0AB0 with safe and electrically
isolated extra-low voltage, take the following special characteristic into account:
If a terminal is operated with a safe and electrically isolated extra-low voltage, the
horizontally adjacent terminal must be operated at a rated voltage of not more
than 120 VUC. With operation at voltages greater than 120 VUC, the creepages
and clearances of the 40-pin front connector do not meet the SIMATIC
requirements for safe electrical isolation.

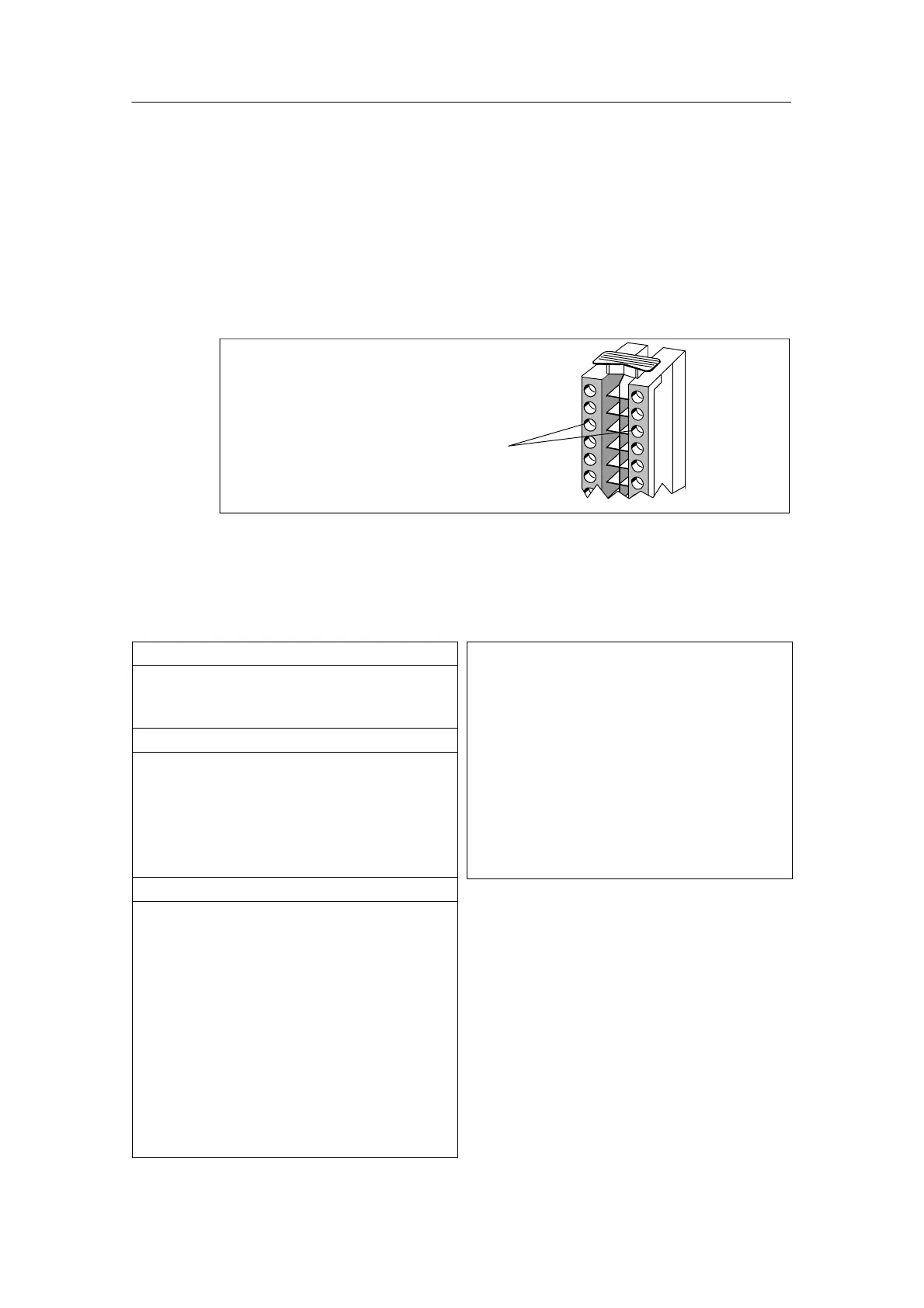

If one of the two horizontally adjacent termi-
nals is operated with a safe electrical extra-
low voltage, the adjacent terminal must be
operated at not more than UC 120 V.
Figure 3-33 Special Characteristic for Operation with a Safe Electrical Extra-Low Voltage
Technical specifications of the SM 322; DO 8 x Rel. 230 VAC/5 A
Dimensions and Weight
Dimensions W x H x D
(in millimeters)
40 x 125 x 117
Weight Approx. 320 g
Data for Specific Module
Supports clocked
operation
No
Number of outputs 8
Length of cable
• Unshielded
• Shielded
max. 600 m
max. 1000 m
Voltages, Currents, Potentials
Rated supply voltage of the
electronics L +
24 VDC
• Reverse polarity protection Yes
Total current of the outputs
(per group)
• Horizontal configuration
Up to 60° C
max. 5 A
• Vertical configuration
Up to
40 ° C
max. 5 A
Isolation
• Between channels and
backplane bus
Yes
• Between the channels and
the relay supply voltage
Yes
• Between the channels
In groups of
Yes
1
Permitted potential difference
• Between M
internal
and
supply voltage of the relays
75 VDC / 60 VAC
• Between M
internal
and
supply voltage of the relays
and the outputs
250 VAC
• Between the outputs of the
different groups
500 VAC

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
