SIMATIC TOP Connect and SIMATIC TOP Connect TPA
8-23
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
8.4.3 Connecting the Signal-Line Shield
Two options for connecting the shield
You can connect the signal line shield to ground as follows:
• On the analog module by means of a shield-support element
(refer to the manual Hardware and Installation for the S7-300 or the manual
Distributed I/O device ET 200M in the section on wiring)
• Directly to the terminal block by means of a shielding plate
Connecting the shield to the terminal block using a shielding plate
1. Before mounting, attach a shielding plate to the terminal block.
2. Mount the terminal block on the DIN rail.
(In the figure below, you can see that the shielding plate is applied to the rear of
the terminal block and thus there is a connection to the grounded rail.)
3. Place the signal-line shield with the shield terminals on the shielding plate.
Shield support for shield terminal and
connecting cable to analog module
Terminal block
Shield support fro shield terminal
and signal lines from
actuators/sensors
Shielding plate
Snap the shielding plate into place at the rear of the terminal block.
Loosen
shielding plate
Snap the
shielding plate
into place
Press down lightly on the
release to loosen the
shielding plate

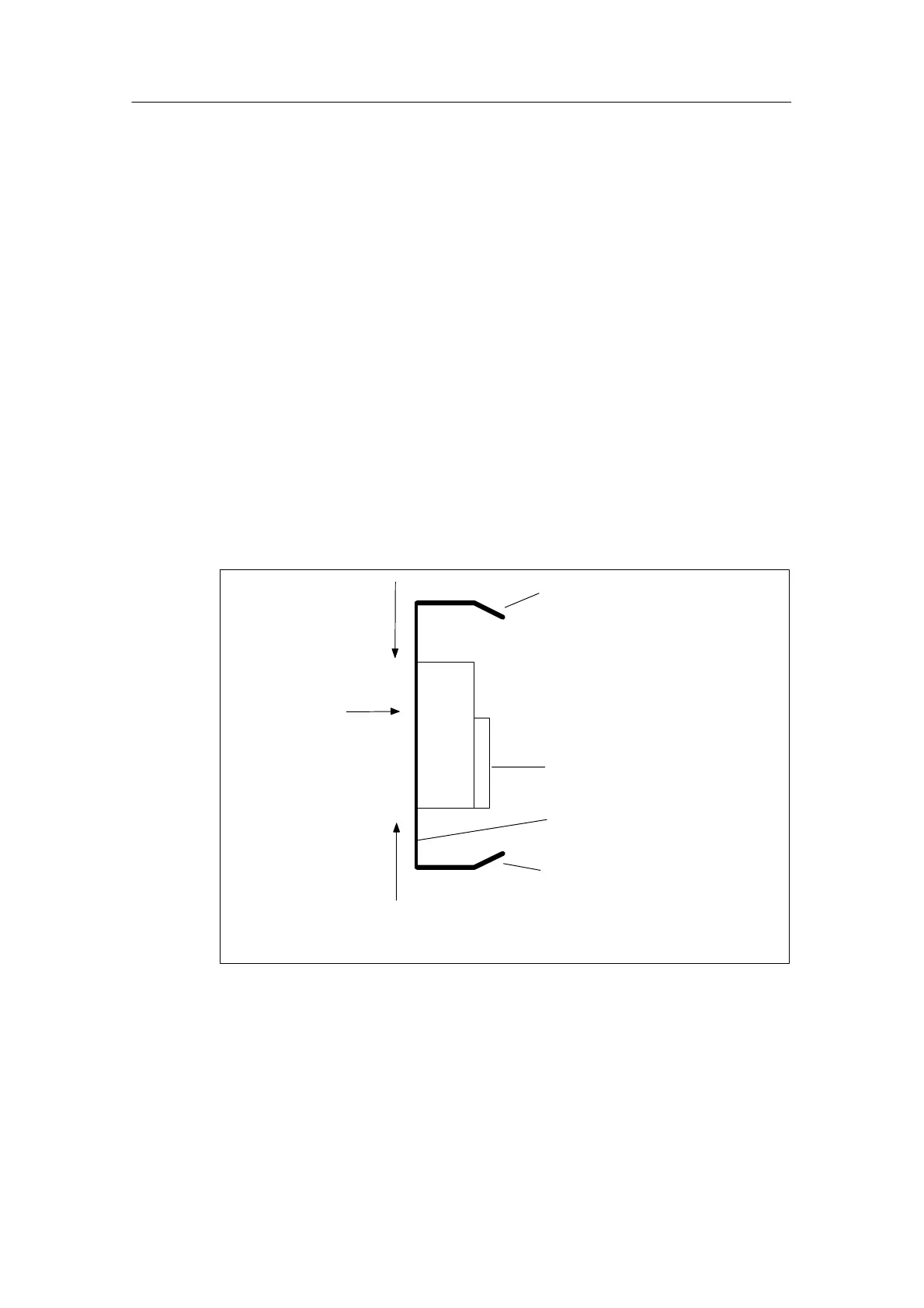

Figure 8-12 SIMATIC TOP connect TPA Terminal Block with Shielding Plate

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
