SIMATIC TOP Connect and SIMATIC TOP Connect TPA
8-2
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
8.1 Module Overview
Introduction
“SIMATIC TOP connect” denotes components for wiring digital modules.
“SIMATIC TOP connect TPA” denotes components for wiring analog modules.
Wiring
Wiring with SIMATIC TOP connect/... TPA is a fast and cost-effective alternative to
conventional wiring of the actuators and sensors directly at the front connector of
the module. When using these components, you wire actuators and sensors “in
situ” on one more terminal blocks. You establish the connection to the module by
means of a connecting cable (round-sheath ribbon cable).
Configuration of SIMATIC TOP connect with a S7-300
A SIMATIC TOP connect and a SIMATIC TOP connect TPA always consist of:
• A front connector module with flat ribbon connection ,
• One or more terminal blocks  and
• One or more connecting cables with plug-and-socket connectors at ends 




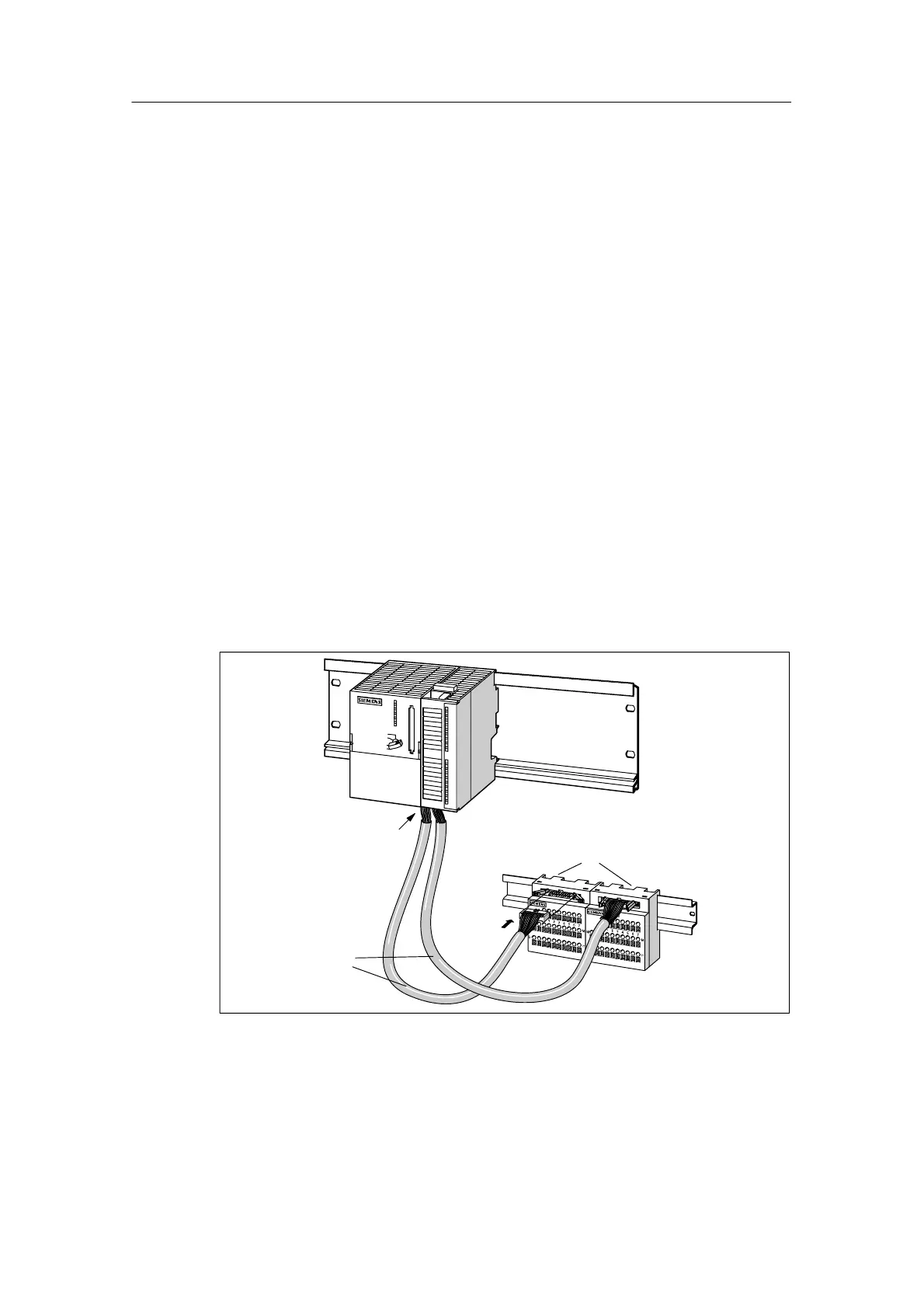

Figure 8-1 SIMATIC TOP connect on a S7-300

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
