Siemens SIMATIC S7-300 Module data Reference Manual

C-2
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
C.1 Dimension Drawings of the Rails
483 mm standard rail

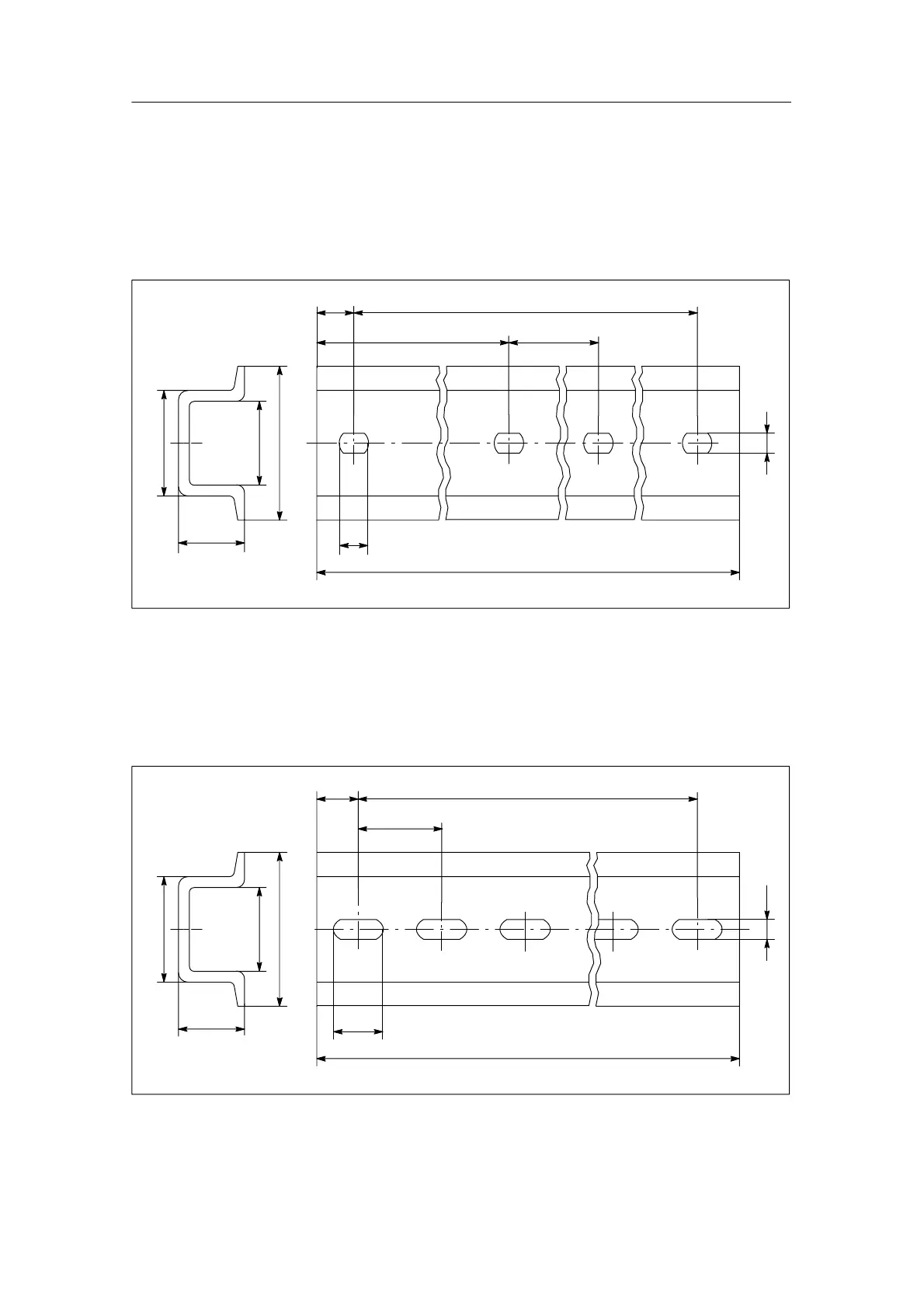

Figure C-1 shows the dimension drawing of the 483 mm standard rail.
15
19
35
24
8.7 465.2
163.9 155
11
482.6
7
Figure C-1 Dimension Drawing of the 483 mm Standard Rail
530 mm standard rail
Figure C-2 shows the dimension drawing of the 530 mm standard rail.
15
19
35
24
15 20 25 = 500
25
18
530
5.2
Figure C-2 Dimension Drawing of the 530 mm Standard Rail

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
