SIMATIC TOP connect, 1-tier

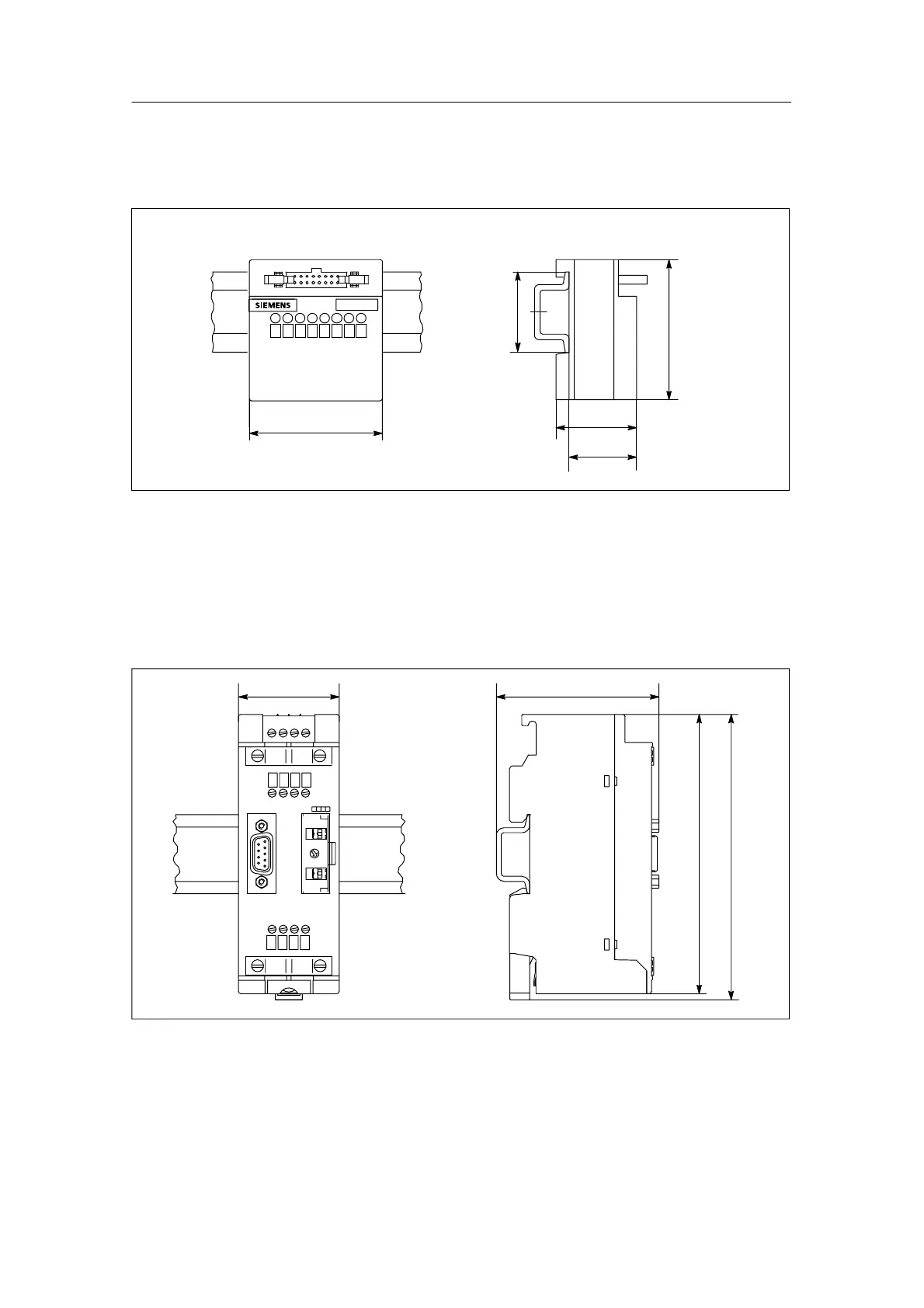

Figure C-24 shows the dimension drawing of the 1-tier SIMATIC TOP connect.
55
52
40.5
35.5
35
Figure C-24 SIMATIC TOP connect, 1-tier
RS 485 repeater on standard rail
Figure C-25 shows the dimension drawing of the RS 485 repeater on the standard
rail.
73
125
128
45
Figure C-25 RS 485 Repeater on Standard Rail

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
