Dimension Drawings
C-7
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
Rail for “Insert and Remove” function

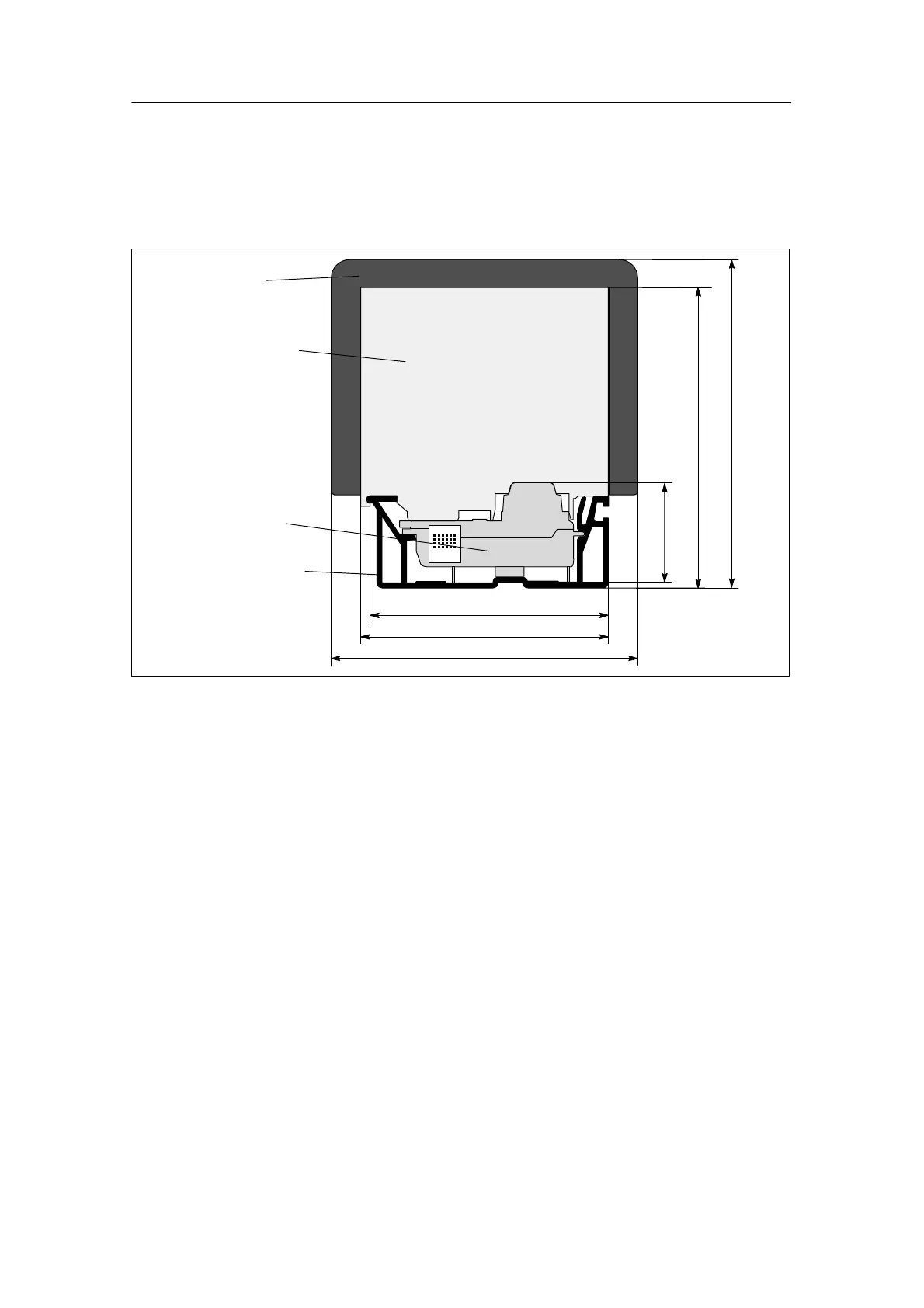

Figure C-10 shows the dimension drawing of the rail for the “Insert and Remove”
function with active bus module, S7-300 module and explosion-proof partition. The
rail is 482.6 mm or 530 mm long.
152
166
122
125
155
Explosion-proof
partition
S7-300 module
Active bus module
Rail for the ”Insert
and Remove”
function
59
Figure C-10 Complete Dimension Drawing of a Rail for “Insert and Remove” Function with Active
Bus Module, S7-300 Module and Explosion-proof Partition

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
