Replugging measuring range modules
If you want to replug a measuring range module, perform the following steps:
1. Use a screwdriver to ease the measuring range module out of the analog input
module.
1
2

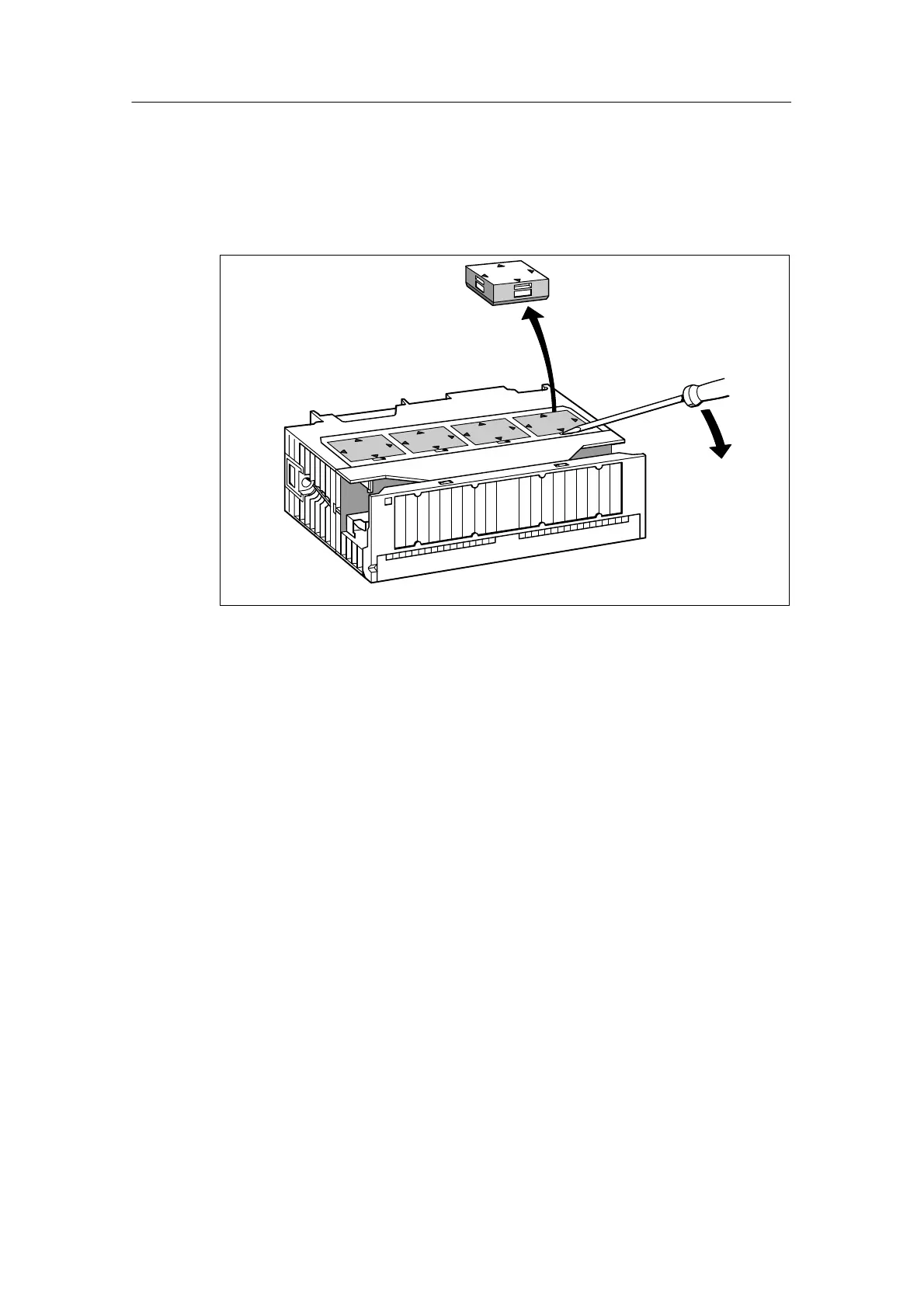

Figure 4-1 Easing Measuring Range Modules from the Analog Input Module
