Siemens SIMATIC S7-300 Module data Reference Manual

Analog Modules
4-147
Programmable Logic Controllers S7-300 Module Data
A5E00105505-03
“Software filter 8 channels” mode
In 8-channel software filter mode, the analog input module SM331; AI 8 x TC
switches over between the two channels in each group. As the module contains
four analog/digital converters (ADC), all four of the ADCs convert simultaneously
for channels 0, 2, 4 and 6. Once the even-numbered channels have been
converted all the ADCs simultaneously convert for the odd-numbered channels 1,
3, 5 and 7 (see Figure 4-47).

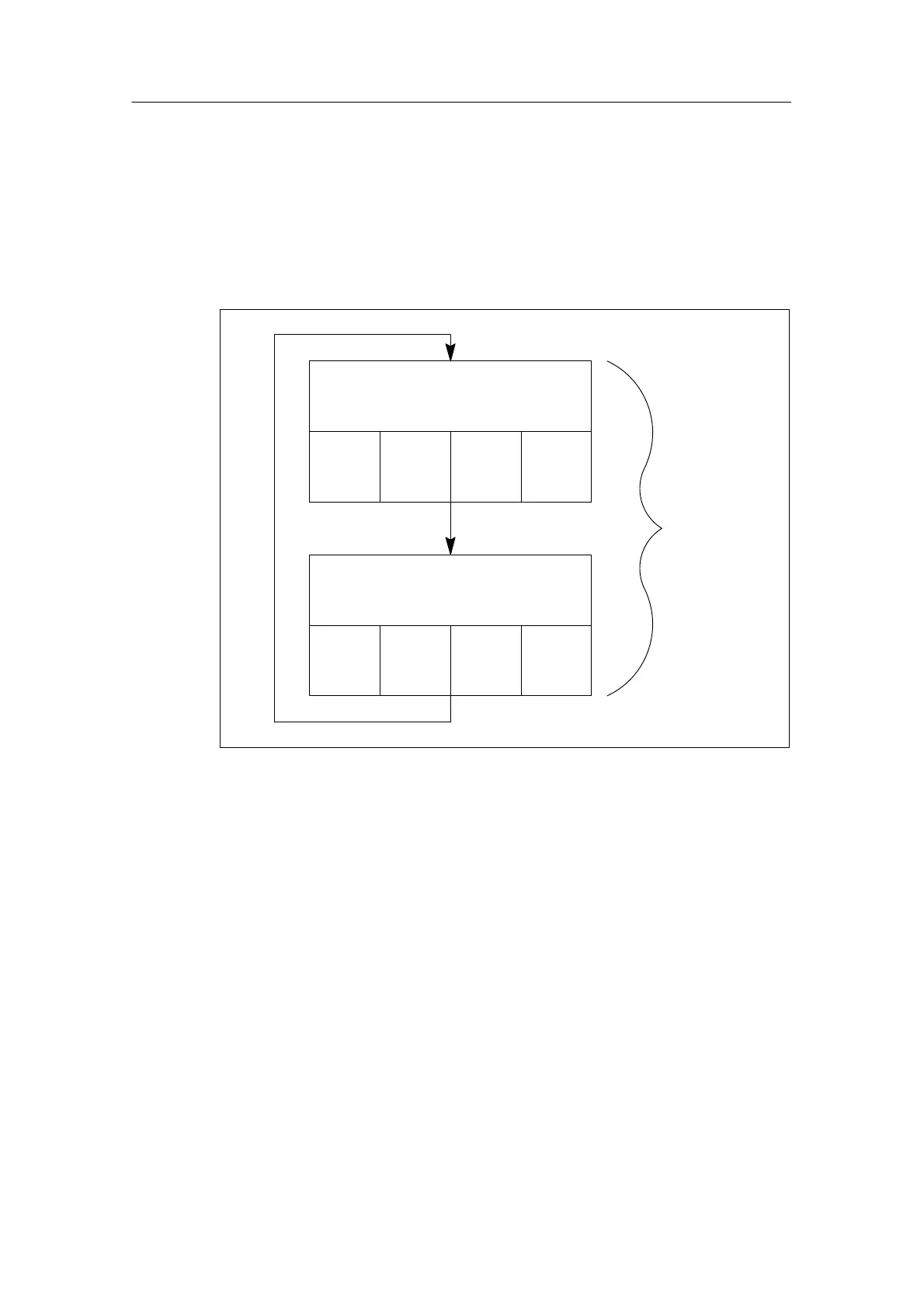

Scan time
Start analog conversion
(simultaneous)
K0 K2 K4 K6
K1 K3 K5 K7
Start analog conversion
(simultaneous)
Figure 4-47 Software filter 8 channels scan time

Siemens SIMATIC S7-300 Module data Specifications

General

Series	S7-300
Manufacturer	Siemens
Protection Class	IP20
System	SIMATIC S7-300
Digital Inputs	Varies by module
Digital Outputs	Varies by module
Analog Inputs	Varies by module
Analog Outputs	Varies by module
Central Processing Unit	Varies by CPU model
Supply Voltage	24V DC or 120/230V AC
CPU Type	Varies (e.g., CPU 312, CPU 315, etc.)
Memory	Varies by CPU model
Communication Interfaces	MPI, PROFIBUS
Programming Languages	LAD, FBD, STL, SCL, GRAPH
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 70°C
Relative Humidity	10% to 95% (non-condensing)
