Scanner Code Scan (with Vehicle System Report)
53

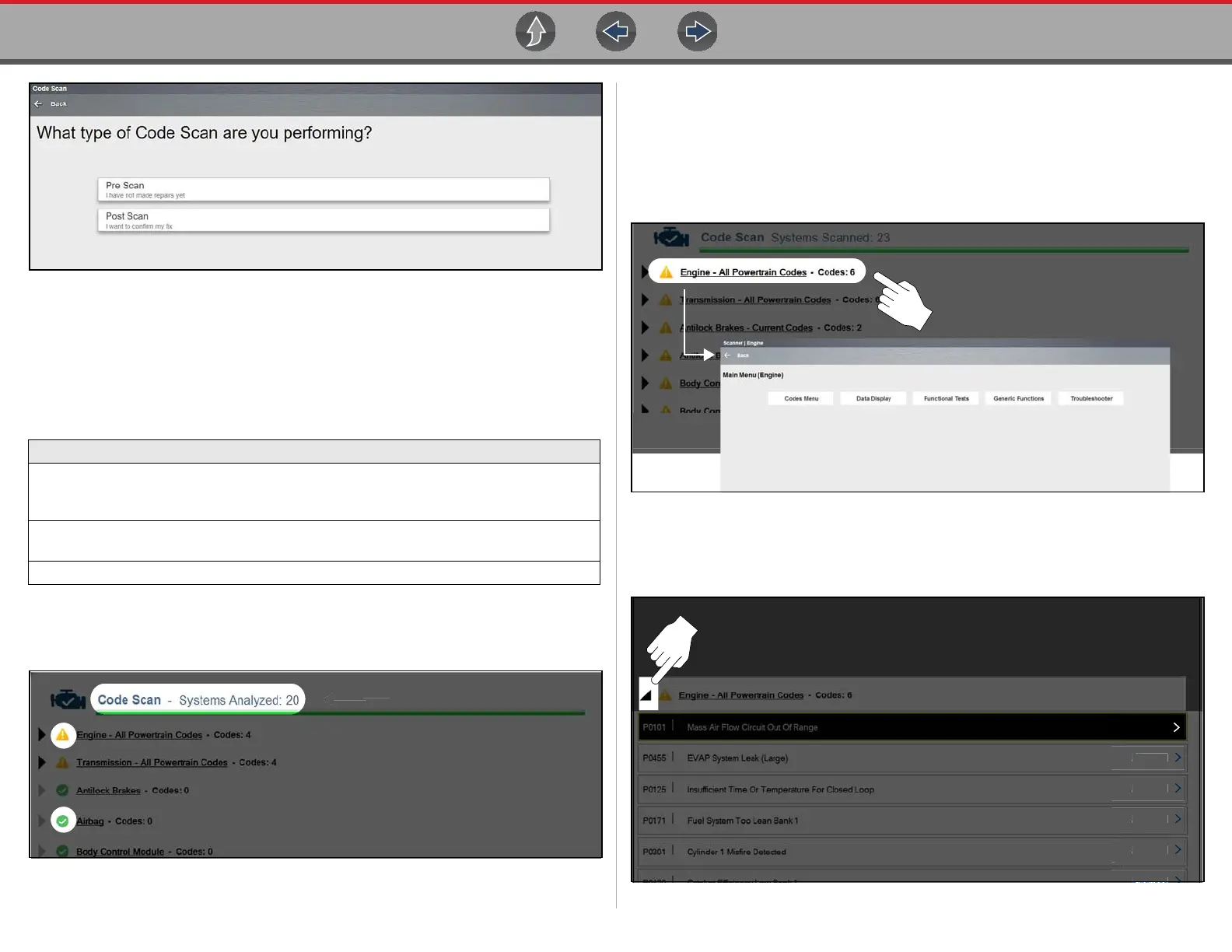

Figure 5-18
After selecting the report type, the Code Scan results screen (Figure 5-19) opens
and an active scan of the vehicle control modules starts.
When initially opened, a progress bar is shown at the top indicating the active
scanning progress. Once completed, code results are displayed by system.
The following Code Scan toolbar options are used:
The following results are displayed progressively as the modules are scanned:
• The total number of systems (modules) detected (Figure 5-19).
Figure 5-19 Code Scan (scanned system total and status icons)
Quick reference indicators are used to show system code status (Figure 5-19):
- Green icon “a” mark - No Codes
- Yellow Triangle icon “!” mark - Codes are present
• Systems Code list with totals - A categorized system list with code totals is
displayed in the order they are scanned. To view the main menu for a system in
the list, select the system title (Figure 5-20).
Figure 5-20 System title (opens System Main Menu)
Select the expand/collapse icon (Figure 5-21) on the left side of a system category
title to expand or collapse a system list.
Figure 5-21 Expand/Collapse Icon (expanded view)
Toolbar Function
Save - Saves the Vehicle System Report as a PDF, see
Saving the Vehicle System
Report on page 55
. Save also attaches the report to the current vehicle record (viewable
using the Attachments icon from the vehicle record toolbar).
Print - Allows you to print the Vehicle System Report, see
Printing the Vehicle System
Report on page 55
.
Refresh - Refreshes the code scan data (restarts the code scan)
