Vista 1 Digital Mixing System
4-116 GC Operation
Document generated: 18.04.17
SW V5.3
operation modes can be selected.
Multiple sources can be configured to one single relay, forming a logical OR
combination.

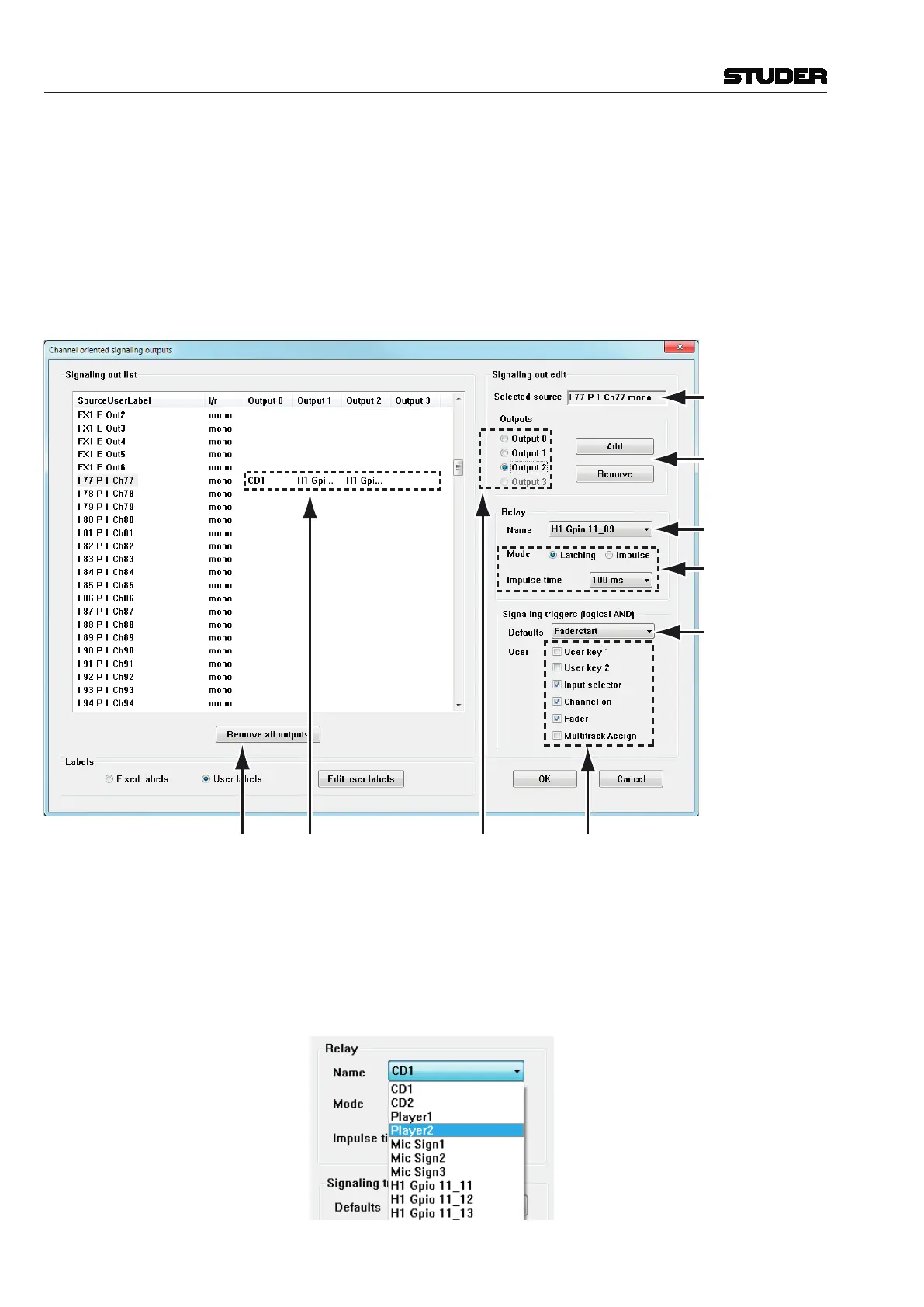

There are four steps in the Signaling Configuration:
1. To configure the Signaling, first select a source in the Signaling Out List,
2. Within the Signaling Out Edit window, select the desired output 0 to 3. In
most cases the correct Output (the next one that is unassigned) will be selected
automatically. Now you can add or remove a relay to/from this source.
Selected Source
Add or Remove
a Relay
Select a Relay
Select
Operating Mode
Select Fader Start
or User-Defined
Click to Remove
allAssigned Relays
Select which
of 4 Outputs
Set User-Defined
Triggers
Up to 4 Relays
can be Selected
per Source
3. Now you need to select the desired relay (use the arrow button to open a list
of relays), and to determine its mode of operation to either latching (contact
closed when trigger conditions are fulfilled) or impulse (contact closed for
a short time when trigger conditions are fulfilled, and then opened again).
Impulse mode closure time can be set to 100 or 200 ms.
