Vista 1 Digital Mixing System
Desk Operation 2-9
Document generated: 18.04.17
SW V5.3

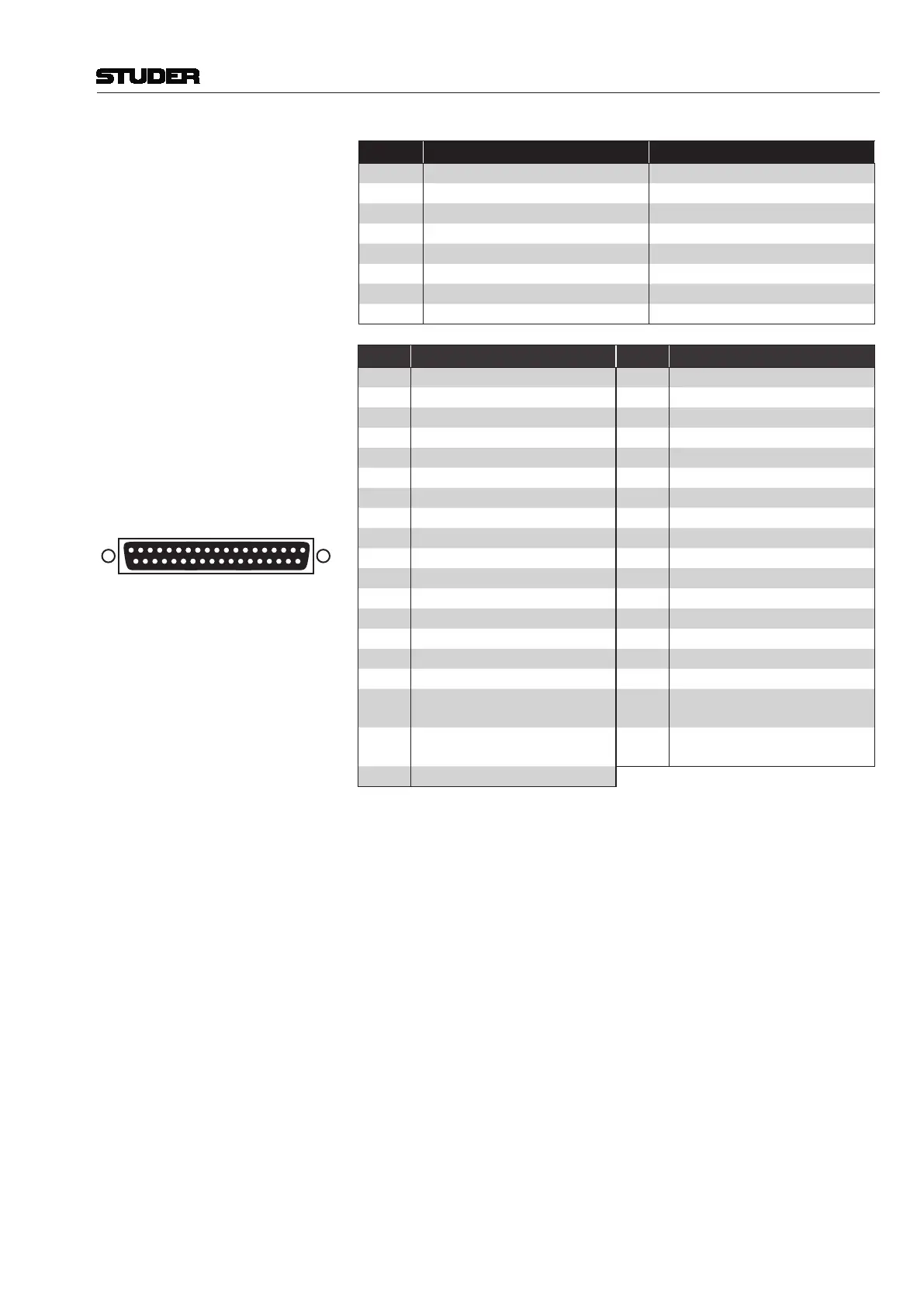

DIP SW ON OFF
S185-1 Switch 1 momentary action Switch 1 toggling action
S185-2 Switch 2 momentary action Switch 2 toggling action
S185-3 Switch 3 momentary action Switch 3 toggling action
S185-4 Switch 4 momentary action Switch 4 toggling action
S185-5 Switch 7 momentary action Switch 7 toggling action
S185-6 Switch 8 momentary action Switch 8 toggling action
S185-7 Switch 9 momentary action Switch 9 toggling action
S185-8 Switch 10 momentary action Switch 10 toggling action
119
37 20
Solder/Crimp View
(or Socket View)
Pin Signal Pin Signal
1 GND 20 Switch 1
2 LED 1 21 Switch 2
3 LED 2 22 Switch 3
4 LED 3 23 Switch 4
5 LED 4 24 Switch 5
6 LED 5 25 Switch 6
7 LED 6 26 Switch 7 (or GPO 7*)
8 LED 7 27 Switch 8 (or GPO 8*)
9 LED 8 28 Switch 9 (or GPO 9*)
10 LED 9 29 Switch 10 (or GPO 10*)
11 LED 10 30 Switch 11 (or GPO 11*)
12 LED 11 31 Switch 12 (or GPO 12*)
13 LED 12 32 n.c.
14 n.c. 33 n.c.
15 n.c. 34 Switch 7-12 / *GPO 7-12 selection
16 n.c. 35 n.c.
17 n.c. 36
Ext. Supply f. LEDs 1-6,
5-24 V DC (S184-1 is OFF)
18
Ext. Supply f. LEDs 7-12,
5-24 V DC (S184-2 is OFF)
37 VCC (+5 V, 400 mA max.)
19 GND
