SVAN 979 User Manual
Profile 3 - Z weighting filter (Filter(3)=Z), Fast RMS detector
(Detector(3)=Fast).
Default profiles settings for Vibration measurements:
Profile 1 - HP1 weighting filter (Filter(1)=HP1); 1.0s RMS detector
(Detector(1)=1.0s);
Profile 2 - HP3 weighting filter (Filter(2)=HP3), 1.0s RMS detector
(Detector(2)=1.0s);
Profile 3 - HP10 weighting filter (Filter(3)=HP10), 1.0s RMS detector
(Detector(3)=1.0s).

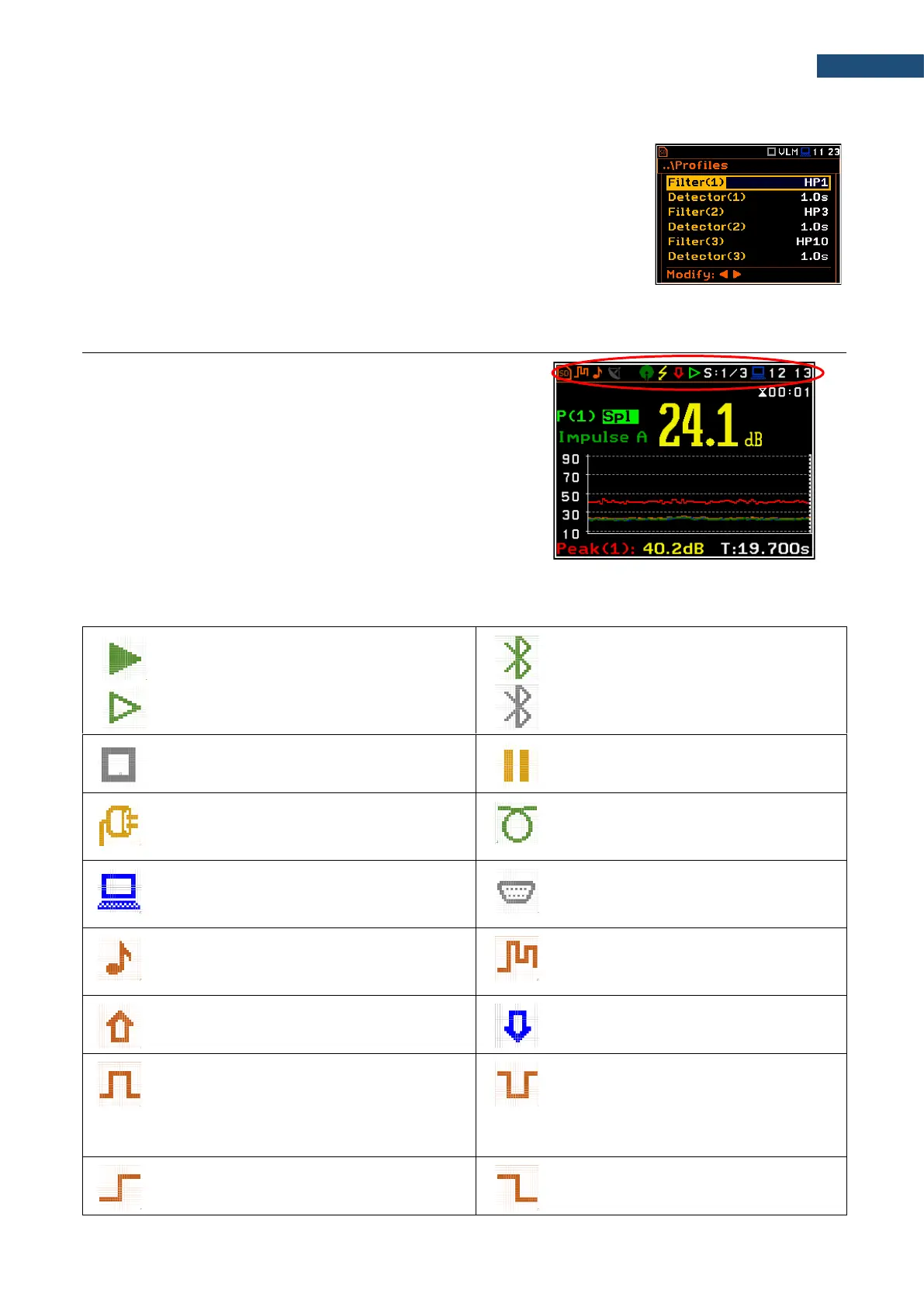

2.8 DESCRIPTION OF ICONS
Description of the instrument state
Additional information about the instrument’s state is given by
means of the row of icons visible in the top of the display.
The type of measurement function and the measurement mode
(SLM, VLM, S:1/1 etc.) as well as real time clock (RTC) is also
displayed in the same line together with icons.
Meanings of the icons are as follows:
„measurement” icon is displayed when the
measurement is running, and the icon shape
is changing from self to contoured.
“Bluetooth” icon is displayed when the
Bluetooth
®
is switched on. Colours of the
icon define the state of the connection:
green – connected, grey – disconnected.
“stop” icon is displayed when the
measurement is stopped.
“pause” icon is displayed when the
measurement is paused.
“plug” icon is displayed if an external power
is connected to the 7-16V socket.
“cable” icon is displayed when the
microphone is connected via extension
cable.
„USB” icon is displayed when there is a
successful USB connection with the PC.
“RS232” icon is displayed when the
RS232 port is activated. When the SV 55
converter is connected the icon is blue.
„wave” icon is displayed when the wave
recording is active (wave files with extension
WAV are saved automatically).
„logging” icon is presented when
current measurement results are logged
into the logger file.
„overload” icon is displayed when an
overload appears.
„underrange” icon is displayed when an
underrange appears.
“level+” icon is displayed when the “Level+”
trigger is waiting for a condition fulfilment. The
icon appears alternately with the
„measurement”, „logging” or „wave” icons.
„level-” icon is displayed when the
“Level-” trigger is waiting for a condition
fulfilment. The icon appears alternately
with the „measurement”, „logging” or
„wave” icons.
“slope+” icon is displayed when the
“Slope+” trigger is waiting for a condition
“slope–” icon is displayed when the
“Slope-” trigger is waiting for a condition
