Changing the active fields
You can change the active field with the
▲ / ▼ (vertically) or ◄ / ► (horizontally)
key.
The Logger view depends on the settings
made in the Logging list (path: <Menu> /
Measurement / Logging). If Logger is
disabled, the Logger view mode is not
active!
So, to have this view active, enable the
Logger!
When Logger is enabled, and some results
have been selected for logging the logger
plot can be viewed.

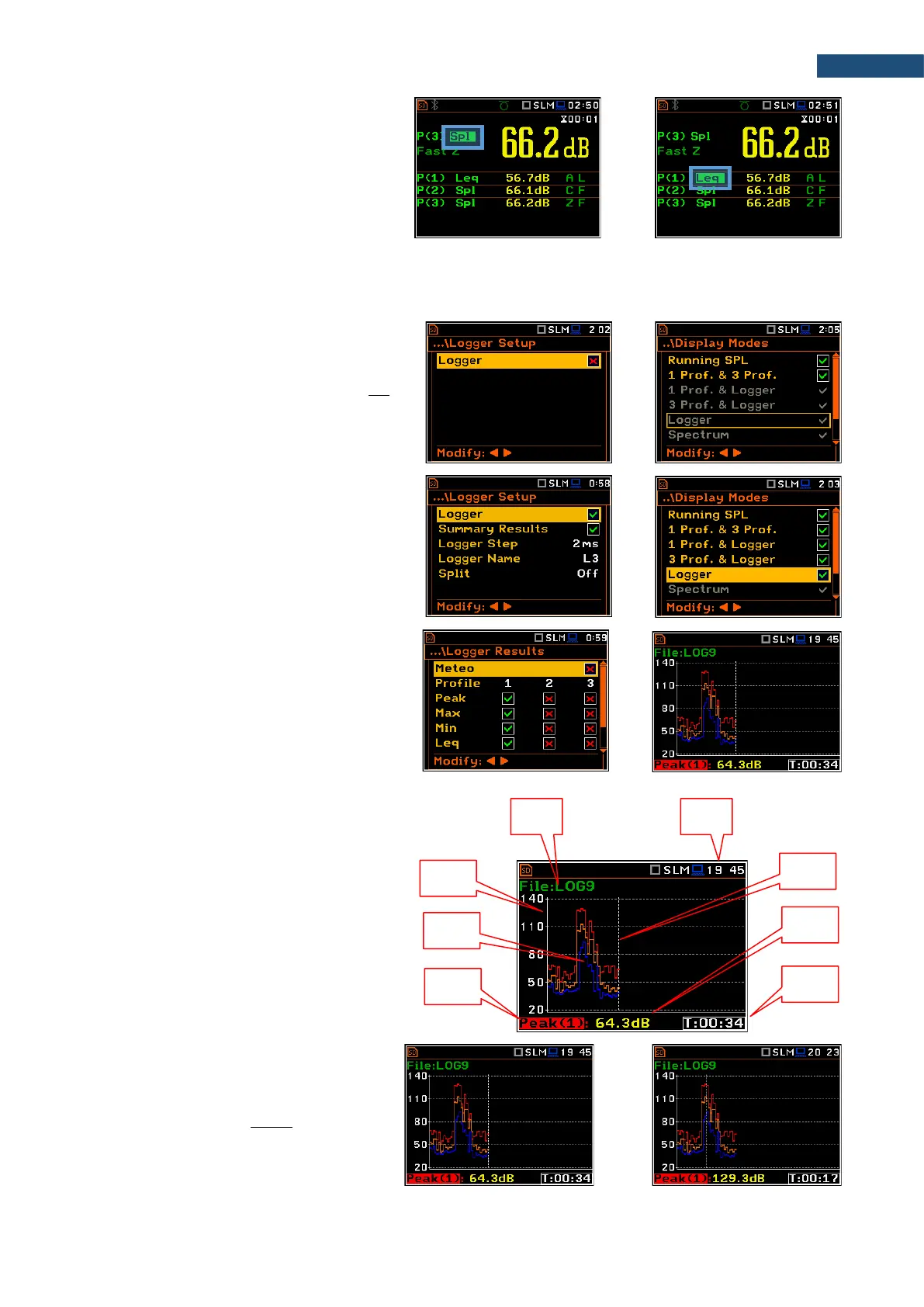

Logger view fields
1. Y-scale
2. Logger plot
3. Name of the logged result and profile
number
4. Name of the file
5. Real Time Clock
6. Cursor position
7. Result value for the cursor position
8. Cursor time position
You may change the cursor position with the
◄ / ► key.
The bottom line of the screen displays the
value of the result from field 3 for the cursor
position.
