SVAN 979 User Manual - Appendixes
C.5. MISCELLANEOUS SPECIFICATION OF SVAN 979
Display
Super contrast OLED color display (320 x 240 pixels).
Memory
32 MB flash memory and 768 kB of the RAM memory.
FLASH-disk for storing the measurement data files or setup files (ca. 49 % of the installed memory).
Memory card
Can be used typical Micro SD or Micro SDHC cards. Supported for up to 128 GB (provided that card was
formatted as FAT32).
Note: The originally supplied Kingston Industrial memory card has been tested by SVANTEK and
cards of this type are strongly recommended for use when the original card is going to be replaced.

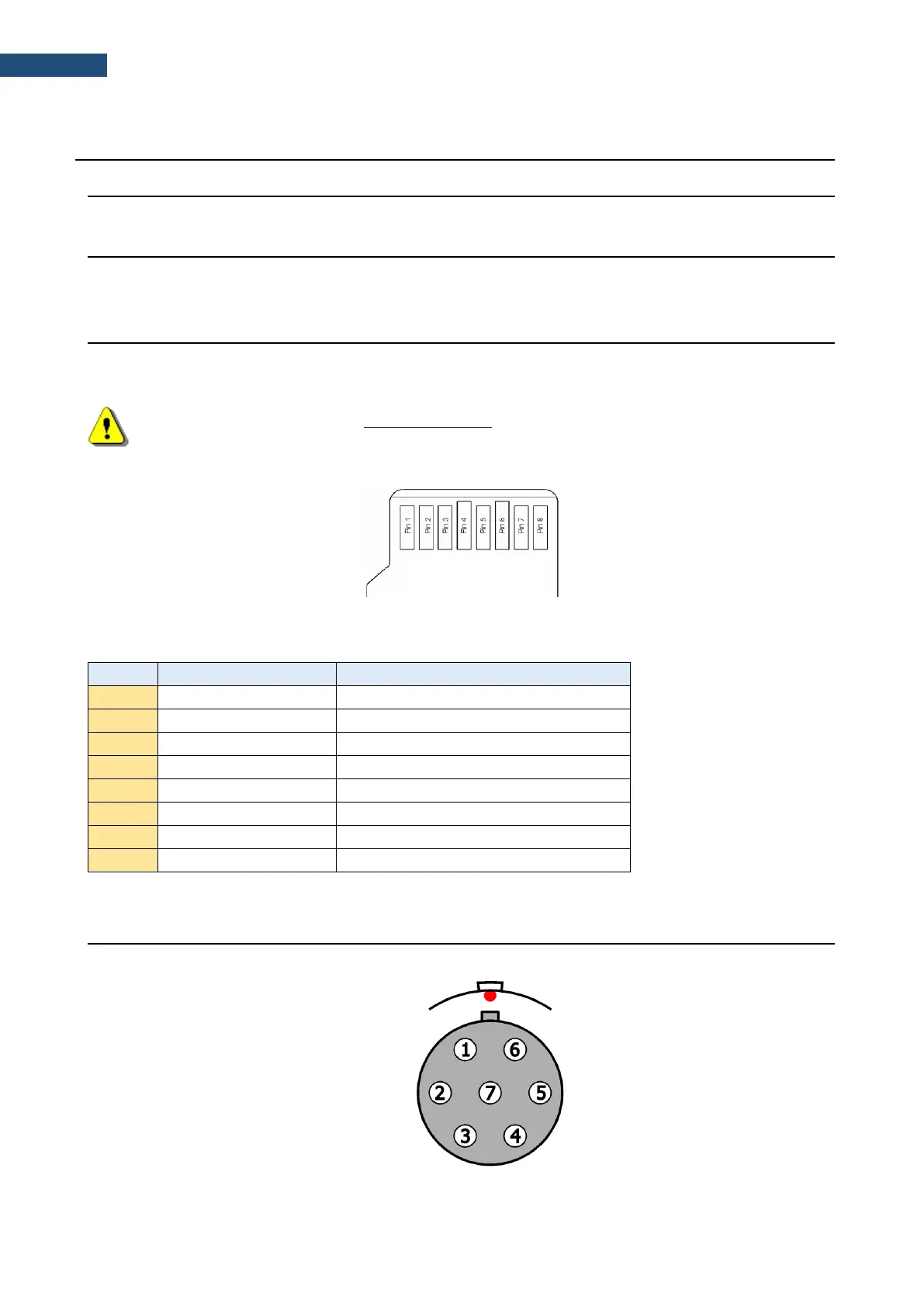

MicroSD contact pad assignment - outer view
Table C.5.1. Pin out of the MicroSD contact
Pin No.
Name
Description
1
DAT2
Data Line [Bit 2]
2
CD/DAT3
Card Detect / Data Line [Bit 3]
3
CMD
Command / Response
4
V
DD
Supply voltage
5
CLK
Clock
6
V
SS
Supply voltage ground
7
DAT0
Data Line [Bit 0]
8
DAT1
Data Line [Bit 1]
Signal input
The input of the measured signal (taken form the microphone preamplifier or the vibration transducer):
Input connector (receptacle) type of LEMO ENG.1B.307 - outer view
