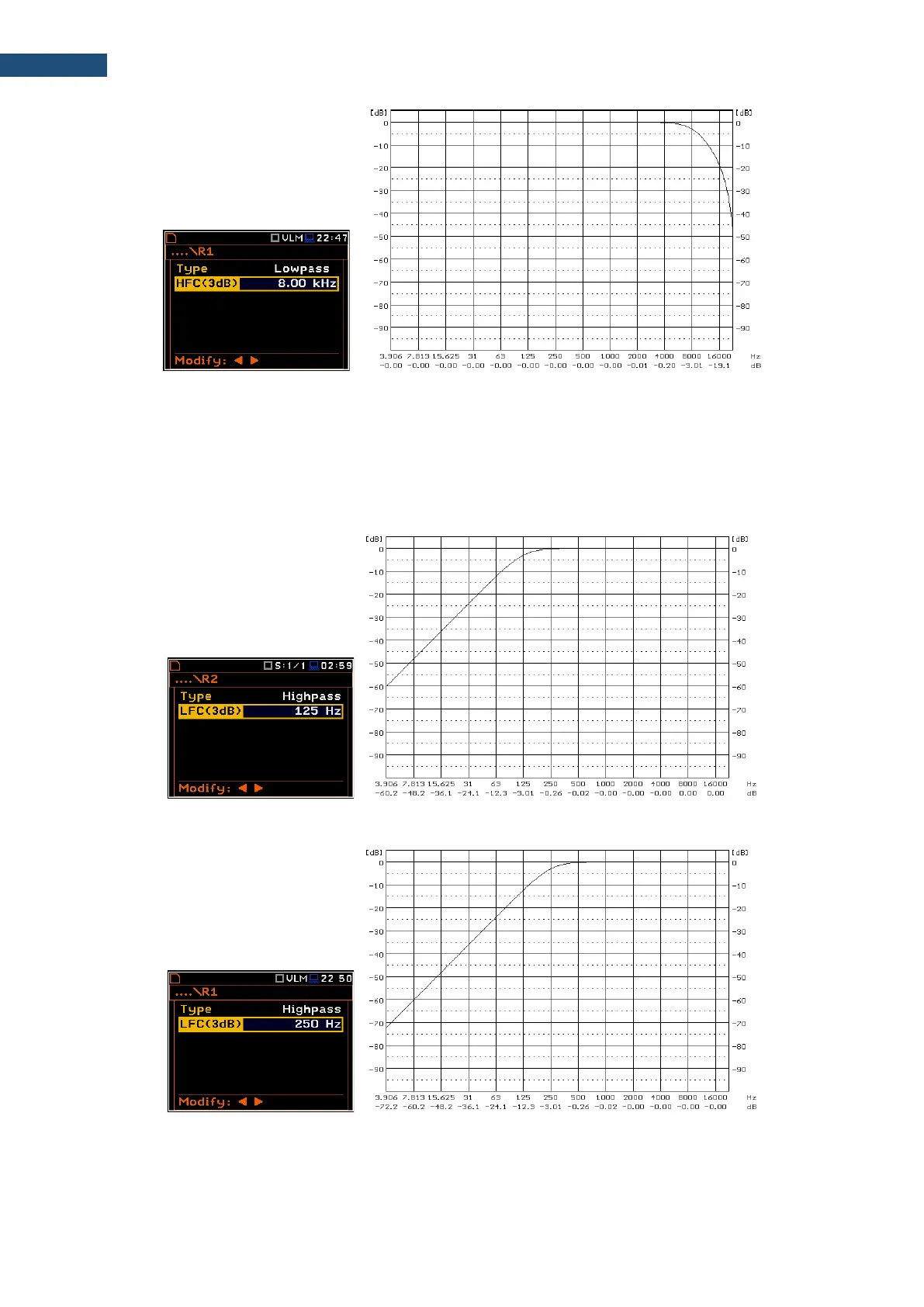

Characteristics of the Lowpass filter with the HFC (3dB) = 8.00 kHz implemented in the instrument
In the case of the high-pass filters, you should determine the LFC(3dB) parameter which denotes
the LFC (Low Frequency Corner) of the Rx filter at which the amplitude of the input signal is attenuated two
times. Available values are from 100 Hz to 10.0 kHz.
Characteristics of the Highpass filter with the LFC (3dB) = 125 Hz implemented in the instrument
Characteristics of the Highpass filter with the LFC (3dB) = 250 Hz implemented in the instrument
