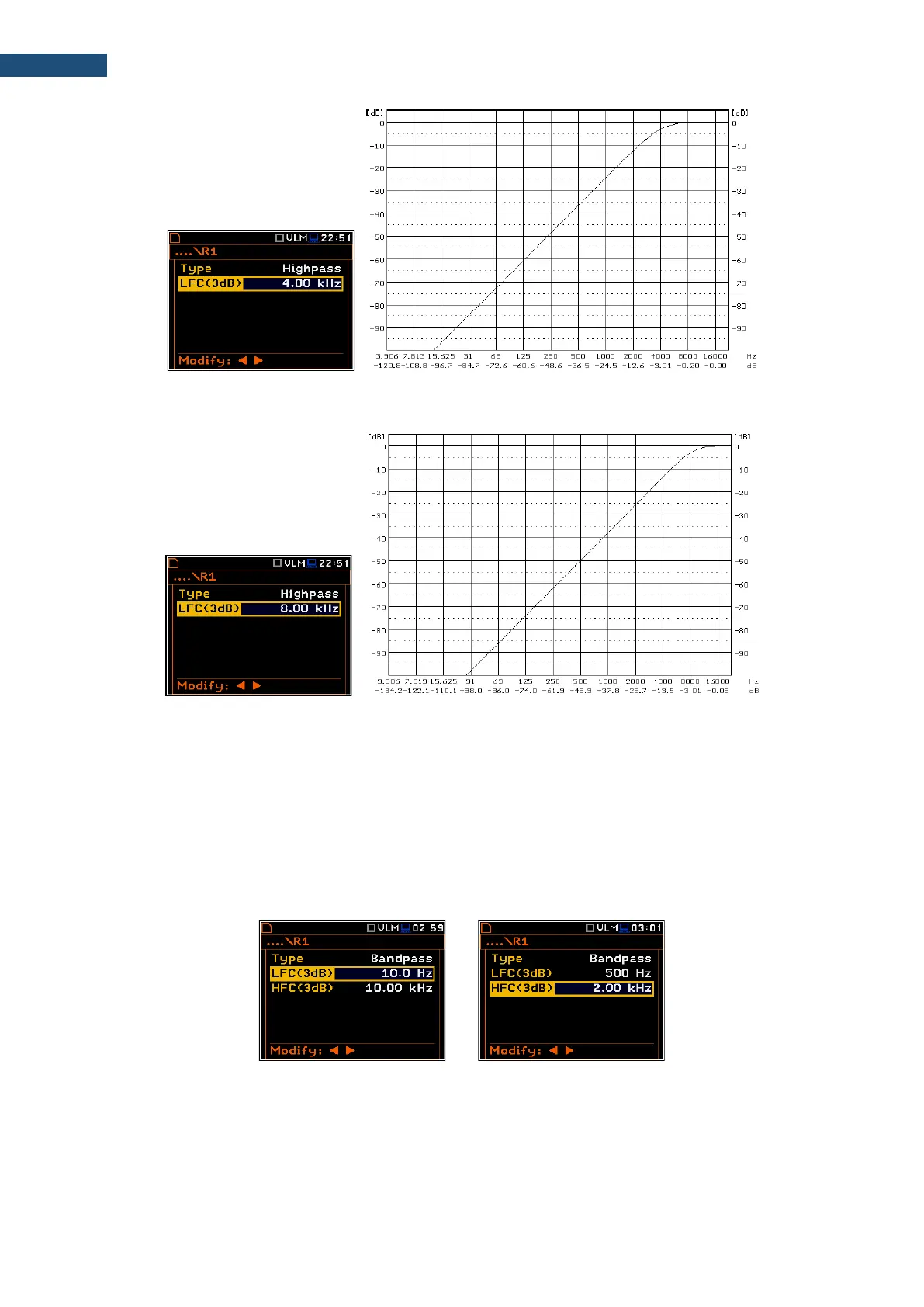

Characteristics of the Highpass filter with the LFC (3dB) = 4.00 kHz implemented in the instrument
Characteristics of the Highpass filter with the LFC (3dB) = 8.00 kHz implemented in the instrument
In the case of the Bandpass filter, you should determine both, the LFC(3dB) and
the HFC(3dB) parameters which denote frequencies of the Rx filter at which the amplitude of the input signal
is attenuated two times.
Available values of both parameters are from 100 Hz to 10.0 kHz. The Bandpass filter is implemented by the
superposition of Lowpass and Highpass filters. In order to implement a real band-pass filter, the LFC(3dB)
should be smaller than HFC(3dB). If this condition is not fulfilled the signal is attenuated in the whole frequency
band.
…
Selection of a wide and narrow Bandpass Real Time Filters
