373

SVAN 979 User Manual - Appendixes

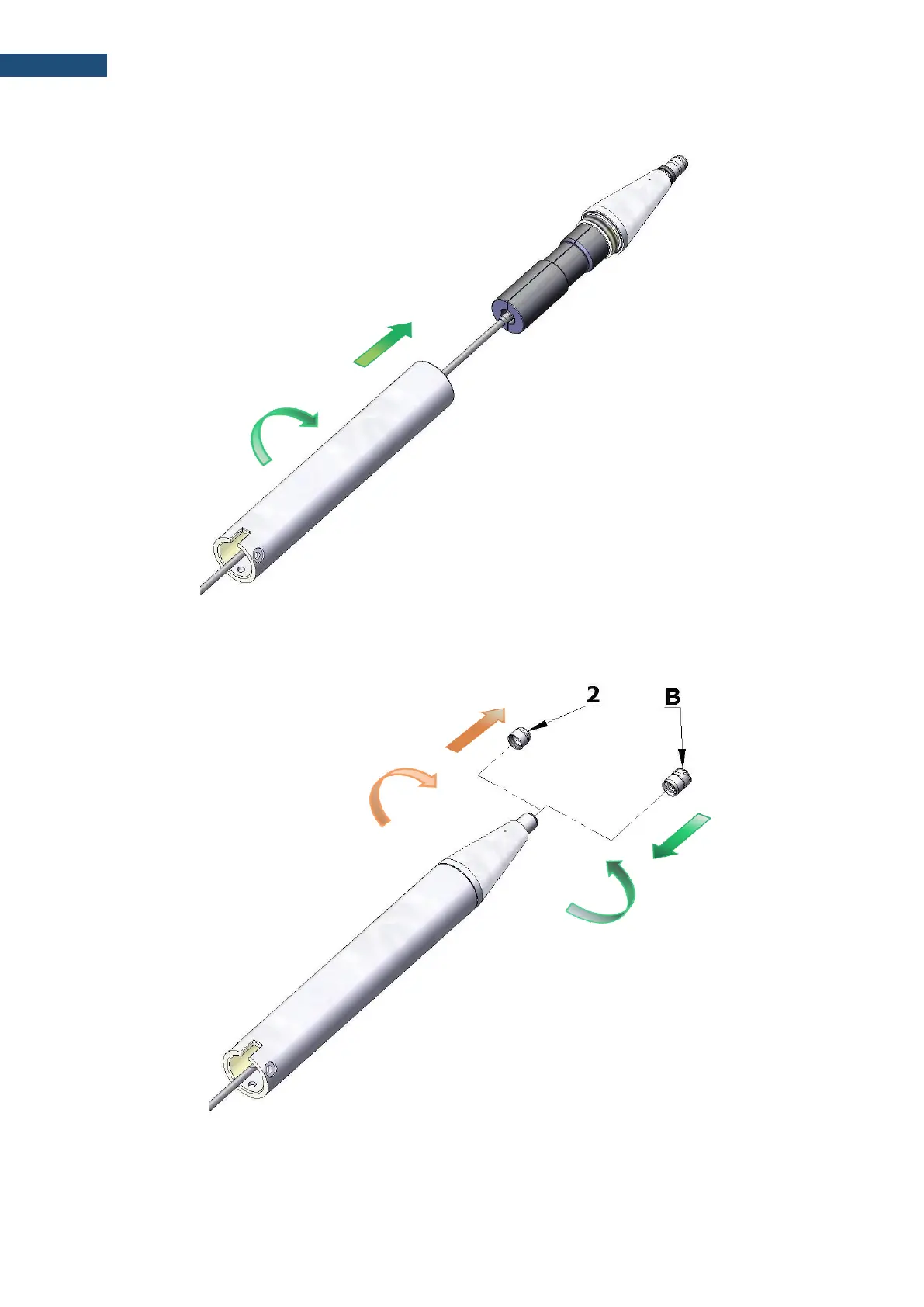

5. Screw the tube on the cone by rotating the tube – so as to not twist the cable.

6. Replace the dummy microphone (2) with the ½” microphone cartridge (B).
