FMS GENERAL DESCRIPTION
SYSTEM OVERVIEW
J43126AA 00
© THALES AVIONICS S.A.
AIRBUS A318/319/320/321
The main interfaces for crew inputs to FMGS are FCU, MCDUs and
Thrust Levers (T/L). Outputs of FMGS are monitored on the EFIS (PFD
and ND).
The FCU is the short-term (tactical) interface, and has the following
functions:
− Engagement of AP, FD, A/THR,
− Selection of guidance modes,
− Manual selection of flight parameters.

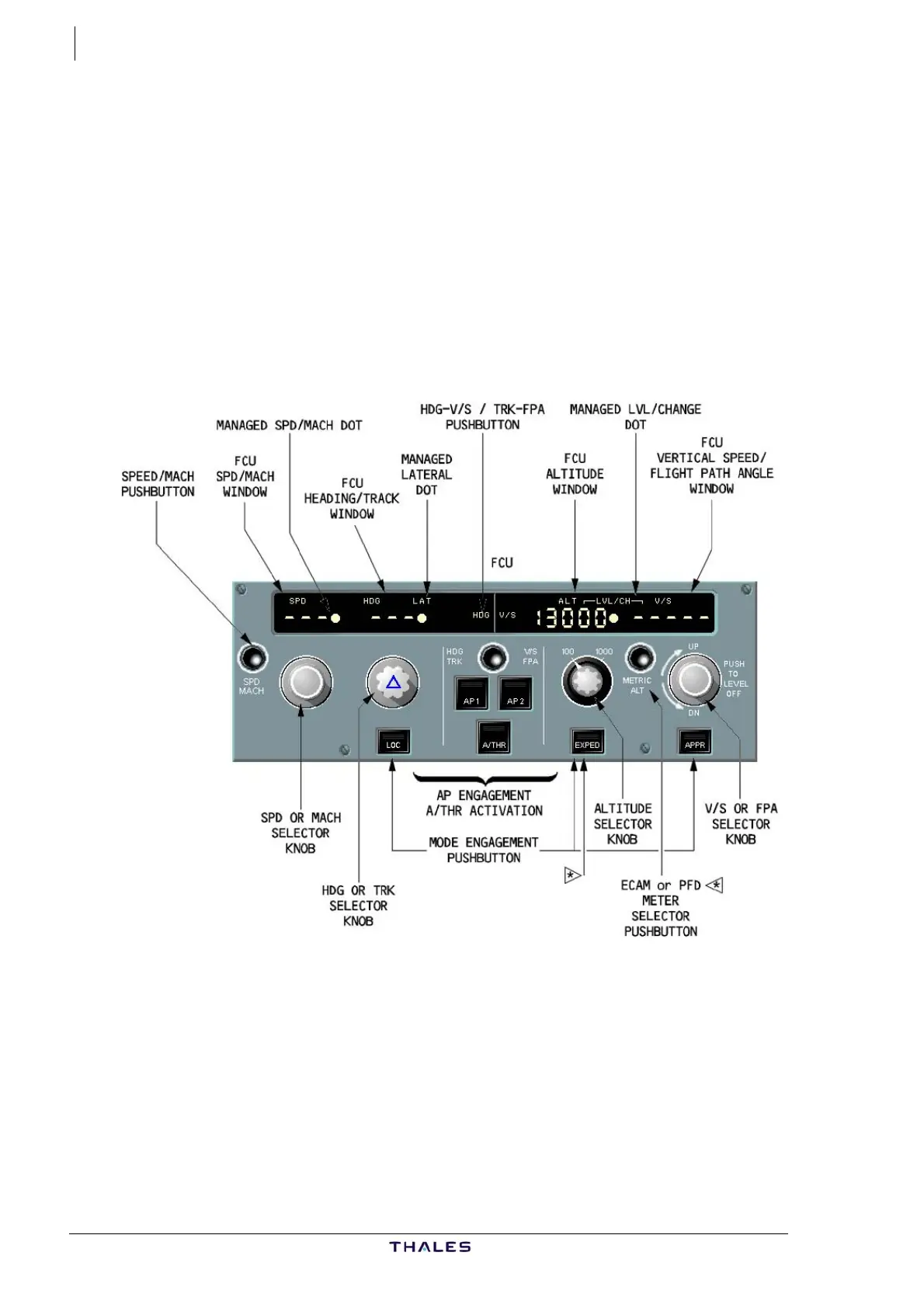

Layout of the FCU is shown below.
The MCDUs (see Fold-out at the end of the Guide) are the long-term
(strategic) interface between crew and FMGC.
Main functions of the MCDUs include:
− Insertion of initial position to align IRUs before flight,
− Creation and display of Primary, Secondary and Alternate flight plan,
− Insertion of weight, CG, fuel quantity for time and fuel predictions,
and performance optimisation,
− Insertion of take-off and approach parameters,
To Next Page
